Installation
Start-Up
Maintenance
Warranty
Model SSU-20B
For Residential and Commercial Use
This manual must only be used by a qualified installer / service technician. Read all instructions in this manual before installing.
Perform steps in the given order. Failure to do so could result in substantial property damage, severe personal injury, or death.
Improper installation, adjustment, alteration, service, or maintenance could void product warranty and cause property
damage, severe personal injury, or death.
California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer, birth
defects, or other reproductive harm.
The manufacturer reserves the right to make product changes or updates without notice and will not be held liable for
typographical errors in literature.
The following defined terms are used throughout this manual to
bring attention to the presence of hazards of various risk levels or to
important product information.
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in serious personal injury or death.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in personal injury or death.
NOTE TO CONSUMER: PLEASE KEEP ALL INSTRUCTIONS FOR FUTURE REFERENCE.
272 Duchaine Blvd.

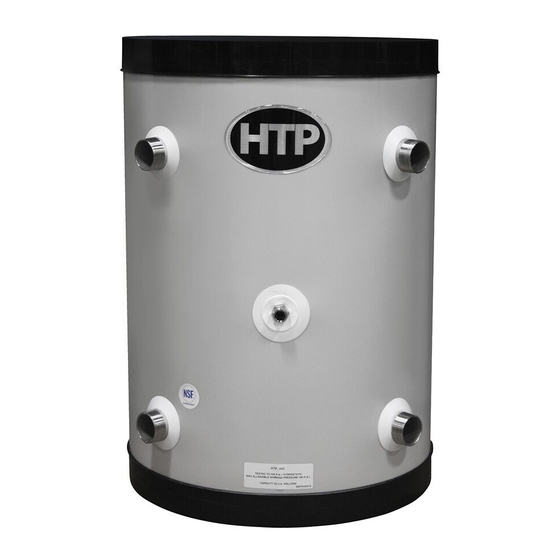

SuperStor Ultra
Stainless Steel Buffer Tank
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in moderate or minor personal injury.
CAUTION used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided, may result
in property damage.
NOTICE is used to address practices not related to personal injury.
New Bedford, MA 02745
www.htproducts.com
lp-219 Rev. 001 Rel. 000 Date 8.31.21
Advertisement
Table of Contents
Related Manuals for HTP SuperStor Ultra SSU-20B
Summary of Contents for HTP SuperStor Ultra SSU-20B
- Page 1 SuperStor Ultra Stainless Steel Buffer Tank Installation Start-Up Maintenance Warranty Model SSU-20B For Residential and Commercial Use This manual must only be used by a qualified installer / service technician. Read all instructions in this manual before installing. Perform steps in the given order. Failure to do so could result in substantial property damage, severe personal injury, or death. Improper installation, adjustment, alteration, service, or maintenance could void product warranty and cause property damage, severe personal injury, or death.
- Page 2 The installer should be guided by the instructions furnished with the DO NOT alter the buffer tank. Altering any HTP product with parts buffer tank, and by local codes and utility company requirements. not manufactured by HTP WILL INSTANTLY VOID the warranty and Installations Must Comply With: could result in property damage, personal injury, or death.
- Page 3 COLD WEATHER HANDLING - If the buffer tank has been stored in All buffer tanks eventually leak. Locate the buffer tank where any a very cold location (BELOW 0 F) before installation, handle with leakage from the relief valve, related piping, tank, or connections care until the components come to room temperature.
- Page 4 Consider piping and installation when determining heater location. Damages resulting from incorrect installation or from use of products not approved by HTP ARE NOT covered by warranty. NEVER use any toxic chemical, including automotive, standard glycol antifreeze, or ethylene glycol made for hydronic (non- potable) systems.
- Page 5 B. Applications CIRCULATOR PUMPS W/IFC MAKE-UP WATER BUFFER TANK SHUT-OFF CIRCULATOR VALVE LP-219-C PUMP W/IFC 08/21/18 Figure 3 - Buffer Tank in Space Heating Application Only HOT WATER COLD WATER INLET OUTLET PRESSURE DIFFERENTIAL BYPASS VALVE CIRCULATOR PUMPS W/IFC INDIRECT WATER HEATER MAKE-UP...
- Page 6 3. Service trips to teach the Owner how to install, use, maintain, or to HTP warrants each buffer tank to be free from defects in materials bring the buffer tank installation into compliance with local building and workmanship according to the following terms, conditions, codes and regulations.
- Page 7 HTP Warranty Supervisor approval. During the claims process a product that must be replaced will be given a designation of either a) field scrap, or b) return to HTP. If the product must be returned to HTP, the returned product must arrive at HTP within thirty (30) days of the date of our request to return the product.
- Page 8 Customer Installation Record Form The following form should be completed by the installer for you to keep as a record of the installation in case of a warranty claim. After reading the important notes at the bottom of the page, please also sign this document. Customer’s Name Date of Installation Installation Address...
