- Page 1 TR - SERIES TOWEL RAILS ver. 2021-4...

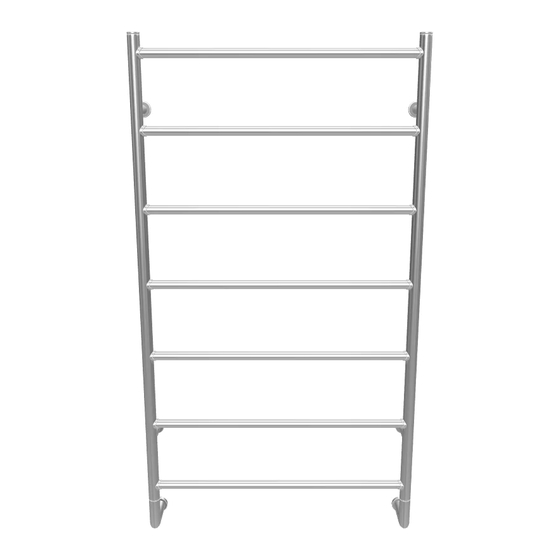

- Page 2 Hydrotherm heated towel rails the ultimate bathroom accessory. The TR series perfects simplistic design and practicality. The evenly spaced rails make the TR Series ideal for drying towels. Its generous gaps allow bulky fabrics to be draped over with ease.
-
Page 3: Specifications
100 Watts 150 Watts 700mm TR1/700 700mm 740mm 100 Watts 200 Watts 700mm TR1/800 700mm 800mm 840mm 150 Watts 200 Watts 10 YEAR 3 YEAR PROUDLY AUSTRALIAN CONSTRUCTION & FINISH ELECTRIC ELEMENT MADE AND OWNED MANUFACTURERS WARRANTY MANUFACTURERS WARRANTY www.hydrotherm.com.au... - Page 4 100 Watts 150 Watts 1020mm TR2/700 700mm 740mm 150 Watts 200 Watts 1020mm TR2/800 1020mm 800mm 840mm 150 Watts 200 Watts 10 YEAR 3 YEAR PROUDLY AUSTRALIAN CONSTRUCTION & FINISH ELECTRIC ELEMENT MADE AND OWNED MANUFACTURERS WARRANTY MANUFACTURERS WARRANTY www.hydrotherm.com.au...
- Page 5 150 Watts 200 Watts 1500mm TR3/700 700mm 740mm 200 Watts 200 Watts 1500mm TR3/800 1500mm 800mm 840mm 200 Watts 250 Watts 10 YEAR 3 YEAR PROUDLY AUSTRALIAN CONSTRUCTION & FINISH ELECTRIC ELEMENT MADE AND OWNED MANUFACTURERS WARRANTY MANUFACTURERS WARRANTY www.hydrotherm.com.au...
-
Page 6: Installing Brackets
BOTTOM OF THE UNIT FOR CORRECT HEAT TRANSFER Hydrotherm take pride in the fact that all rails are individually hand made. Due to this fact some measurements may not be exact. PLEASE READ INSTRUCTIONS CAREFULLY and do not force towel rail into bracket if position of wall flange is not accurate. -
Page 7: Wiring Options
Perfects minimalist design and practicality. WIRING OPTIONS The Hydrotherm TR - Series Electric Towel rails come pre-filled with water, and with electric elements already fitted (standard on the left unless otherwise specified). Refer Hard Wire Attachment HARD WIRED VERSION PLUG IN VERSION The cable may be hard-wired into the wall with an element Plug is supplied separately with element cable (1200mm long). - Page 8 Turn the towel rail the right way up, position back into brackets and refit grub screws to secure. Please note: Hydrotherm advise that the unit be removed from the wall and turned upside down to ensure that water does not spill. Ensure element always remains at bottom of towel rail.
-
Page 9: Installation
Simply wiping and drying with a soft cloth will maintain the finish. Never use abrasives of any nature as these will scratch and wear the coating. Follow guidelines as set out above. ANTIQUE FINISHES: Refer to specific guidelines. www.hydrotherm.com.au... - Page 10 ELECTRIC MODEL Electric connection must be installed by a qualified electrician. All Hydrotherm Towel Rails carry an IPX5 rating for use in wet areas. If the electrical cable is damaged, the entire element must be replaced. When connecting, element must be positioned at the bottom of the towel rail.
