Denon RCD-M39 Service Manual

Hide thumbs Also See for RCD-M39:
Table of Contents

Advertisement

Quick Links

e
MODEL
RCD-M39
RCD-M39DAB
• For purposes of improvement, specifications and design are subject to change without notice.
• Please use this service manual with referring to the operating instructions without fail.
• Some illustrations using in this service manual are slightly different from the actual set.
S1170V11DM/DG1512
All manuals and user guides at all-guides.com

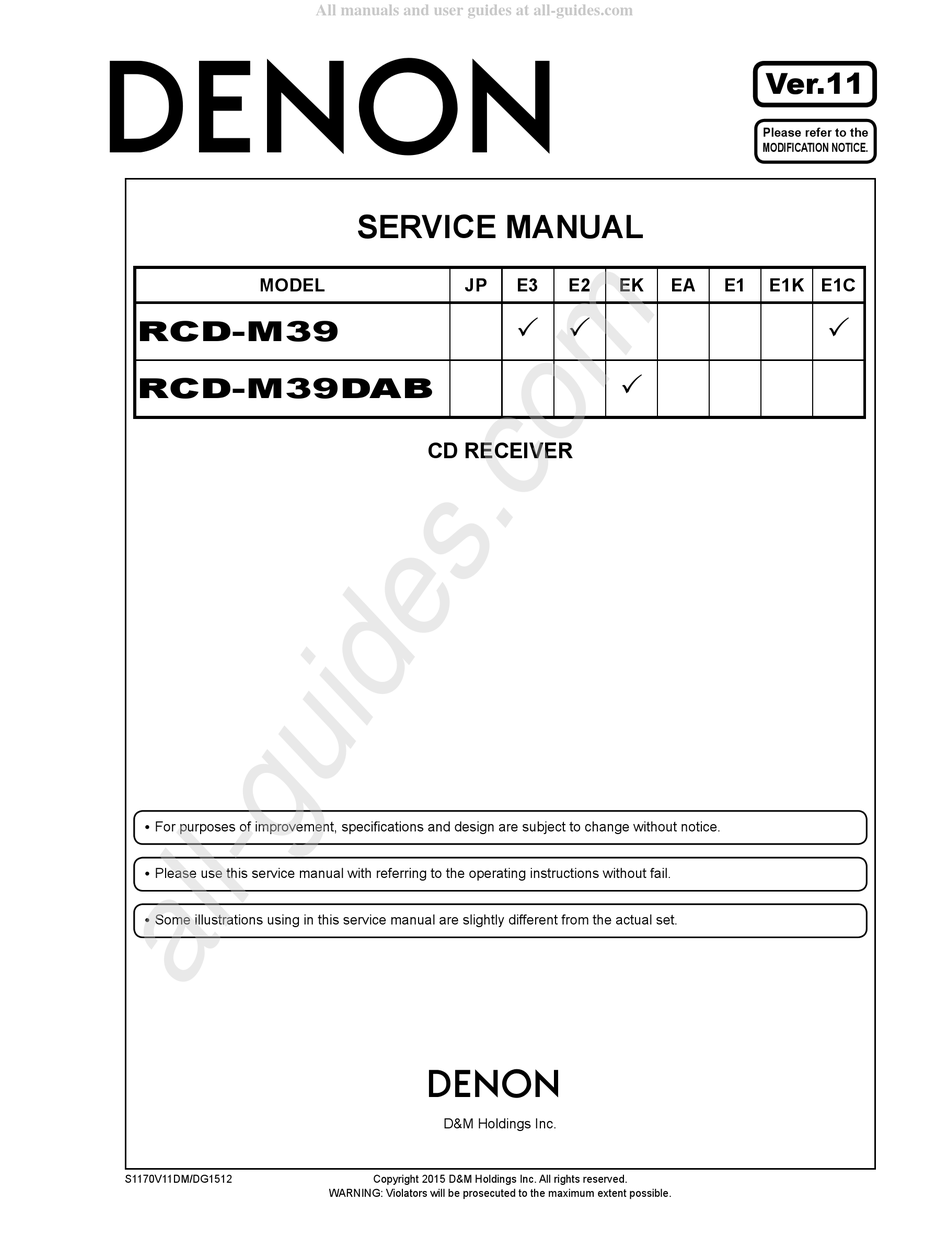

SERVICE MANUAL
JP
CD RECEIVER
e
D&M Holdings Inc.
Copyright 2015 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
E3
E2
EK
EA
P P
P
Ver.11
Please refer to the
MODIFICATION NOTICE.
E1
E1K E1C
P
