overstock FULL BED Assembly Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
1915F(3A) FULL BED
A
HEADBOARD PANEL
1PC
E
SUPPORT POST
3PCS
I
JCBB M8 x 50mm
8PCS
M
JCBC M6 x 90mm
3PCS
Q
Flat washer m6
16PCS
U
L/BRACKET
2PCS
ASSEMBLY INSTRUCTION
B
FOOTBOARD PANEL
1PC
F
BED POST
4PCS
J
JCBB M8 x 25mm
8PCS
N
Spring washer m8
16PCS
R
M4 Allen Key
1PC
V
M6X13 B/ NUT
3PCS
C
SIDE RAILS
2PCS
G
BED POST SUPPORT
4PCS
K
JCBC M6 x 50mm
28PCS
O
Flat washer m8
16PCS
S
M5 Allen Key
1PC
W
CSK M4X32
18PCS

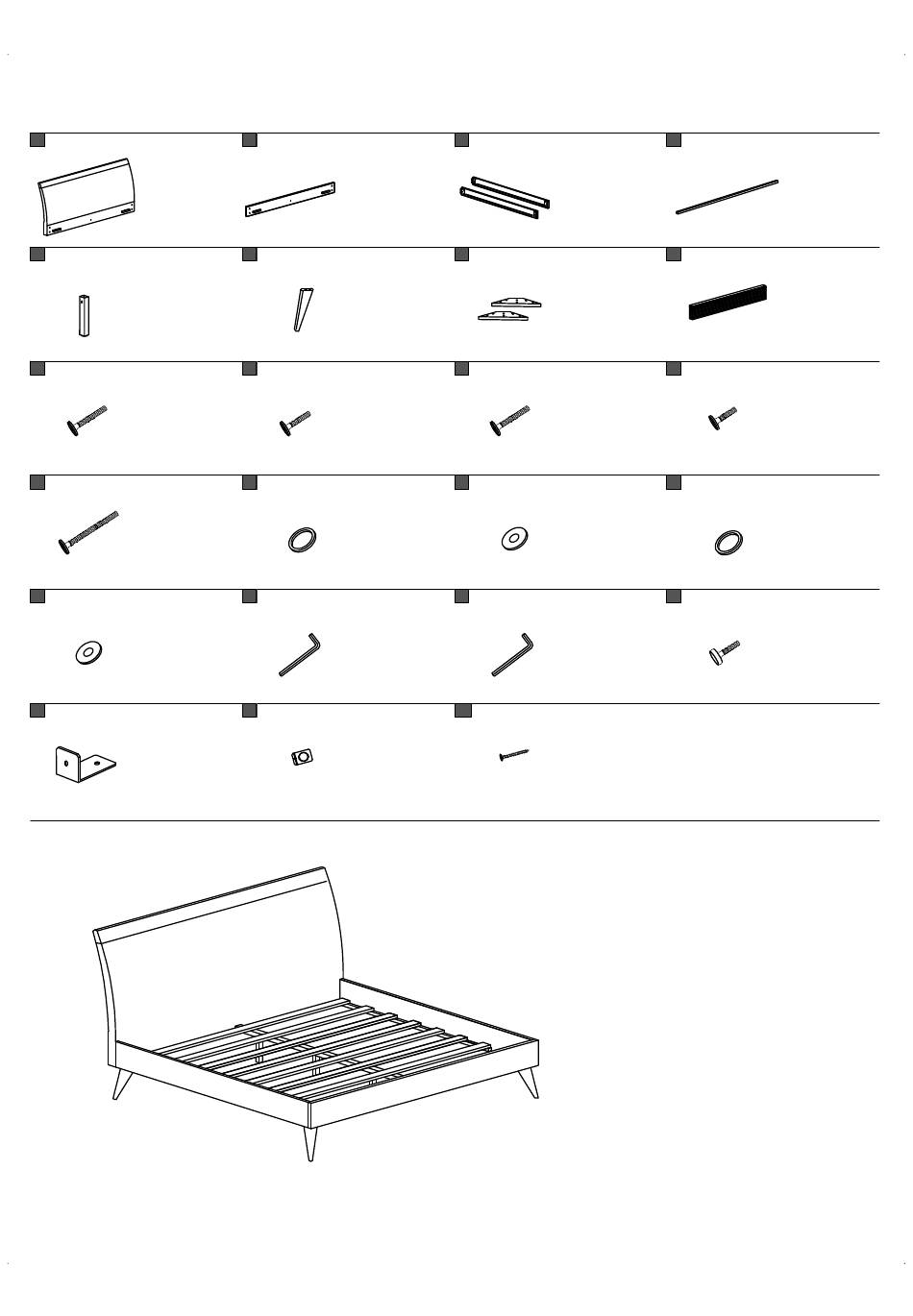

This page lists all the contents included in the box. Please
take the time to identify the hardware as well as the
individual components to this product. As you unpack and
prepare for assembly, place the contents on the carpeted
or padded area to protect them from damage.
1 1 1
D
CENTER SUPPORT
1PC
H
BED SLATS
1SET (13PCS)
L
JCBC M6 x 15mm
4PCS
P
Spring washer m6
16PCS
T
ADJUSTER M6
3PCS
