ASSEMBLY INSTRUCTION

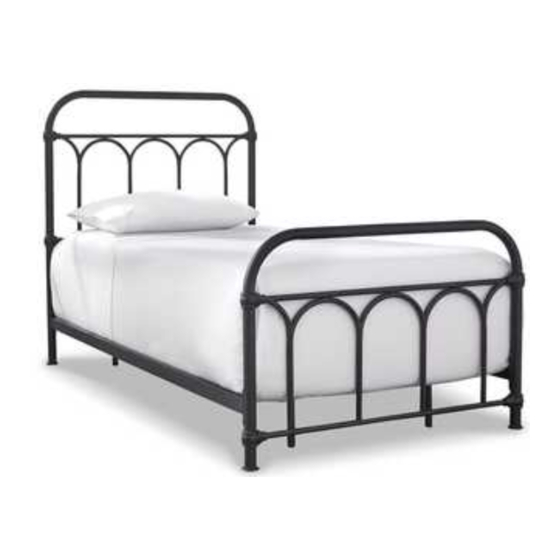

308BF(3A) METAL FULL BED

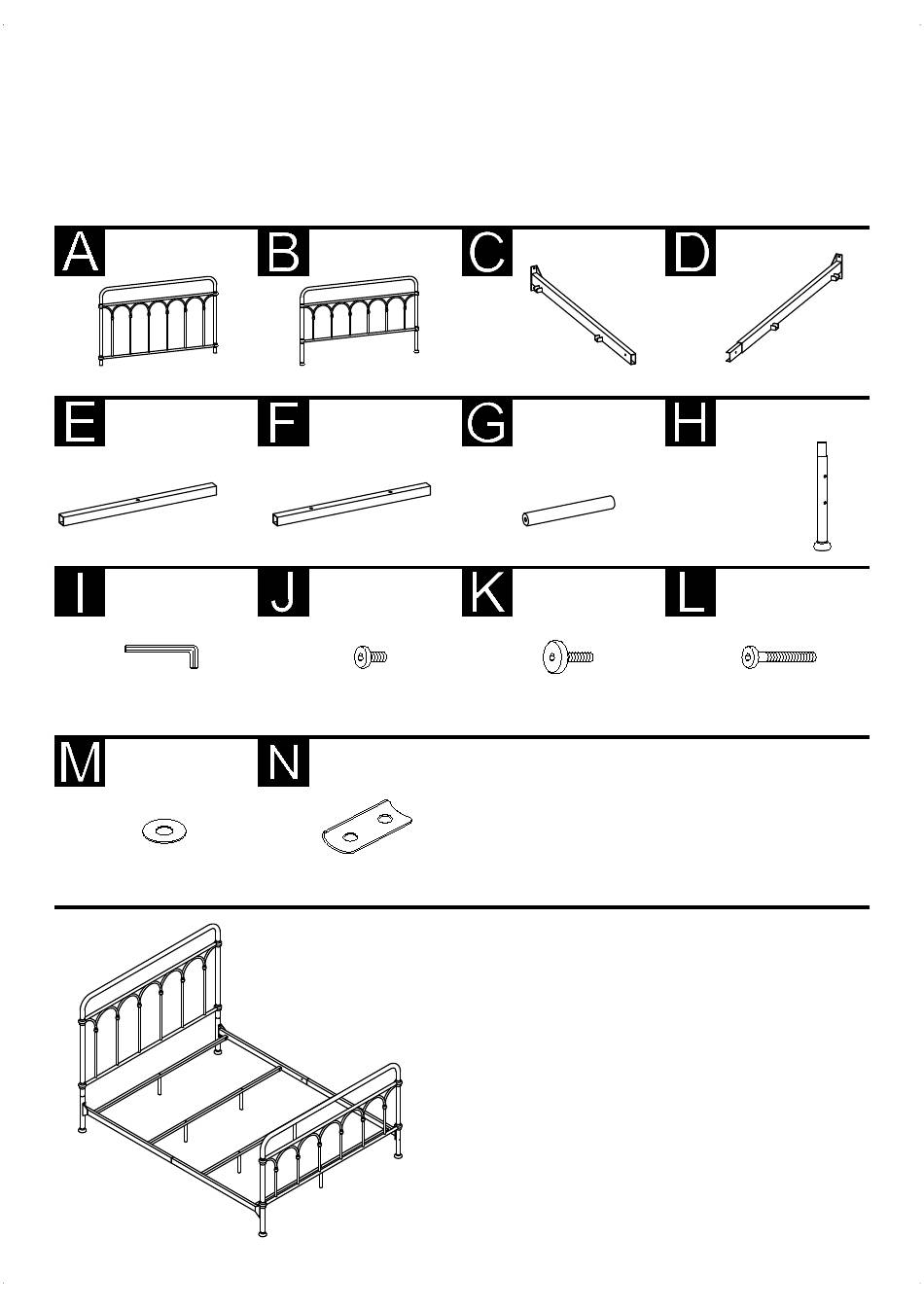

Headboard
1 pc
Slat
2 pcs
Allen wrench
1 pc
Flat washer
28 pcs
Footboard
1 pc
Slat
2 pcs
Bolt
1/4" X 15 mm
18 pcs
Connecting plate
2 pcs
This page lists all the contents included in the box.
Please take the time to identify the hardware as well
as the individual components to this product. As you
unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from
damage.
1
Side rail
2 pcs
Support leg
6 pcs
Bolt
1/4" X 18 mm
8 pcs
Side rail
2 pcs
Extension leg
2 pcs
Bolt
1/4" X 44 mm
6 pcs
