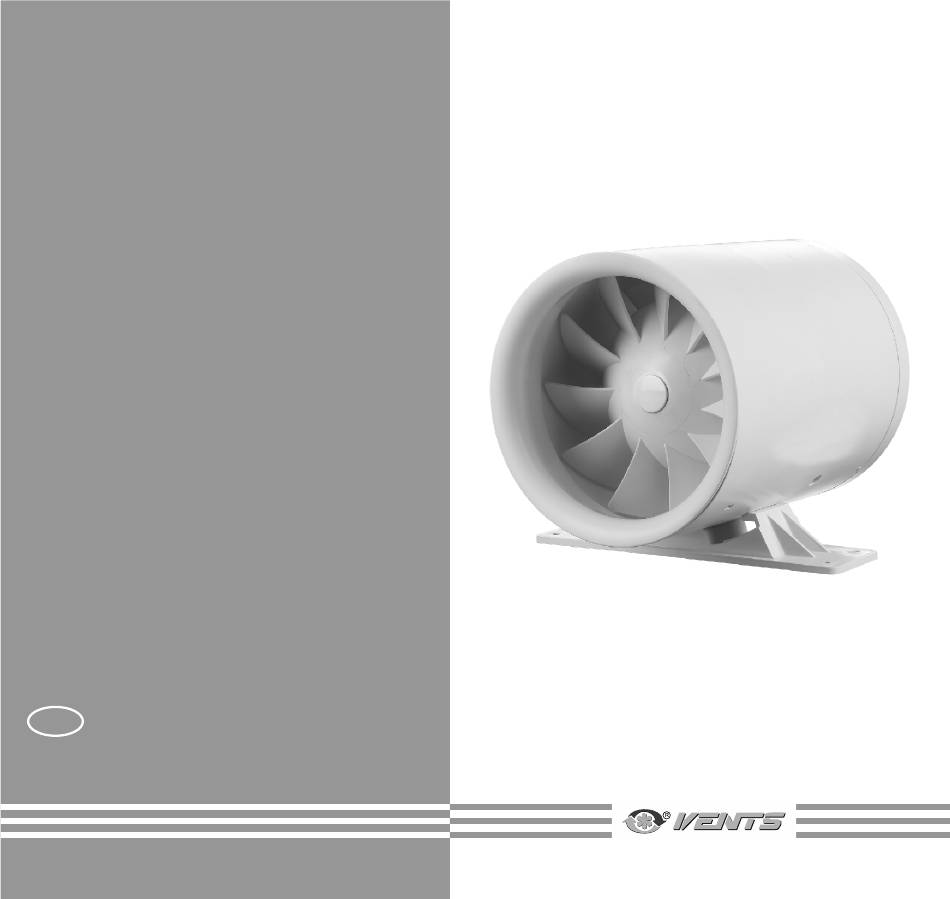

- Page 1 AXIAL FANS VENTS Quietline user's manual www.ventilation-system.com...
- Page 2 Follow the user's manual requirements to ensure durable and trouble-free operation of the fan. WARNING Disconnect the fan from power supply prior to any connection, servicing and repair operations. Only duly qualified electricians with valid electrical permit for electric operations at the units with operating voltage up to 1000 V are allowed for mounting and maintenance after careful study of the present user's manual.
- Page 3 Follow the user's manual requirements to ensure durable and trouble-free operation of the fan. WARNING While mounting the fan do not compress the casing! Deformation of the casing may result in the motor jam and noisy operation. Misuse of the fan and any unauthorised modifications are not allowed. Take steps to prevent ingress of smoke, carbon monoxide and other combustion products into the room through open chimney flues or other fire-protection devices.
- Page 4 Do not use the fan in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the fan intake or extract vents in order to ensure the efficient stream. Do not sit on the fan and do not put objects on it.
- Page 5 Follow the user's manual requirements to ensure durable and trouble-free operation of the fan. WARNING The product is allowed to be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided that they have been given supervision or instruction regarding a safe use of the product and understand the risks involved.
-
Page 6: Delivery Set
Read the user's manual carefully before proceeding with installation works. Compliance with the manual requirements ensures reliable operation and long service life of the product. Keep the user's manual available as long as you use the product. You may need to re-read the information on the product servicing. DELIVERY SET 1. -
Page 7: Electronic Control Logic
Wiring options are shown in Fig. 13-16. ELECTRONIC CONTROL LOGIC Quietline 100/125/150 T starts operation as the external switch supplies a control signal to the LT input terminal, for instance, during switching the light on. After the control signal is off the fan continues operating for the set time as adjusted from 2 to 30 min and then stops. -
Page 8: Timer Adjustment
TIMER ADJUSTMENT 100/125/150 Quietline T (Fig. 17) To adjust the fan turn-off delay time, rotate the control knob Toff clockwise to increase and counter-clockwise to decrease the turn-off delay time respectively, adjustable from 2 up to 30 minutes. 100/125/150 Quietline T DUO / 150 Quietline Extra T (Fig. 18) Operation modes 1, 2 and 3 To adjust the fan turn-on delay time or the speed switch time for the operation mode 3, rotate the control knob Ton clockwise to increase and counter-clockwise to decrease the turn-on delay time respectively, adjustable from... -
Page 9: Transportation And Storage Rules
TRANSPORTATION AND STORAGE RULES Transportation with any transportation vehicle in the manufacturer's original package. Store the delivered product in the manufacturer's original packing box in a dry ventilated premise with the temperature from +5 °C up to + 40 °C and relative humidity below 80%. The storage environment must not contain dust, acid or alkali vapours that may cause corrosion of the product parts. - Page 10 The manufacturer's warranty does not apply to the following cases: User's failure to submit the fan with the entire delivery package as stated in the user's manual including submission with missing component parts previously dismounted by the user. Mismatch of the fan model and the brand name with the information stated on the fan packing and in the user's manual. User's failure to ensure timely technical maintenance of the fan.
- Page 11 DIMENSIONS øD Model øD – – – Quietline 100 Quietline-k 100 – – – Quietline 125 Quietline-k 125 Quietline 150 – – – Quietline-k 150...
- Page 14 Wiring diagrams 100/125/150 Quietline 100/125/150 Quietline DUO / 150 Quietline Extra speed 2 - speed 2 3 - speed 1 100/125/150 Quietline Т 100/125/150 Quietline Т DUO / 150 Quietline Extra Т...
- Page 15 100/125/150 Quietline T 2 min 30 min 100/125/150 Quietline T DUO / 150 Quietline Extra T off & HS time 2 min 30 min 0 min 1 hour 2 min 15 hour...
-
Page 16: Acceptance Certificate
ACCEPTANCE CERTIFICATE Approval mark The fan is recognized as serviceable. Manufacturing date Quietline Quietline Extra К Т Sold (name and stamp of the seller) Quietline-k Quietline-k Extra Sales date V01-(Quietline)EN-02 www.ventilation-system.com...
