CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (ON BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage"...
Page 3

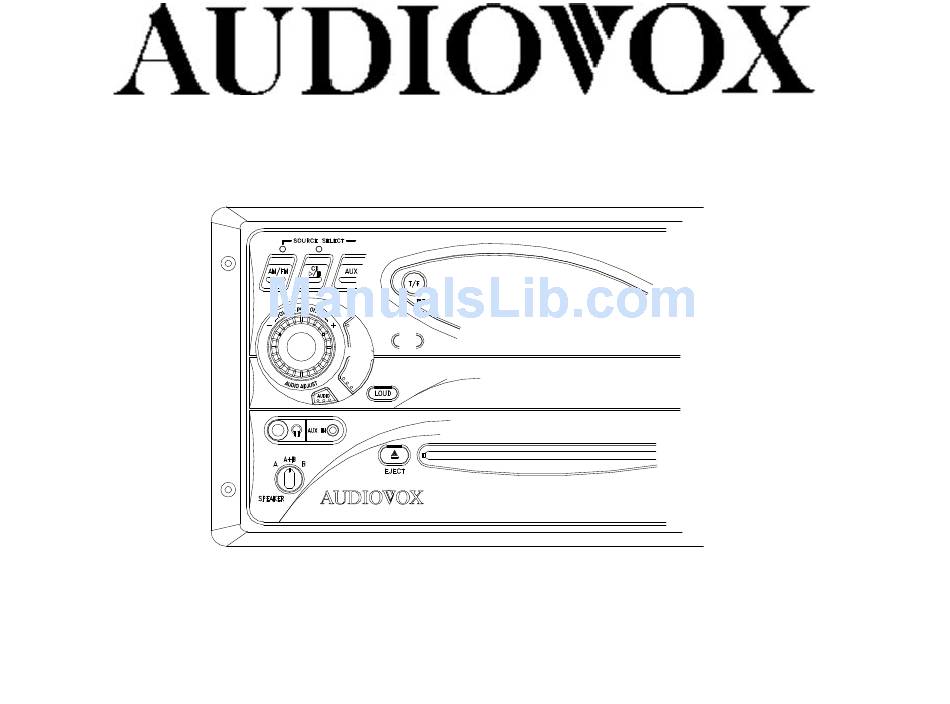

Alarm Set / Alarm On/Off Buttons Button Reset Preset / Repeat Button Preset / Shuffle Button Preset / Scan Button Preset Buttons CD Player CD Eject Button Speaker Selector 1/8” Auxiliary Input Jack Stereo Headphone Jack Audio Adjust Button Power Switch with Volume Control...
1) Cut mounting hole in desired location using mounting hole diagram (right) 2) Route power, speaker, and antenna cables through hole, and connect to unit as shown in hook up diagram below. 3) After making sure connections are correct, test unit operation as described in the operation section (Do not mount until AM antenna trimmer adjustment has been made.
4) Press the CD Eject button (13) to eject any CD’s that may already be in the player. 5) Insert an audio CD into the CD player (12). 6) Press the CD Play / Pause button (the same as the CD Source Select button).
Page 6
The SHF button (9) randomly shuffles the tracks. The SCN button (10) scans the first 5 seconds of each track. Note: Power can be turned on by pushing any button on the front of the AWM930. AUXILIARY INPUT 1) Push Power Switch (18) “on”.
Page 7
USING THE AUDIO ADJUST BUTTON 1) You can toggle between volume, treble, bass, and balance control by pressing the Audio Adjust button (17). Once at the desired function, you can use the volume knob to adjust. SETTING THE ALARM 1) Hold the Alarm Set button (6). 2) Use the H and M buttons (1 and 2) to adjust hours and minutes.
Size: Operating Voltage: Output Power: Output Wiring: Output Impedance: Tuning Range: Sensitivity: FM Stereo Separation: CD Frequency response: CD Channel Separation: CD S/N Ratio: CD Distortion: *Designs and Specifications may change without notice SPECIFICATIONS Overall Size 10.43” (W) x 7” (H) x 6.25” (D) 265mm (W) x 178mm (H) x 159mm (D) Mounting Size 9.25”...
HP-375 Studio Quality Headphones Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available through ASA. To order any of these products, please contact Audiovox Specialized Applications at www.asaelectronics.com...
Page 10
23319 Cooper Drive Elkhart, IN 46514 (219) 264-3135 FAX (219) 264-3007...
