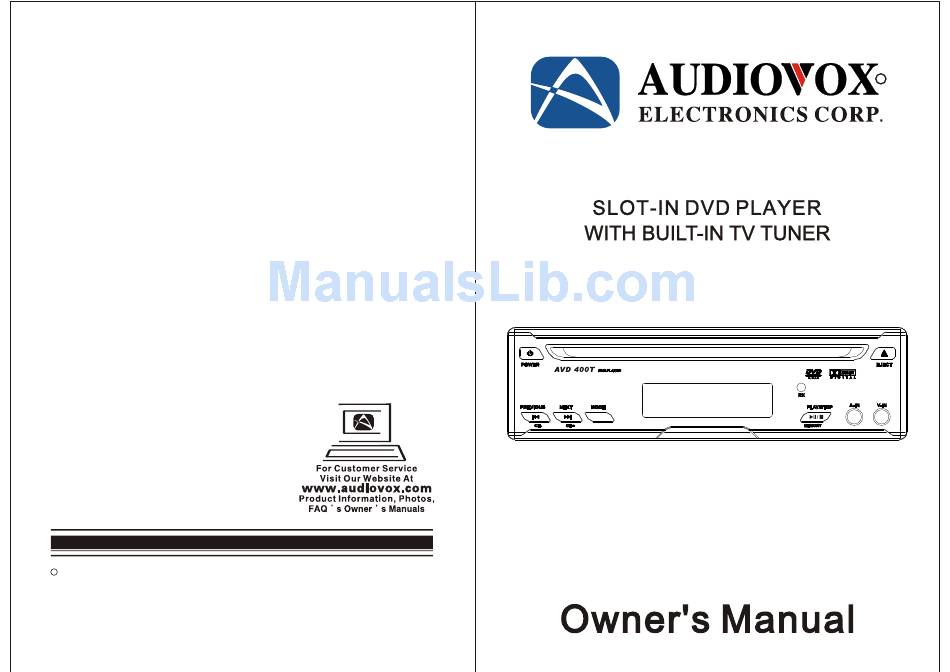

- Page 1 AVD 400T AVD 400T 2004 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y.11788 128 - 7109...
-
Page 3: Explanation Of Graphic Symbols
3 lbs (1.6 kg) A . Welcome Thank you for choosing the AVD400T DVD Player . The AVD400T is designed to optimize the enjoyment of your favorite DVDs in the mo- bile environment. This DVD Player is constructed to provide years of reliable, trouble-free service. -
Page 4: Important Notice
IMPORTANT NOTICE An LCD panel and/or video monitor may be installed in a motor vehicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in"park"... - Page 5 When the temperature rises dramatically from a very low temperature, moisture may condense inside the AVD400T and cause the DVD player to malfunction. If the AVD400T does not operate properly under these conditions leave the AVD400T turned on for at least 30 minutes for the moisture to evaporate.
- Page 6 C. Contents 1. 1 Main Unit 2. 1 Remote control with one Battery (CR2025) 3. 1 12VDC Power Harness 4. 2 Brackets with 4 Screws 5. 1 Remote IR Receiver 6. 1 AV cable (RCA to RCA) 7. 1 AV cable (1/8 to RCA) 8.
- Page 7 b. Select TV System using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the TV System you desire using the UP/ DOWN buttons, then press ENTER to confirm the setting. Language Video Audio Rating TV Shape Wide TV System NTSC NTSC...
- Page 8 F. Connections 12DC Remote control IN/OUT receiver S-video out TV ANTENNA Digital Out (GND)Black (ACC+)Red Figure 3 1. Powering your DVD Player ( Refer to Figure 3) Connect the black wire (-) to the vehicle ground. Connect the red wire (+) to a switched (Accessory) 12VDC source. Plug the other end into the 12VDC input jack on the back of the unit.
- Page 9 b. Select Subtitle using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the Subtitle using the UP/DOWN buttons, then press ENTER to confirm the setting. Language Video Audio Rating OSD Menu English English Subtitle English Chinese Audio English French DVD Menu...
- Page 10 2. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. Contents of the menu will vary depending on the disc content. Press MENU during playback to display the main menu.
- Page 11 USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: Repeat Single (repeat playback of a song) Repeat All (repeat playback of the entire folder) Off (normal playback) Pressing REPEAT a 3rd time will resume normal playback. As you toggle through the options, the repeat option changes.
-
Page 12: Playing Audio Cds
Repeat Chapter Repeat Display During playback press Repeat once to repeatedly play the current chapter, press a 2nd time to repeat the current title, press a 3rd time and the repeat function is cancelled and normal playback resumes. Repeat mode sequence : Repeat Chapter/Repeat Title/Off. 9.
