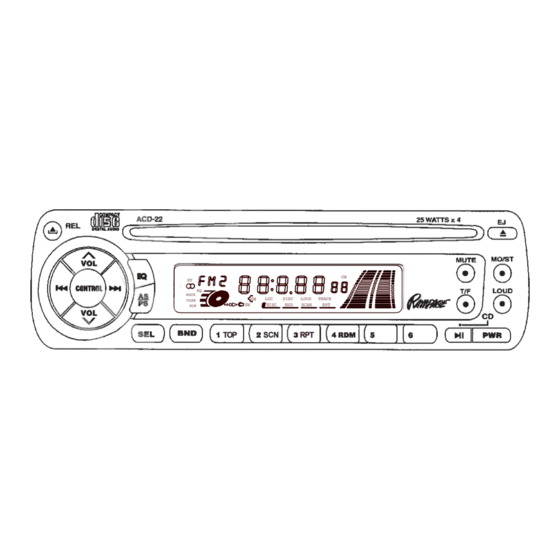

Detachable front panel am/fm/mpx radio with compact disc player and quartz clock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
OWNER'S MANUAL
MANUEL DE L'UTILISATEUR
MANUAL DE OPERACION
DETACHABLE FRONT PANEL AM/FM/MPX RADIO WITH
COMPACT DISC PLAYER AND QUARTZ CLOCK
EQ
EQ
EQ
EQ
EQ
ST
EQ
ROCK
SW
LOC
DISC
LOUD
TRACK
CLAS
IN
DISC
RND
SCAN
RPT
POP
TOP
SCN
RPT
ACD-22
ACD-22
ACD-22
ACD-22
ACD-22
CH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAMPAGE ACD-22 and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox RAMPAGE ACD-22

Summary of Contents for Audiovox RAMPAGE ACD-22

  • Page 1 All manuals and user guides at all-guides.com OWNER'S MANUAL MANUEL DE L'UTILISATEUR MANUAL DE OPERACION ROCK DISC LOUD TRACK CLAS DISC SCAN ACD-22 ACD-22 ACD-22 ACD-22 ACD-22 DETACHABLE FRONT PANEL AM/FM/MPX RADIO WITH COMPACT DISC PLAYER AND QUARTZ CLOCK...

  • Page 2: Installation Instructions

    All manuals and user guides at all-guides.com INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS This unit is designed for installation in cars, trucks, and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialist shops.

  • Page 3: Iso Installation

    All manuals and user guides at all-guides.com T T T T T OLL-FREE INST OLL-FREE INST OLL-FREE INST OLL-FREE INSTALL ALLA A A A A T T T T T ION ASSIST ION ASSIST ION ASSISTA A A A A NCE ION ASSIST OLL-FREE INST ION ASSIST...

  • Page 4: Radio Wiring

    All manuals and user guides at all-guides.com RADIO WIRING RADIO WIRING RADIO WIRING RADIO WIRING RADIO WIRING REFER TO PAGE 4 FOR SPEAKER WIRING AUTOMATIC ANTENNA ANTENNA BLUE IMPORTANT FUSEBLOCK THE BLUE WIRE CAN BE USED TO REMOTELY ACTIVATE AN AUTOMATIC ANTENNA OR AN EXTERNAL AMPLIFIER (SEE ANTENNA OR AMPLIFIER MANUAL) EXISTING...

  • Page 5: Speaker Wiring

    All manuals and user guides at all-guides.com SPEAKER WIRING SPEAKER WIRING SPEAKER WIRING SPEAKER WIRING SPEAKER WIRING WARNING! REFER TO PAGE 3 l THE AMPLIFIERS IN THIS RADIO ARE ONLY DESIGNED FOR USE WITH 4 SPEAKERS. FOR RADIO WIRING l NEVER COMBINE (BRIDGE) OUTPUTS FOR USE WITH 2 SPEAKERS. l NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
  • Page 6 All manuals and user guides at all-guides.com ROCK DISC LOUD TRACK CLAS DISC SCAN MODE 3 bl POWER OFF BUTTON fade) to be adjusted using the Level Control Press this button to turn the unit on and off. Pressing the Select button once will set the unit When turned on, the volume level will start for volume adjustment (“VOL”...
  • Page 7 All manuals and user guides at all-guides.com LOUDNESS CONTOUR (LOUD) TREBLE CONTROL When listening to music at low volume lev- To adjust the treble level, first select the Treble els, this feature will boost the bass and treble mode by pressing the Select button until ranges to compensate for the character- the “TRE”...
  • Page 8 All manuals and user guides at all-guides.com Pressing and holding either button for longer 4. Repeat the above procedure for the than 0.5 seconds will cause the radio to con- remaining 5 pre-sets on the band in use tinue tuning rapidly in the selected direction and for the other 4 bands of the unit.
  • Page 9 All manuals and user guides at all-guides.com CD TRACK ONE POSITION (TOP) SELEC- DISC SLOT With the label surface facing up, gently insert the During disc play, press this button to return disc into the slot until the soft-loading mechanism to beginning of first track on disc.

  • Page 10: Disc Eject

    All manuals and user guides at all-guides.com FRONT PANEL RELEASE BUTTON ( DISC EJECT ( This button is used to release the mechanism Disc play is stopped, the disc is ejected and that holds the front panel to the chassis. To de- the unit will change to radio operation by tach the front panel, press the button so that the pressing this button (“EJT”...

  • Page 11: Detaching The Front Panel

    All manuals and user guides at all-guides.com DETACHING THE FRONT PANEL Release button ATTACHING THE FRONT PANEL 10 10 10 10 10 Engage right side first...

  • Page 12: Error Codes

    All manuals and user guides at all-guides.com SETT T T T T ING THE CLOCK ING THE CLOCK ING THE CLOCK ING THE CLOCK ING THE CLOCK 1. Switch the vehicle ignition “on” and the radio “on” (radio frequency or disc track number will be shown on the display panel).

  • Page 13: Specifications

    All manuals and user guides at all-guides.com SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS SPECIFICATIONS Size: 7" W x 2" H x 6-1/4" D 178 mm x 50 mm x 160 mm Operating Voltage: 12 volts DC, negative ground Output Power: 100 watts maximum ( 25 watts x 4 channels) Output Wiring: Floating-ground type designed for 4 speaker use.

  • Page 14: Care And Maintenance

    All manuals and user guides at all-guides.com CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. recommend that you keep this manual for reference on the many features found in this unit as well as how to set the clock.
  • Page 15 This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A.: AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 • 1-800-645-4994 CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA...
