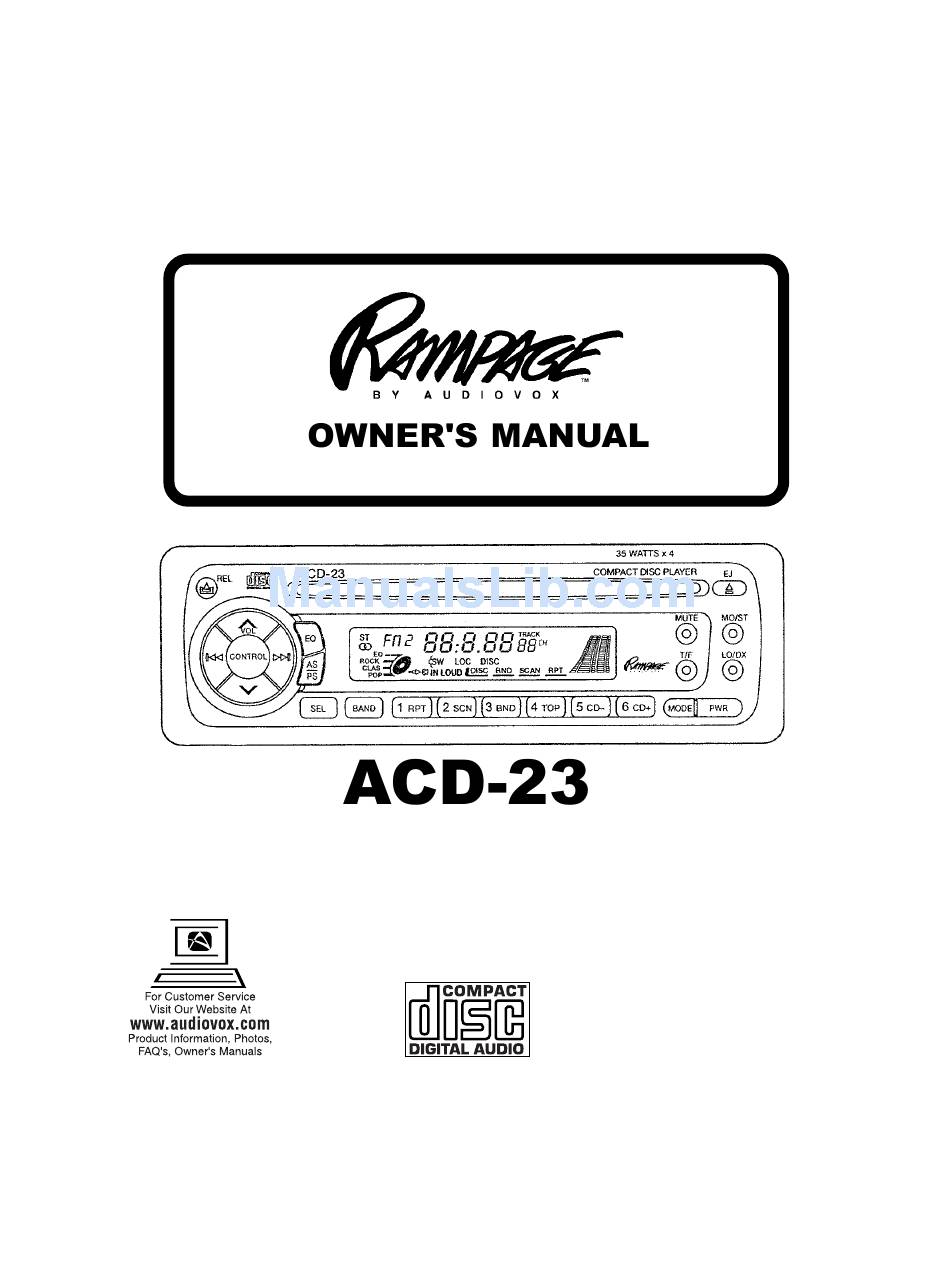

  • Page 1 AM/FM/MPX RADIO WITH DETACHABLE FRONT PANEL, COMPACT DISC PLAYER, CD CHANGER CONTROLS AND QUARTZ CLOCK...

  • Page 2: Installation Instructions

    INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS This unit is designed for installation in cars, trucks, and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialist shops.

  • Page 3: Iso Installation

    T T T T T OLL-FREE INST OLL-FREE INST OLL-FREE INSTALL OLL-FREE INST OLL-FREE INST The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do, we're here to help you. Just call our toll-free telephone assistance line at 1-800-645-4994 during the days and hours shown (U.S.A.
  • Page 4 R R R R R A A A A A DIO WIRING DIO WIRING DIO WIRING DIO WIRING DIO WIRING REFER TO PAGE 4 FOR SPEAKER WIRING ANTENNA EXISTING ANTENNA CABLE ANTENNA LEAD SOCKET ON REAR OF RADIO 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 AUTOMATIC ANTENNA...

  • Page 5: Speaker Wiring

    GREEN w/BLACK STRIPE 1-800-645-4994 Monday - Friday Saturday LEFT REAR SPEAKER WARNING! NOTE: CHECK WITH YOUR RAMPAGE/AUDIOVOX CAR STEREO SPECIALIST OR CALL 1-800-645-4994 FOR RECOMMENDATIONS OF THE MODELS THAT WILL WORK WITH YOUR RADIO. DIN CABLE RADIO (SUPPLIED WITH CD CHANGER).
  • Page 6 OPER OPER OPER A A A A A T T T T T ING INSTRUC ING INSTRUC ING INSTRUCT T T T T IONS ING INSTRUC OPER OPER ING INSTRUC ON/OFF POWER BUTTON Press this button to turn the unit on or off. If the unit is off and the ignition switch is "on", the unit will turn on automatically when a disc is inserted, or when the MODE switch or BAND switch is pressed.
  • Page 7 LEFT/RIGHT BALANCE CONTROL To adjust the left-right speaker balance, first select the Balance mode by pressing the SEL button that the BAL indication appears on the display panel. Within 5 seconds of choosing the Balance mode, press the VOL or VOL button of the Volume Control to adjust the balance as desired.
  • Page 8 1. Turn the radio on and select the desired band. 2. Select the first station to be pre-set using the Manual Up/Down or Automatic Seek Tuning Controls 3. Press the pre-set button ("1-6") to be set and continue to hold it in. After approximately 2 seconds, the pre-set number will appear on the display panel, indicating that the station is now set into that pre-set memory position.
  • Page 9 the function and play of the selected track will continue. Track Scan mode will also be cancelled by activating the Repeat Play or Random Play functions. DISC EJECT (EJ Disc play is stopped, the disc is ejected and the unit will change to radio operation by pressing this button.

  • Page 10: Notes On Use Of Front Panel

    NOTES ON USE OF FRONT PANEL 1. Make sure the front panel is right-side-up when attaching it to the chassis as it cannot be attached when up-side down. 2. Do not press very hard on the front panel when attaching it to the chassis. No more than light to moderate pressure should be needed.

  • Page 11: Cd Player Error Codes

    CD PLAYER ERROR CODES CD PLAYER ERROR CODES CD PLAYER ERROR CODES CD PLAYER ERROR CODES CD PLAYER ERROR CODES If a problem should develop while operating the CD player, an error code (ER-1, ER-2, ER-3, etc.) may appear on the display panel. This can indicate a number of problems with the unit, including a mechanical error or an error in the microprocessor control of the player.

  • Page 12: Cd Changer Controls

    CD CHANGER CONTROLS Built into this radio are controls to operate an optional CD changer. Please check with your Rampage/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume,...
  • Page 13 by pressing the RPT button twice or by activat- ing the Scan or Random Play functions, or by pressing the MODE switch. When the RPT but- ton is pressed twice during Disc Changer opera- tion, the DISC and RPT indications will appear on the display panel and play of the selected disc will be continually repeated until the Disc Repeat mode is canceled by pressing the RPT button...
  • Page 14 S P E C I F I C A T I O N S S P E C I F I C A T I O N S S P E C I F I C A T I O N S S P E C I F I C A T I O N S S P E C I F I C A T I O N S Size:...

  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE The radio section of your new sound system does not require any maintenance. We recommend that you keep this manual for reference on the many features found in this unit as well as how to set the clock.
  • Page 16 This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A.: AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 • 1-800-645-4994 CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA ©...
