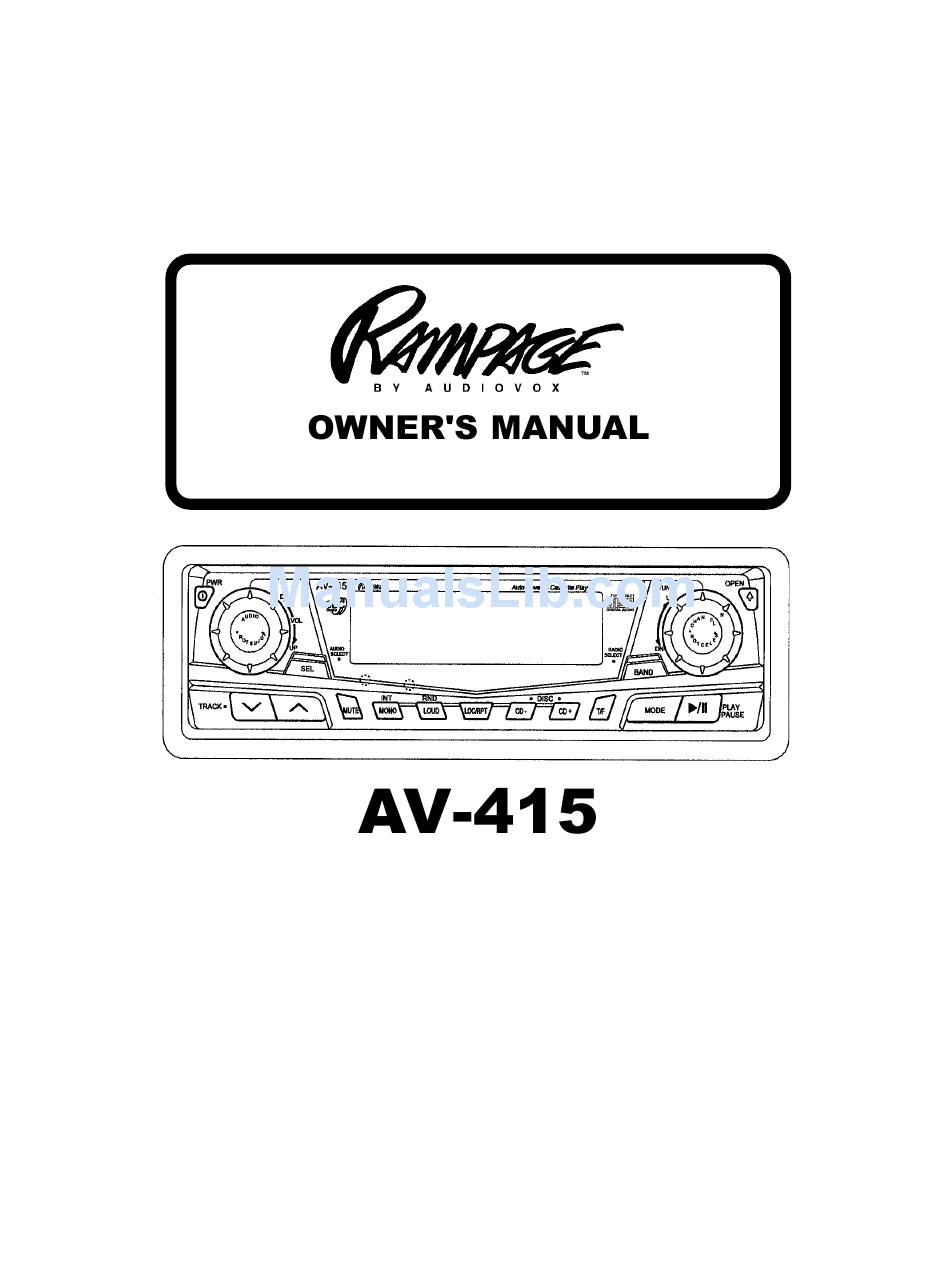

- Page 1 AM/FM/MPX RADIO WITH FOLD-DOWN DETACHABLE FRONT PANEL, AUDIO CASSETTE PLAYER, CD CHANGER CONTROLS AND QUARTZ CLOCK...
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS This unit is designed for installation in cars, trucks, and vans with an existing radio opening. In many cases, a special installation kit will be required to mount the radio to the dashboard. These kits are available at electronics supply stores and car stereo specialist shops. - Page 3 T T T T T OLL-FREE INST OLL-FREE INST OLL-FREE INSTALL OLL-FREE INST OLL-FREE INST The installation and wiring connections for this unit are so simple, we doubt you'll need our help, but, if you do, we're here to help you. Just call our toll-free telephone assistance line at 1-800-645-4994 during the days and hours shown (U.S.A.
- Page 4 R R R R R A A A A A DIO WIRING DIO WIRING DIO WIRING DIO WIRING DIO WIRING REFER TO PAGE 4 FOR SPEAKER WIRING ANTENNA EXISTING ANTENNA CABLE ANTENNA SOCKET ON REAR OF RADIO 3 3 3 3 3 3 3 3 3 3 AUTOMATIC ANTENNA...
- Page 5 1-800-645-4994 Monday - Friday Saturday LEFT REAR SPEAKER WARNING! THE RADIO. NOTE: CHECK WITH YOUR RAMPAGE/AUDIOVOX CAR STEREO SPECIALIST OR CALL 1-800-645-4994 FOR RECOMMENDATIONS OF THE MODELS THAT WILL WORK WITH YOUR RADIO. DIN CABLE RADIO (SUPPLIED WITH CD CHANGER).
- Page 6 OPER OPER A A A A A T T T T T ING INSTRUC OPER ING INSTRUC ING INSTRUC ING INSTRUCT T T T T IONS OPER OPER ING INSTRUC ON-OFF POWER BUTTON (PWR) If the ignition switch is “on”, press the PWR button to turn the unit on or off.
- Page 7 panel. Within 5 seconds of choosing the Bass mode, rotate the AUDIO ADJUST control (VOL UP/DN) counter-clockwise (DN) to decrease the bass response or rotate clockwise (UP) to increase it as desired. The level will be shown on the display panel from a minimum BAS-7 to a maximum of BAS 7 (BAS 0 indicates flat response).
- Page 8 DISC SELECT ( CD- CD+ During CD changer operation, this button is used to select the desired disc for play. (Refer to function LIQUID CRYSTAL DISPLAY PANEL The Liquid Crystal Display (LCD) panel displays the radio frequency, time, and other active functions. NOTE: It is a characteristic of LCD panels that, if subjected to cold temperatures for an extended period of time,...
- Page 9 THEFT-DETERRENT LED A light-emitting diode (LED) is located on the chassis behind the front panel, and is visible when the panel assembly is swung down. The LED will flash when the front panel is removed from the front mounting plate. The flashing light serves as a visual warning to the would-be thief that the unit has been disabled by removal of the front panel.
- Page 10 FUNCTION (LEVEL) DISPLAY The Function Display consits of five bar graphs which provide representation of the volume level and the left and right channel balance levels. The volume level is represented by three thin bar graphs. As the volume is increased, the number of illuminated segments will increase.
-
Page 11: Notes On Use Of Front Panel
NOTES ON USE OF FRONT PANEL 1. Make sure the front panel is oriented correctly when sliding it into the front mounting plate, as it cannot be attached when up-side down. Use moderate pressure to fully seat the panel into position. - Page 12 1. Switch the vehicle ignition and radio “on”. 2. Press the Time/Frequency button to call the time display. 3. Press and hold the Time/Frequency Selector button The entire time display will blink. 4. Rotate the AUDIO ADJUST control clockwise in the VOL DN direction to adjust the hours and AM/PM indication, and counter-clockwise in the VOL UP direction to adjust the minutes to the correct time.
-
Page 13: Cd Changer Controls
CD CHANGER CONTROLS Built into this radio are controls to operate an optional CD changer. Please check with your Rampage/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume,... - Page 14 If a problem should develop while operating the CD changer, the following error codes may appear on the display panel: ER-1: Indicates that there is no magazine loaded in the CD changer. ER-2: Indicates a problem with the magazine eject function. ER-3: Indicates an error in the disc loading function.
-
Page 15: Care And Maintenance
CARE AND MAINTENANCE The radio portion of your new sound system does not require any maintenance. We recommend you keep this manual for general reference of the many features found in this unit. As with any cassette player, the cassette section of this sound system does require a minimum of maintenance to keep it in good working condition. - Page 16 This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A.: AUDIOVOX CORPORATION, 150 MARCUS BLVD., HAUPPAUGE, NEW YORK 11788 • 1-800-645-4994 CANADA: CALL 1-800-645-4994 FOR LOCATION OF WARRANTY STATION SERVING YOUR AREA ©...
