Summary of Contents for Audiovox AWM820

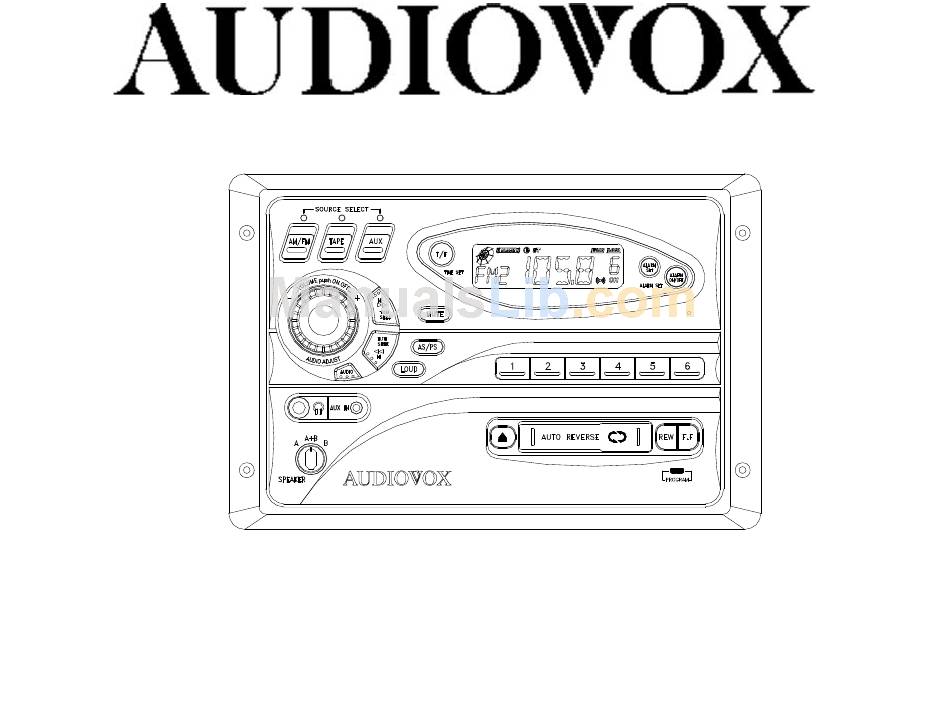

- Page 1 AWM820 Owner’s Manual HIGH POWER AM/FM STEREO/CASSETTE PLAYER DESIGNED SPECIFICALLY FOR THE VAN AND RV INDUSTRIES...
-
Page 2: Important Notes
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (ON BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash and arrowhead within the triangle is a warning sign alerting you of "dangerous voltage"... - Page 3 Display Window Alarm Set / Alarm On/Off Buttons Button Reset Preset Buttons Cassette Fast Forward Button Cassette Rewind Button Cassette Player Cassette Eject Button Speaker Selector 1/8” Auxiliary Input Jack Stereo Headphone Jack Audio Adjust Button Power Switch w/Volume Control...
-
Page 4: Installation And Hook-Up
1) Cut mounting hole in desired location using mounting hole diagram (right). 2) Route power, speaker, and antenna cables through hole, and connect to unit as shown in hook up diagram below. 3) After making sure connections are correct, test unit operation as described in the operation section (Do not mount until AM antenna trimmer adjustment has been made. -
Page 5: Operating Instructions
3) Use the Speaker Selector Switch (13) to choose between speaker output, headphones, or both. 4) Press the Cassette Eject button (12) to eject any cassettes that may already be in the player. 5) Insert a cassette into the Cassette Player (11). 6) The cassette will automatically play when inserted. - Page 6 4) An external auxiliary source can also be used (such as a portable cassette player) through the 1/8” Auxiliary Stereo Input Jack (14) on the front of the radio.
- Page 7 BEEP FEATURE 1) Hold the Audio Adjust button to enable the beep feature (16). Lower right side will display an audio symbol when this feature is turned on. 2) When this feature is on, turning different features on or off will produce two different tones, higher tone for ON, and lower tone for OFF.
-
Page 8: Specifications
Size: Operating Voltage: Output Power: Output Wiring: Output Impedance: Tuning Range: Sensitivity: FM Stereo Separation: Frequency Response: Wow & Flutter: Tape S/N Ratio: Designs and Specifications are subject to change without notice SPECIFICATIONS Overall Size 10.43” (W) x 7” (H) x 6.25” (D) 265mm (W) x 178mm (H) x 159mm (D) Mounting Size 9.25”... -
Page 9: Accessory List
HP-375 Studio Quality Headphones Unlike household electronics, all of our products have been specifically designed and tested for the mobile environment and are only available through ASA. To order any of these products, please contact Audiovox Specialized Applications at www.asaelectronics.com... - Page 10 23319 Cooper Drive Elkhart, IN 46514 (219) 264-3135 FAX (219) 264-3007 www.asaelectronics.com Revision F 12/00...
