Summary of Contents for Total TH215456

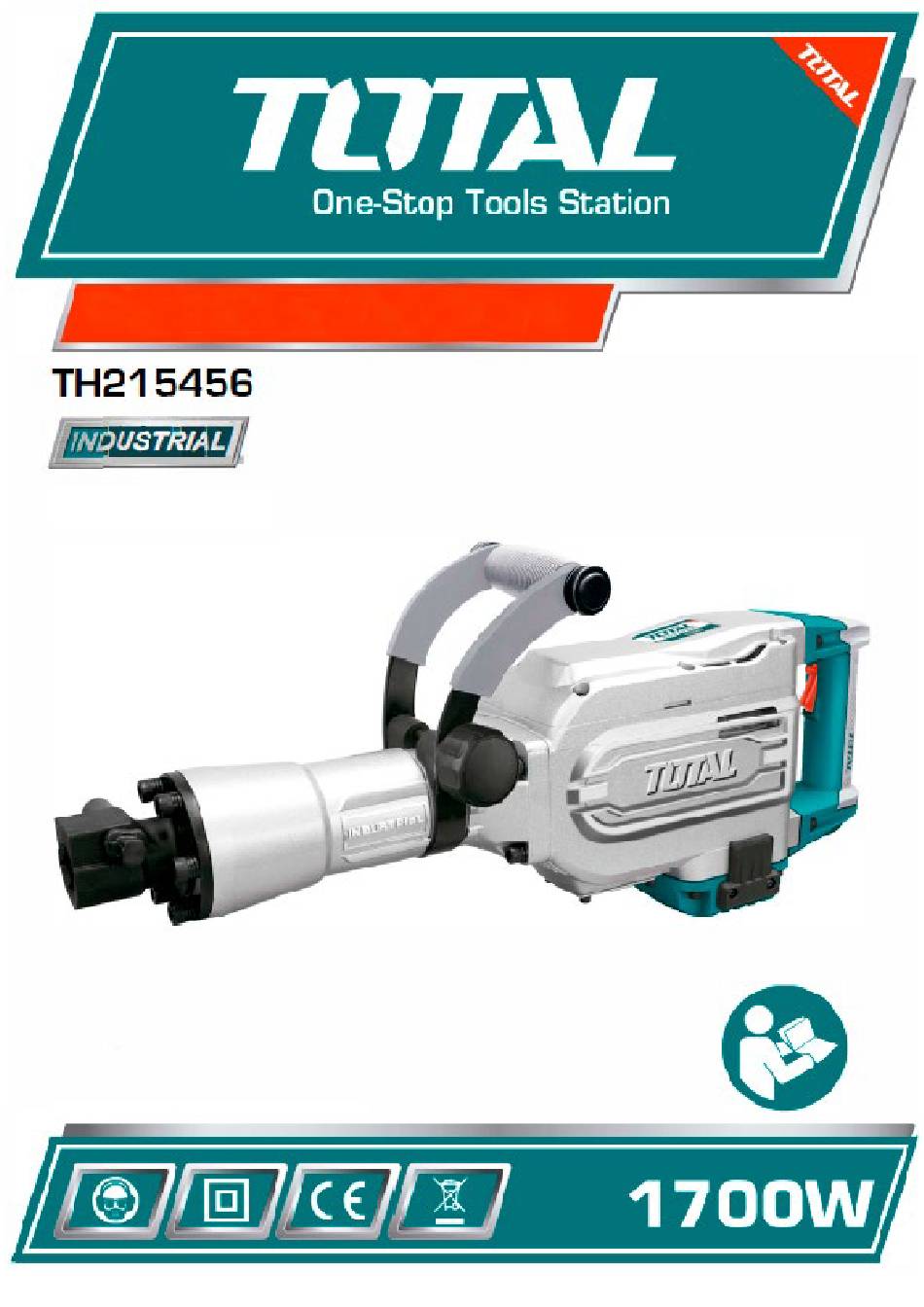

- Page 1 DEMOLITION HAMMER...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire, and / or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 4) Use and care of power tools a. Do not force the tool. Use the right power tool for each use. b. Do not use the power tool if its ignition switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 4: Additional Safety Warnings
Safety rules for correct use Double insulation for additional protection Read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. Check with your local authority or retailer for recycling advice. -
Page 5: Other Risks
Other risks Even when the power tool is used as prescribed, it is not possible to eliminate all residual risk factors: a. Health defects resulting from the emission of vibrations if the power tool is used for a longer period of time or if it is not properly managed and maintained. b. -

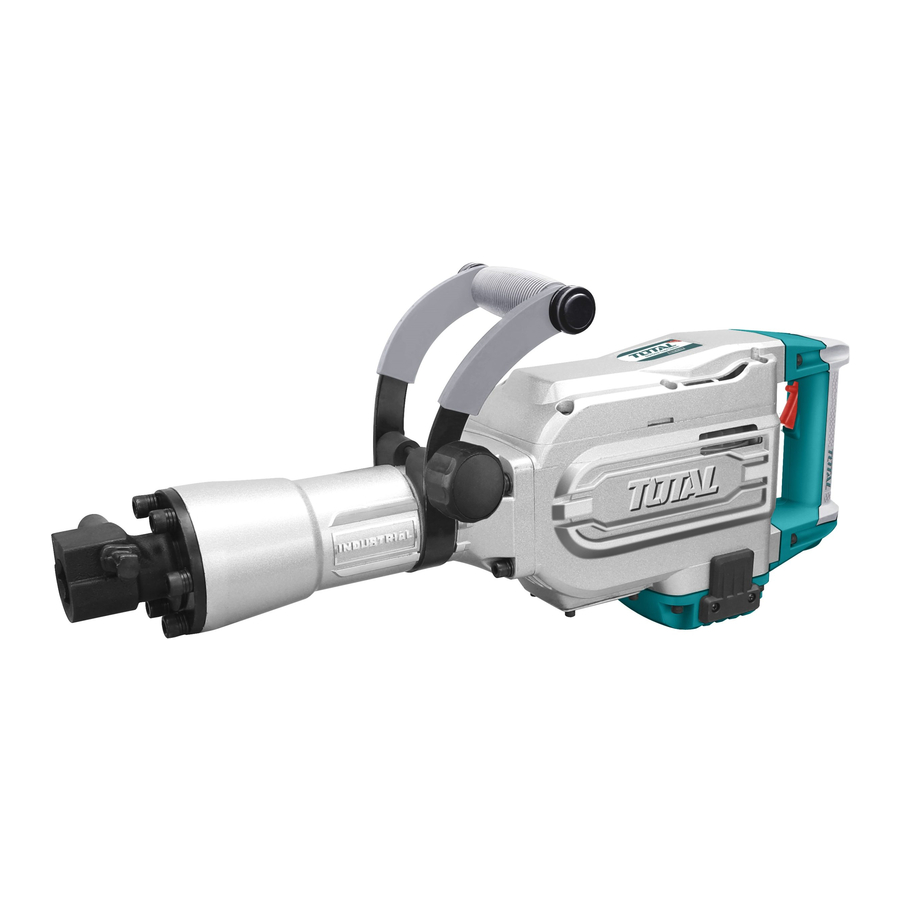

Page 6: Product Description
Product description 1. Tool holder 5. Switch 2. Grip handle 6. Lock button 3. Auxiliary handle 4. Brushes Note: The power tool is designed for hammering, demolishing concrete, brick and stone. Note 2: Not all accessories illustrated or described have to be included in the standard delivery. Set up Before using Be careful of hidden cables, gas and water pipes. -
Page 7: Maintenance
Mounting Installation and removal of accessories Caution When installing and removing accessories, make sure the tool is turned off, and the cord should not be plugged in. Remove the bolt (1) and turn it to make the flange face the direction of the motor housing. Insert the accessory into the tool holder through the dust guard, while turning and pressing in until it automatically locks. - Page 8 To ensure the safety and credibility of the tool, all brush repairs, checks and replacement, or any maintenance should be done by a professional power tool maintenance professional. Tool lubrication When the tool has been used for more than 60 hours, it must be lubricated: Open the oil cover (1) with the hex wrench provided •...
-
Page 9: Exploded View
Exploded view TH215456... - Page 10 DEMOLITION HAMMER...
