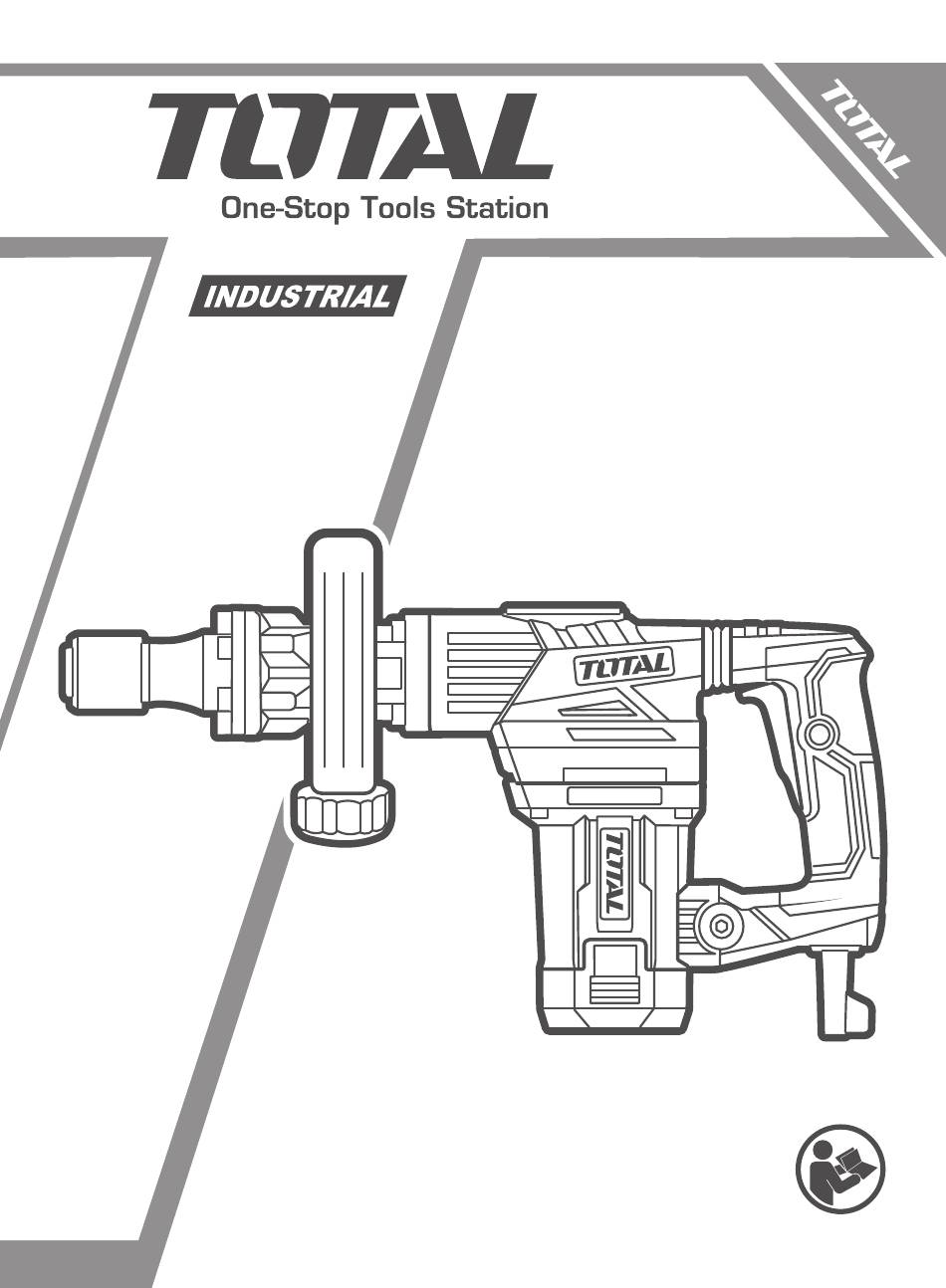

- Page 1 PRODUCT MANUAL DEMOLITION BREAKER 1300W TH2130016 UTH2130016 TH2130016xy UTH2130016xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 6: Additional Safety Warning
| English ADDITIONAL SAFETY WARNING ▶ Wear ear protectors. Exposure to noise can cause hearing loss. ▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury. ▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. -
Page 7: Technical Specifications
| English SPECIFICATIONS Technical specifications TH2130016,TH2130016M TH2130016-3,TH2130016-8 (BS Plug) UTH2130016-9 Model No. TH2130016-4 (IRAM Plug) UTH2130016 (INMENTRO Plug) TH2130016-6 (ISRAEL Plug) TH2130016-7 (Chile Plug) TH2130016-9 (INMENTRO Plug) Rated 110- 220-240V~50/60Hz 127V~60Hz voltage: 120V~50/60Hz Rated input 1300W 1300W 1300W power: Impact 3800/min 3800/min 3800/min... - Page 8 | English OPERATION PICTURE...
-
Page 9: Operation
| English OPERATION Before Use • Check that the mains voltage corresponds to the rated voltage on the type plate. • Switch off the product, pull out the plug and wait until all moving parts have completely stopped before adjusting, replacing parts, cleaning and/or carrying out maintenance. -
Page 10: Maintenance
| English Switching ON/OFF(see Figure C) Switching on: • Press the On/Off switch 4. • (With continuous operation function) Press the On/Off switch 4 and depress the switch lock 5. Switching off: • Release the On/Off switch 4. • (With continuous operation function) Press the On/Off switch 4 and then release. - Page 11 | English decreases. Open the grease cap 6 with the supplied key for grease cap. Refill with the supplied grease and close the cover in reverse order. Refill with gear grease for central lubrication. Spray a small amount of MOS2 oil into the tool holder if you do not intend to use the drill for a longer period of time.
- Page 12 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is Disconnect When the machine is turned on, broken, power cord plug machine from the electric motor does not malfunction;...
- Page 13 TOTAL TOOLS WORLD MADE IN CHINA T0723.V02 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
