Summary of Contents for Total TH215002

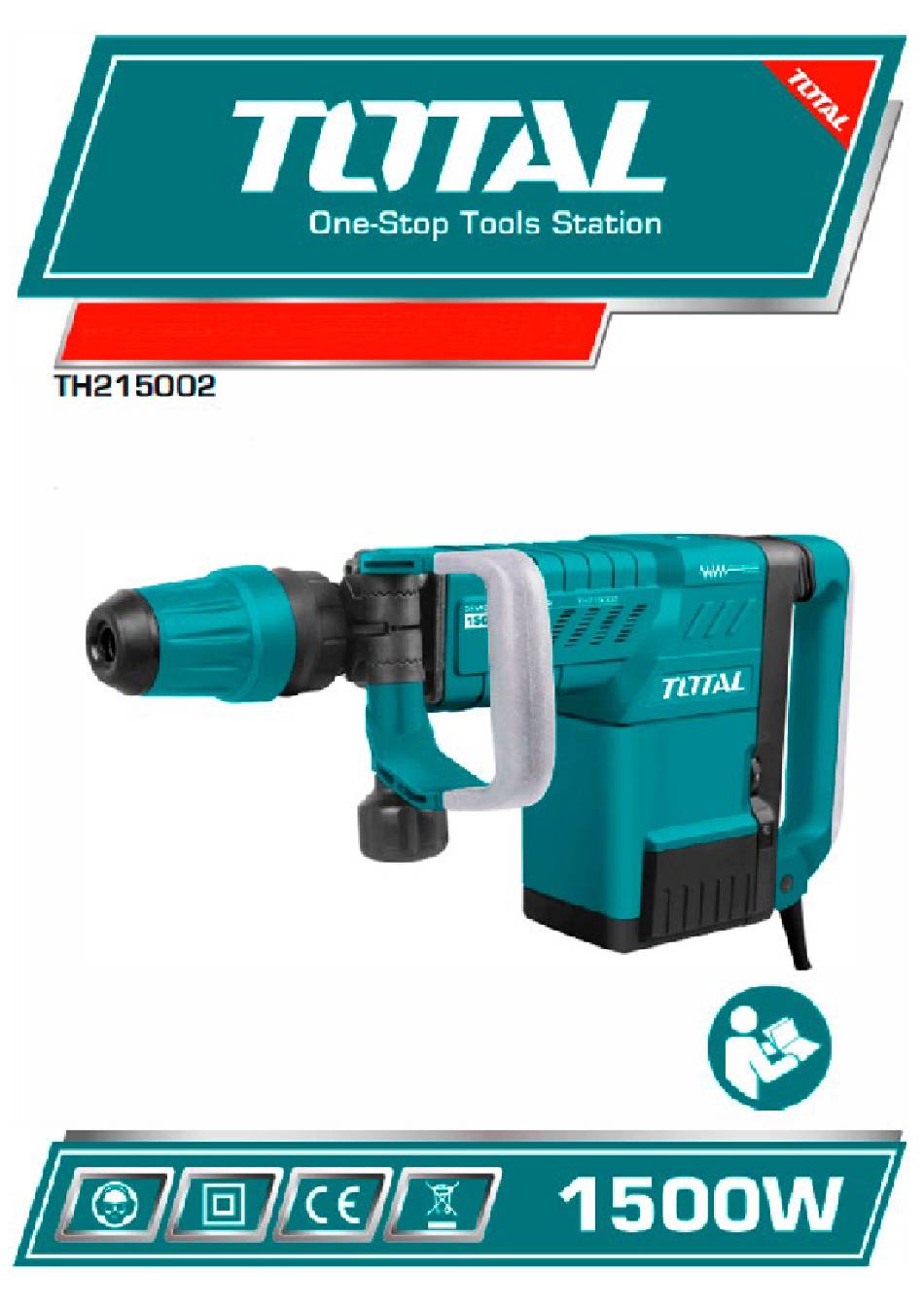

- Page 1 DEMOLITION HAMMER...
-
Page 2: Safety Instructions
Safety instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire and / or serious injury. The term "power tool" in the warnings refers to the mains operated (corded) power tool or cordless (cordless) power tool. - Page 3 4) Use and care of power tools a. Do not force the tool. Use the correct power tool for each use. b. Do not use the power tool if its power switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 4: Additional Safety Warnings
Norme di sicurezza per un uso corretto Double insulation for added protection Please read the instruction manual before use. CE conformity. Wear safety glasses, hearing protection, and a dust mask. Waste electrical products must not be disposed of with household waste. -
Page 5: Other Risks
During breaks in work or when the tool is not in use (e.g. changing tools, repairs, • cleaning, adjusting), disconnect the tool from the mains. Unqualified people cannot use this tool. • Keep tool accessories out of the reach of children. •... -
Page 6: Technical Data
Technical data Technical data sheet of the demolition hammer Voltage 220-240 V ~ Frequency 50 / 60Hz Power 1500 W Impact frequency 1000-1900 / min Power 6-25J Positions of the chisel Chiselling ability in medium hard concrete 490 kg / hour Weight 11 kg 10mm hex wrench... - Page 7 Setting up Before using Source of power Make sure the power source to be used meets the power requirements specified on the hammer nameplate. Power switch Make sure the power switch is in the OFF position. If the plug is connected and the switch is in the ON position, the demolition hammer will start working immediately, causing serious accidents.
- Page 8 Setting up Verify that the mains voltage is correct. The power supply voltage must match the voltage specified on the rating plate of the power tool. • To turn on the power tool, press the switch in the direction of the arrow "I". •...
-
Page 9: Maintenance
Regularly check that all external parts of the instrument are not damaged. Do not use the tool if the parts are damaged. If necessary, your power tool must be repaired at a TOTAL authorized service center. Inspection of the mounting screw Periodically inspect all mounting screws and make sure they are tight. -
Page 10: Exploded View
In this case, the power tool must be sent to an after-sales service agent. If the power tool fails despite the attention paid to the manufacturing and testing procedures, the repair must be done by a TOTAL Power Tool after-sales service center. Environment Do not dispose of electrical appliances as unsorted municipal waste, use •... - Page 11 DEMOLITION HAMMER...
