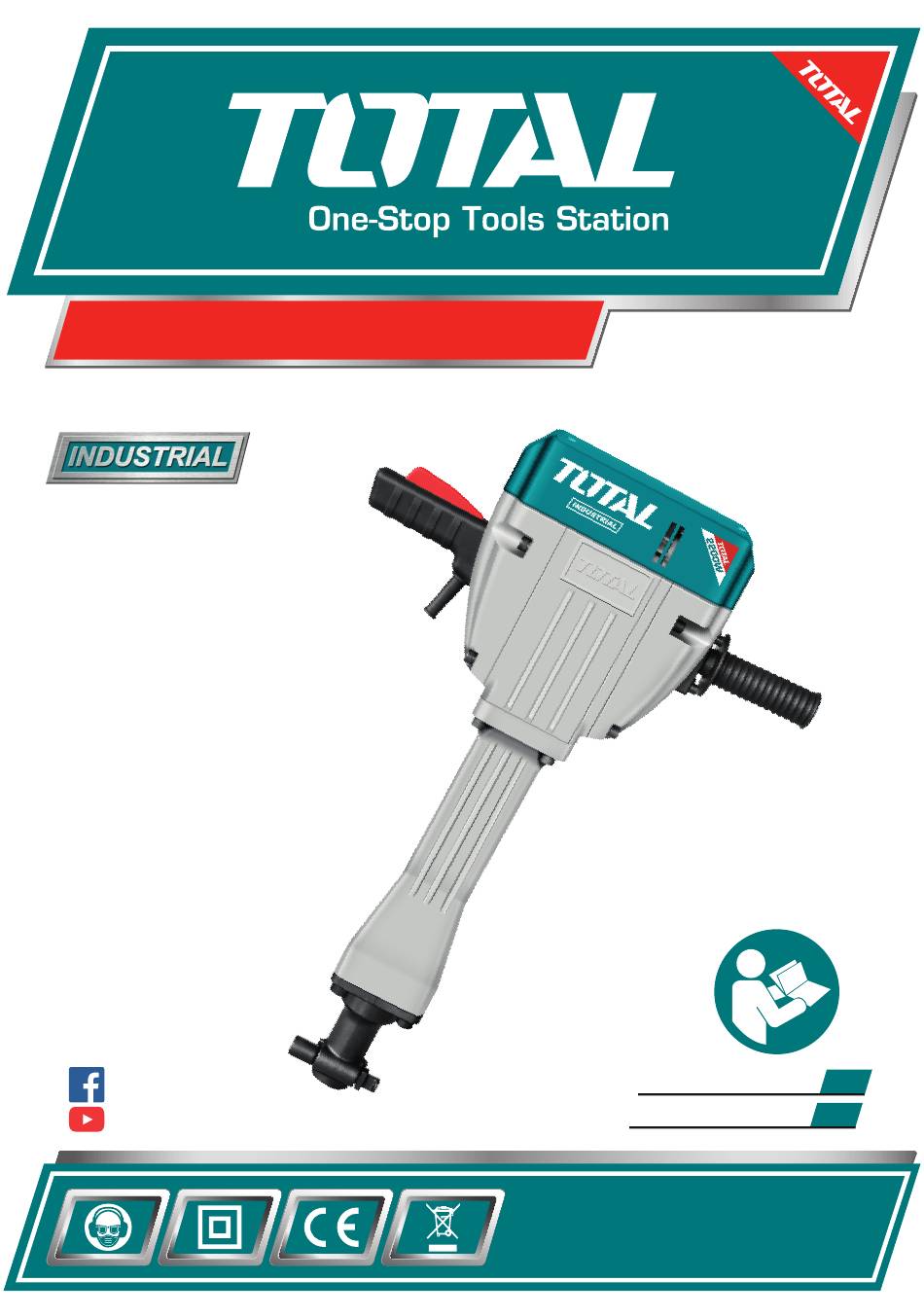

- Page 1 DEMOLITION BREAKER TH220502,UTH220502,TH220502-9,TH220502-4 totaltoolsworld Demolition Breaker Martillo Demoledor TOTAL TOOLS WORLD 2200W...
- Page 2 Warning! Depending on the actual use of the power tool the vibration values can differ from the declared total. Adopt proper measures to protect yourself against vibration exposures. Take the whole work process including times the power tool is running under no load or switched off into consideration.
-
Page 3: Safety Instructions
2. Safety instructions In this operator's manual/or machine’s labels following symbols are used: Read the manual carefully Accordance with essential applicable safety of European directives Double insulation Denote risk of personal injury, loss of life or damage to the tool in case of nonobservance of the instruction in this manual. -
Page 4: General Power Tool Safety Warnings
General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow all warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 5 device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication.
- Page 6 e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Page 7 11 Don't touch the BIT OR PARTS CLOSE TO THE BIT immediately after operation, they may extremely hot and could burn your skin. 12 Any damage and abnormal happen, please stop to use immediately and disconnect it, ask authorized serve center to check and repair. 13.
- Page 8 3. Assembly Name of the parts Mounting tool bits Warning: before do it, make sure unplug the machine! (1) Pull out of the retainer "2", turning 180 clockwise or anticlockwise, insert the accessory shank portion"1" into the hole on the front cover. (2) Turning the retainer back into original position.
-
Page 9: Operation
4. Operation Prior to operation 1. Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer. 2. Power switch Ensure that the power switch is in the position of OFF. If the plug is connected to power receptacle while the power switch is in ON position, the demolition hammer will start operation immediately, which can cause serious accident! 3. -
Page 10: Maintenance
5. Maintenance Before do any maintenance, ensure unplug the plug. GREASE AND OIL FILLING Demolition hammer mechanical part is easy to get worn and lose impact energy if without enough lubrication, recommend filling grease and oil after 6 months usage. The steps as follows: Fig 1 Fig 2... -
Page 11: Maintenance And Inspection
1. Loosen the 4 screws between aluminum head and gear box by 12mm HEX head wrench.(See Fig1) 2. Disassemble the aluminum head, cylinder and piston.(See Fig2) 3. Clean the inside of aluminum head, must be free of metal chip and granular dust (See Fig3) 4. - Page 12 4. Maintenance the motor The motor is the heart of the machine, please avoid any damage to the winding, or any water and oil to wet it. 5. Carbon brush replacements Carbon brushes are consumableparts, when it becomes worn or"limit worn" it can cause motor trouble, we use auto-stop carbon brush, it stopped automatically when carbon brush worn out, at that time,replace a new couple of them as weoffered.
- Page 13 TH220502,UTH220502,TH220502-9,TH220502-4 Exploded view...
-
Page 14: Spare Part List
TH220502,UTH220502,TH220502-9,TH220502-4 Spare part list Part Description Part Description Part Description Housing Ass’y He×. Socket Bolt M14×40 (12.9) Tail Cover Locking Lever He×. Socket Bolt M10×35 Locking Lever Cover Bearing Cover He×. Socket Bolt M6×20 Oil Tank Cover He×. Socket Bolt M10×1.25×35 Ball Bearing NSK 6201 DDu He×. - Page 15 Espec cificacion nes técni icas TH220502-9 TH220502-4 Nomb bre del mod delo TH22 2 0502 UTH220 0 502 (INMENTRO Plug) (IRAM Plug) Volta AC22 2 0-240V~...
- Page 16 2. In nstrucc ciones d de segu uridad n este man ual del ope erador se en ncuentran los siguien tes símbolo os que están n expuestos s en la herr ramienta: a el manual cuidadosam mente. on conformi idad de las n normas de l la Comunid ad Europea...
- Page 17 Adverte ncias ge enerale s de seg guridad d de las herram mientas eléctric VERTENC CIAS ： a todas las advertenci ias de segur ridad e inst trucciones. . No seguir las instrucc ciones listad das debajo ede resultar r en un shoc ck eléctrico, fuego y/o h herida grave...
- Page 18 de l la herramie nta ante situ uaciones ine esperadas. Vís stase aprop piadamente e. No use ro opa suelta o o joyería. M Mantenga s u pelo, rop pa y guante es lejos de la rtes en mov vimiento. L La ropa suel ta, joyería o o el pelo lar...
- Page 19 、En climas 4、 s fríos o si l la herramien nta no fue u usada por un n largo tiem mpo, por favo or haga and dar la herram mienta por nos minutos s sin carga p para calenta ar la grasa d de adentro, p por lo contra ario la funci...
- Page 20 3. En nsambl lado Nombre de las p partes Interrup ptor 2. Tap Mango la ateral 4. Rete enedor Tapa del lantera 6. Cab beza de alu uminio Carcasa 8. Man Montaj je de l las bro ocas d e la he erram mienta Advertencia...
-
Page 21: Operación
4. O peraci ón ntes de la a operac ción . Fuente de e energía Asegúres se de que la fuente de energí a a utilizar r esté conf forme con los reque rimientos d otencia que e están es pecificado s en la cha apa caract... - Page 22 5. M Manteni imiento Antes de ha acer cualqu uier tipo d de manteni imiento, a segúrese d de desench hufar la he erramienta . RELLEN NO DE G GRASA Y ACEI as partes m mecánicas del martill o demoled dor son fác iles de que e se gasten...
- Page 23 . Suelte lo os 4 tornillo os que está án entre la cabeza de e aluminio y la carcas sa con una a llave de cabeza h hexagonal de 12mm (vea fig. 1 . Desmon tar la cabe eza de alum minio, cilind dro y pistó...
- Page 24 Mantenim miento del m motor El moto or es el cor razón de la a herramien nta, por fav vor evite q ue el bobin nado se da añe, o ue le entre e agua o ac ceite. Reemplaz zo de las esc cobillas de carbón as escobil...
- Page 25 TH220502,UTH220502,TH220502-4,TH220502-9 VISTA DESARROLLADA...
- Page 26 H2205 02,UT TH2205 502, TH220502-4 TH220502-9 LISTA DE REPUESTOS Part Description Part Description Part Description using Ass’y Big G Gear Partition W Washer He× ×. Socket Bolt M M14×40 (12.9) ail Cover Final Gear Locking L Lever He×. Sock ket Bolt M10×35...
- Page 27 DEMOLITION BREAKER www.totaltools.cn TOTAL TOOLS CO., PTE. LTD. MADE IN CHINA T0919.V09 2200W...
