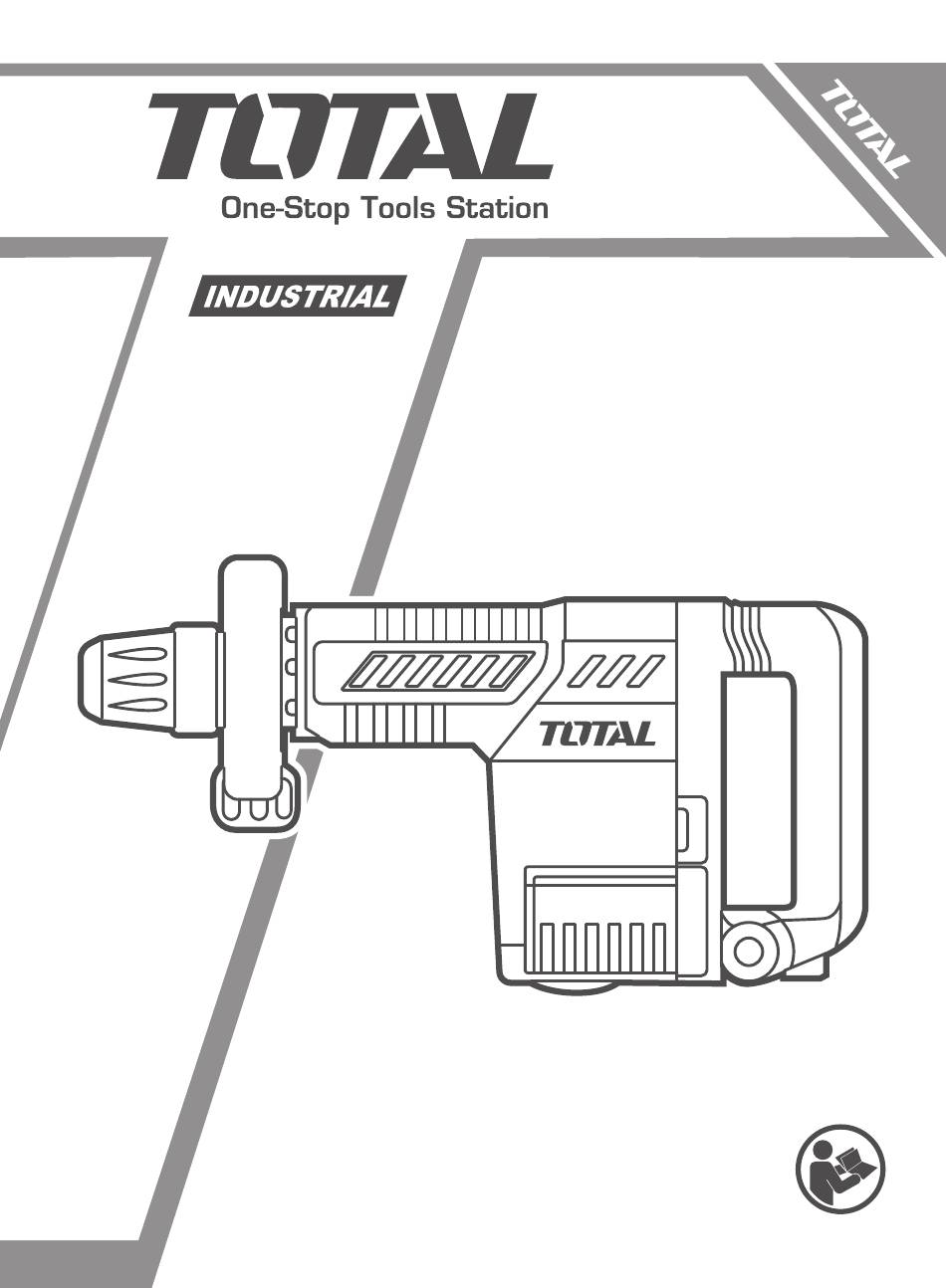

- Page 1 PRODUCT MANUAL DEMOLITION BREAKER TH215002 UTH215002 TH215002xy UTH215002xy x(blank,1,2,3,4,5,6,7,8,9,E,S,A,M) y(blank,-1,-2,-3,-4,-5,-6,-7,-8,-9,E,S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
-
Page 5: Additional Safety Warning
| English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. -
Page 6: Residual Risks
| English Additional Safety Instructions Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock. -
Page 7: Intended Use
| English INTENDED USE The power tool is intended for chiseling work in concrete, brick, stone and asphalt, as well as for driving in and compressing with the appropriate accessories. SPECIFICATIONS 1. Hammer rod protector 6. Speed adjuster function knob 2. -
Page 8: Technical Specifications
| English Technical specifications TH215002 TH215002-3 TH215002-8 (BS Plug) TH215002-4 (IRAM Plug) UTH215002-9 Model No. TH215002-6 UTH215002 (INMENTRO Plug) (ISRAEL Plug) TH215002-9 (INMENTRO Plug) TH215002M 110-120V~50/ Rated voltage 220-240V~50/60Hz 127V~60Hz 60Hz Rated input 1500W 1500W 1500W power 1000-1900/mi Impact rate 1000-1900/min 1000-1900/min Impact energy... -
Page 9: Operation
| English OPERATION PICTURE OPERATION Before use Power source Ensure that the power source to be utilized conforms to the power requirements which specified on the name plate of the hammer. Power switch Ensure that the power switch is in the position of OFF. If the plug is connected to power receptacle while the power switch is in ON position, the demolition hammer will start operation immediately, which can cause serious accident. -
Page 10: Changing The Tool
| English power tool to the required position and tighten the Function Knob 6 again. The Auxiliary Handle 9 can be mounted to a different position. For this, completely unscrew the Function Knob 6 and then pull out the hexagon bolt upward. Pull off the Auxiliary Handle 9 to the side and turn around the remaining clamping element by 180°... -
Page 11: Maintenance
The machine is equipped with an active vibration reduction system, which cuts vibration of that of the without Active Vibration Reduction. This may significantly reduce the exposure level over the total working period. Protect the operator form the effects of vibration. - Page 12 | English slots clean. 1. Only use spare parts/accessories from the manufacturer or authorized and qualified workshops. Repairs should only be carried out by qualified technicians or by an authorized service center. Qualified technicians must have relevant training and experience, be familiar with the design and construction requirements of the hammer and understand and follow the safety regulations.
- Page 13 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord wiring is broken, power Disconnect When the machine is turned on, the cord plug malfunction; machine from electric motor does not work. ●...
- Page 14 TOTAL TOOLS WORLD MADE IN CHINA T1023.V08 NEWWAY TECHNOLOGY (SUZHOU) CO., LIMITED No. 20 Dagang Road, Fuqiao Town, Taicang City, China...
