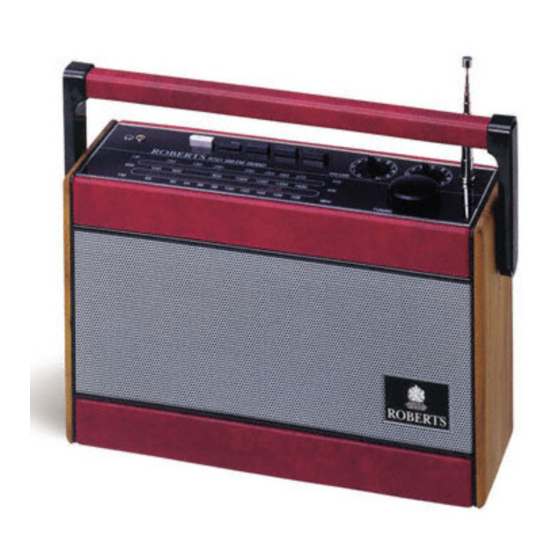

- Page 1 All manuals and user guides at all-guides.com R701 R701 R701 R701 R701 3 Band Portable Radio 3 Band Portable Radio 3 Band Portable Radio 3 Band Portable Radio 3 Band Portable Radio Please read this manual before use...
- Page 2 All manuals and user guides at all-guides.com Controls (top panel) 1. Headphone socket 5. Volume control 2. ON/OFF button 6. Tone control 3. AFC button 7. Telescopic aerial 4. Waveband buttons 8. Tuning control 9. Tuning scale...
- Page 3 All manuals and user guides at all-guides.com Controls (LH end) DC 9V PIN -ve PU9-B INPUT 240V 50Hz OUTPUT 9V 300mA 10.DC Socket...
- Page 4 Headphones A 3.5mm socket (1) is provided for use with either headphones or an We would recommend for economy, that the R701 is used via the earpiece. Inserting a plug into this socket automatically mutes the internal Mains adaptor whenever possible with battery operation for occa- loudspeaker.
-
Page 5: Specifications
All manuals and user guides at all-guides.com Specifications Circuit Features Power Requirements 9.0V 3 ICs, 7 diodes, 1 zener diode. Batteries 6 x IEC R14 (C size) Loudspeaker 100mm 8ohms Battery Life Approx. 80hrs of listening for 4 hours a day at Output Power 1watt into 8ohms normal volume using alkaline cells. - Page 6 In the event that it is not possible to return the instrument to the Roberts dealer from whom it was purchased, please contact Roberts Radio service department at the address shown on the back page of this manual before taking further action.
