Summary of Contents for Roberts R737

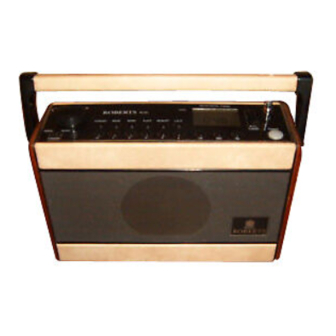

- Page 1 All manuals and user guides at all-guides.com R737 R737 R737 R737 R737 3 Band Digital Preset Portable Radio 3 Band Digital Preset Portable Radio 3 Band Digital Preset Portable Radio 3 Band Digital Preset Portable Radio 3 Band Digital Preset Portable Radio...
- Page 2 All manuals and user guides at all-guides.com Controls (top panel) STANDBY 1. Headphone socket 6. Mono button 11. Liquid crystal display 16. FM button 2. Volume control 7. Sleep button 12. Tuning up button 17. MW button 3. Tone control 8.
- Page 3 All manuals and user guides at all-guides.com Controls (LH end) Liquid crystal display FM MW LW STANDBY DC 9V PIN -ve PU9-B INPUT 240V 50Hz OUTPUT 9V 300mA 22.DC Socket a. Waveband indicator b. Stereo indicator c. Memory indicator d. Low battery indicator e.
-
Page 4: Mains Adaptor
In order to maintain the clock and memory functions it is important that batteries are fitted at all times. We would recommend for economy, that the R737 is used via the Mains adaptor whenever possible with battery operation for occa- sional or stand-by use only. -
Page 5: Setting The Clock
All manuals and user guides at all-guides.com Setting the clock Ensure the batteries are fitted and the power switch (14) is off. Press and hold the mode button (5) until the display starts to flash. Release the mode button. You now have 5 seconds to start the next procedure otherwise the display will stop flashing and return to showing normal time. -
Page 6: Memory Tuning
All manuals and user guides at all-guides.com Memory tuning You may store up to 25 stations in memory. 10 on FM, 10 on medium wave and 5 on long wave. Tune in the desired station as previously described. Press the memory button (8) to open the memory a flashing 'M' will appear in the display. -
Page 7: Setting The Standby Time
All manuals and user guides at all-guides.com Setting the standby time Ensure that the receiver is switched off. Press the mode button (5) once, symbol in the display will start to flash. STANDBY Press and hold down the mode button (5) until the symbol and the STANDBY time shown in the display begin to flash. -
Page 8: Sleep Timer
All manuals and user guides at all-guides.com Sleep timer The R737 has a built in sleep timer which will automatically switch off the receiver after the preset time has elapsed. Switch on the receiver and select the required station. Press and hold down the sleep button (7) the timer will count down from 90 minutes in 10 minute steps. -
Page 9: Displaying The Time
All manuals and user guides at all-guides.com Displaying the time Specifications While the radio is playing the time may be displayed by pressing the mode Power Requirements 9.0V button (5) once. After approximately 5 seconds the display will revert to Batteries 6 x IEC R14 (C size) showing frequency. - Page 10 All manuals and user guides at all-guides.com Notes:...
- Page 11 In the event that it is not possible to return the instrument to the Roberts' dealer from whom it was purchased, please contact Roberts Radio service department at the address shown on the rear of this manual before taking further action.
- Page 12 All manuals and user guides at all-guides.com ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:- 020 8758 0338 (Mon-Fri during office hours) Issue 5...
