Summary of Contents for Roberts rp28

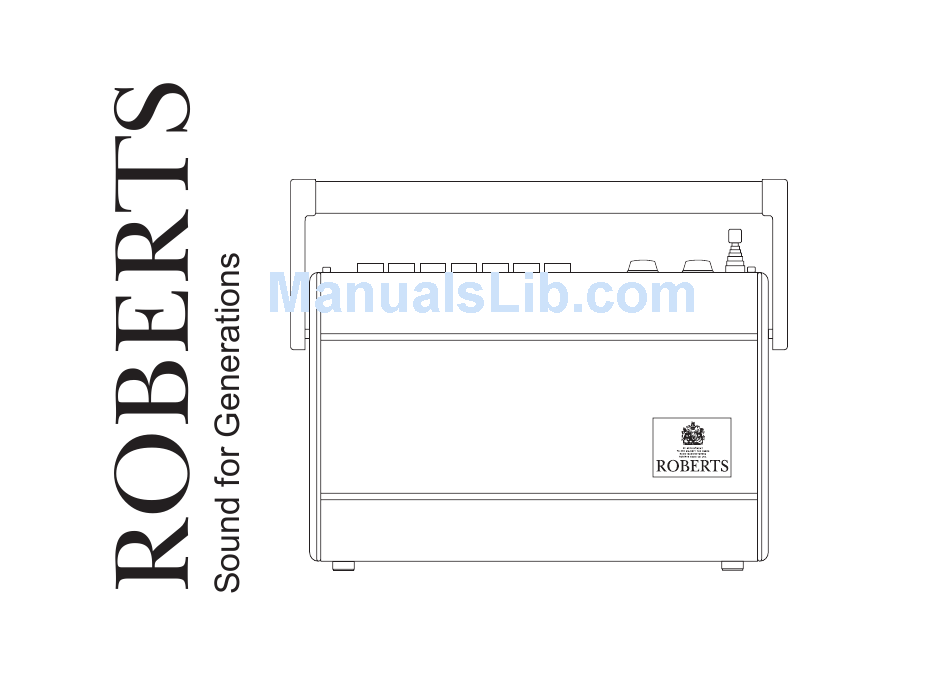

- Page 1 RP28 3 Band Preset Portable Radio Please read this manual before use...
- Page 2 Controls (top panel) 1. ON/OFF button 5. Telescopic aerial 2. AFC button 6. Tuning tool 3. Preset buttons 7. Volume control 4. Headphone socket 8. Tone control 9. Tuning presets...
- Page 3 Controls (LH end) DC 9V PIN -ve PU9-B INPUT 240V 50Hz OUTPUT 9V 300mA 10.DC Socket...
- Page 4 Replace the preset cover. We would recommend for economy, that the RP28 is used via the Using the radio once the presets have been set up Mains adaptor whenever possible with battery operation for occa- Turn on the receiver by pressing the ON/OFF button (1).
- Page 5 Headphones Circuit Features A 3.5mm socket (4) is provided for use with either headphones or an 4 ICs, 4 Transistors, 17 diodes. earpiece. Inserting a plug into this socket automatically mutes the internal loudspeaker. Loudspeaker 100mm 8ohms Specifications Output Power 1watt into 8ohms Power Requirements 9.0V Batteries...
- Page 6 In the event that it is not possible to return the instrument to the Roberts dealer from whom it was purchased, please contact Roberts Radio service department at the address shown on the back page of this manual before taking further action.
- Page 7 ROBERTS RADIO TECHNICAL SERVICES DEPARTMENT 97-99 Worton Road Isleworth Middlesex TW7 6EG Technical Helpline:-020 8758 0338 Issue 4...
