Summary of Contents for Triplett GSM120

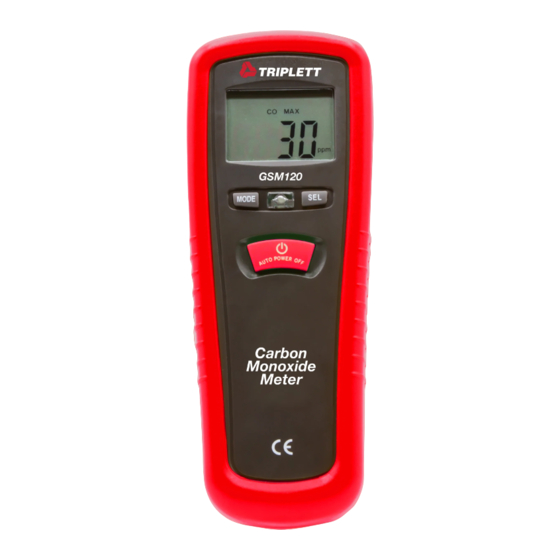

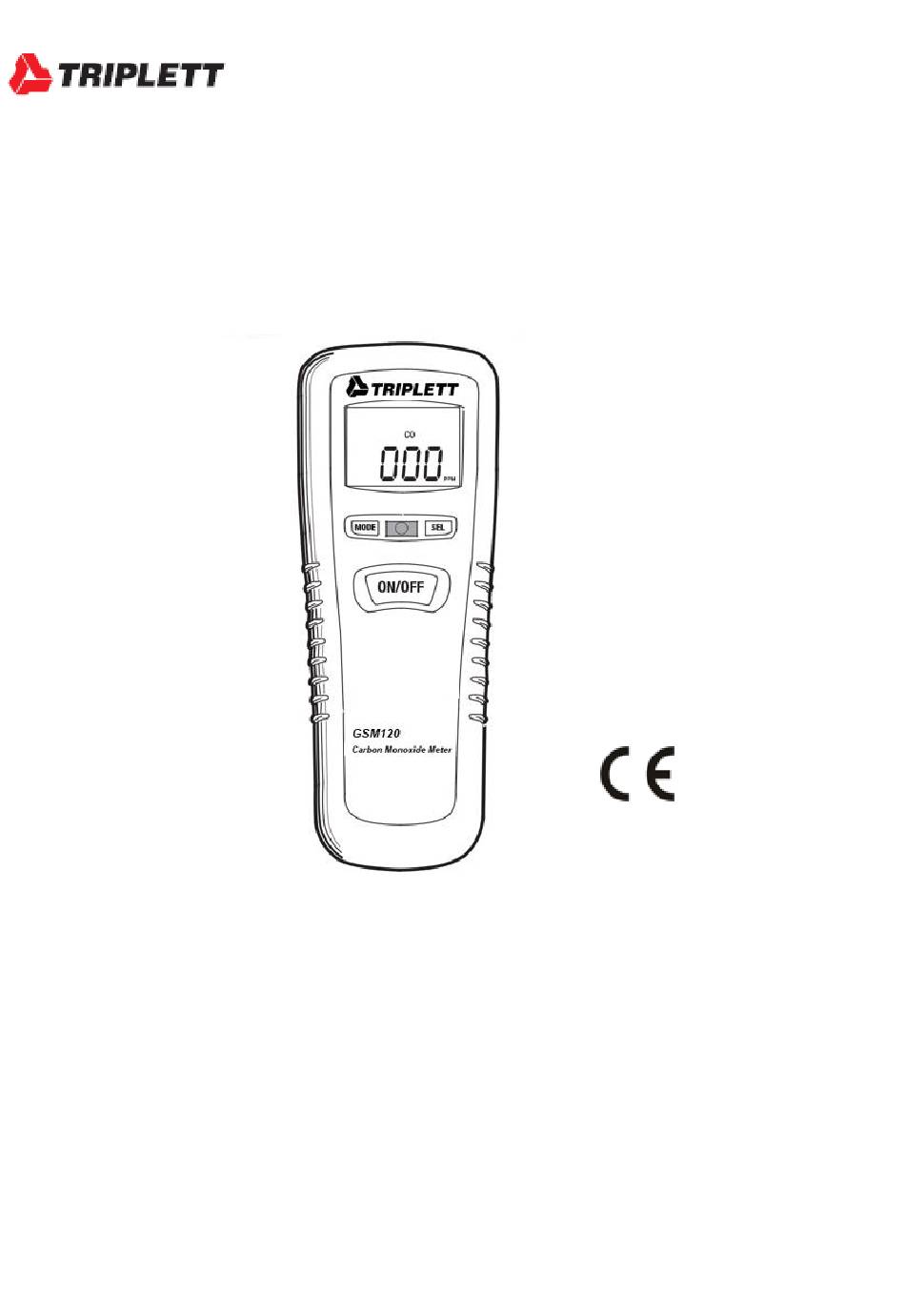

- Page 1 User Manual GSM120 Carbon Monoxide Meter...
- Page 2 Introduction Congratulations on your purchase of the Triplett GSM120 Carbon Monoxide Meter. The GSM120 measures and displays CO concentrations between 0 and 1000 parts per million (ppm). Safety Information Carbon monoxide is life threatening even at relatively low concentrations; learn and recognize the effects of CO poisoning (see Table below). Do not use this meter as a personal safety monitoring device.
- Page 3 Press the ON/OFF button to turn the meter on. Allow time for the meter to perform the self- test and for the display to settle To use the meter, trace the GSM120 around the area of the suspected leak. The meter will indicate the presence of CO (in ppm) on the LCD display. An audible beep will sound at 35 ppm alerting the user that the threshold of dangerous CO levels has been detected.
- Page 4 Backlight In the measure mode press and hold the SEL button for 4 seconds to turn the backlight on/off. Press the MODE button to enter maximum data mode. Specifications Measurement range 0-1000 ppm Resolution 1 ppm Accuracy ±5% or ±10 ppm (whichever is greater) Sensor Type Stabilized electrochemical Gas-specific (CO) Sensor Life (Typical)
- Page 5 Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
