- Page 1 User Manual GSM350 CO/CO2 Meter with Temperature and Humidity GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Meter Description

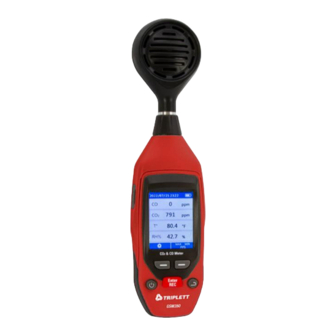

Introduction Congratulations on your purchase of the Triplett GSM350 Carbon Monoxide/Carbon Dioxide IAQ Meter The GSM350 simultaneously displays CO, CO2, Temperature and Humidity. The meter has a real-time clock, datalogs and has user settable alarms for CO/CO2. Meter Description CO/CO2 Sensor... -
Page 3: Max/Min/Avg Mode
Operation Measurement Mode Long press the ON/OFF Button to boot and shutdown. of Time, Battery Power, CO, CO2, Temperature and Humidity in real time, CO will begin a sensor warm up period of 30 seconds and then will start to measure. Click the Left Button to enter the setup page, you can set the Language, Temperature unit switch, data sampling settings, automatic shutdown settings, alarm settings, brightness... -
Page 4: Setup Menu
Setup Menu User Interface allows for the custom setting of Language, Temperature Unit, Data Log sampling rates, Auto Power Off time, Alarm settings, Brightness adjustment, and time settings. Short press Left/Right Button can move cursor, Left Button cursor moves up; Right Button corresponds cursor moves down. -
Page 5: Datalogger Setup
Temperature Units (°C/°F) Setup Unit, (°C or °F) press the Enter Button to enter the temperature unit setting. Short press the Enter button to confirm and return to the settings interface Datalogger Setup to move to the Datalogger settings, Press the Enter Button to enter the data sampling setting interface, The sampling rate, duration, and sleep mode can be set here. - Page 6 Sleep Mode Setup sleep mode setting, then short press Enter Button to enter the sleep mode setting interface. Short press the Enter Button to confirm and return to the datalogger page. Auto Power OFF (APO) Setup Use the cursor to Auto-off, short press Enter Button to enter automatic shutdown setting User can select None, 2min,...
-
Page 7: Alarm Setup
Alarm Setup setting, short press Enter Button to enter the alarm setting. The CO2 alarm value setting is first, a short press of the Left Button increases alarm limit, and a short press of the Right Button decreases the alarm limit short press button to confirm the setting and enter the CO alarm value setting and repeat steps. -
Page 8: Date/Time Setup
Date/Time Setup Date/Time setting , short press the Enter Button to enter the time initialization setting. year, short press Left Button plus, short press Right Button minus. short press Enter Button confirmation into the month settings, and so on set the year. short press Left, or Right Button can achieve switching. - Page 9 History (Page 2) g the selection interface, there are CO2, CO, Temperature and Humidity options. Enter Button to enter the histogram display interface. Histogram Query (Page 3) You can query the real-time data corresponding to the history time and the MAX/MIN/AVG value.
-
Page 10: Maintenance
Maintenance products must be repaired by professionals. s are subject to change. Specifications Function Range Resolution Accuracy 0 to 1000PPM 1PPM ±5% FS 0 to 9999PPM 1PPM ±3% ±75PPM Temper 0 to 50°C/32 to 0.1°C/0.1° ±2°C/±4°F ±3.5% at (20% to 80%) Humidi 0 to 100%RH 0.1%RH... -
Page 11: Warranty
Warranty Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase. This...
