Summary of Contents for Triplett PH180

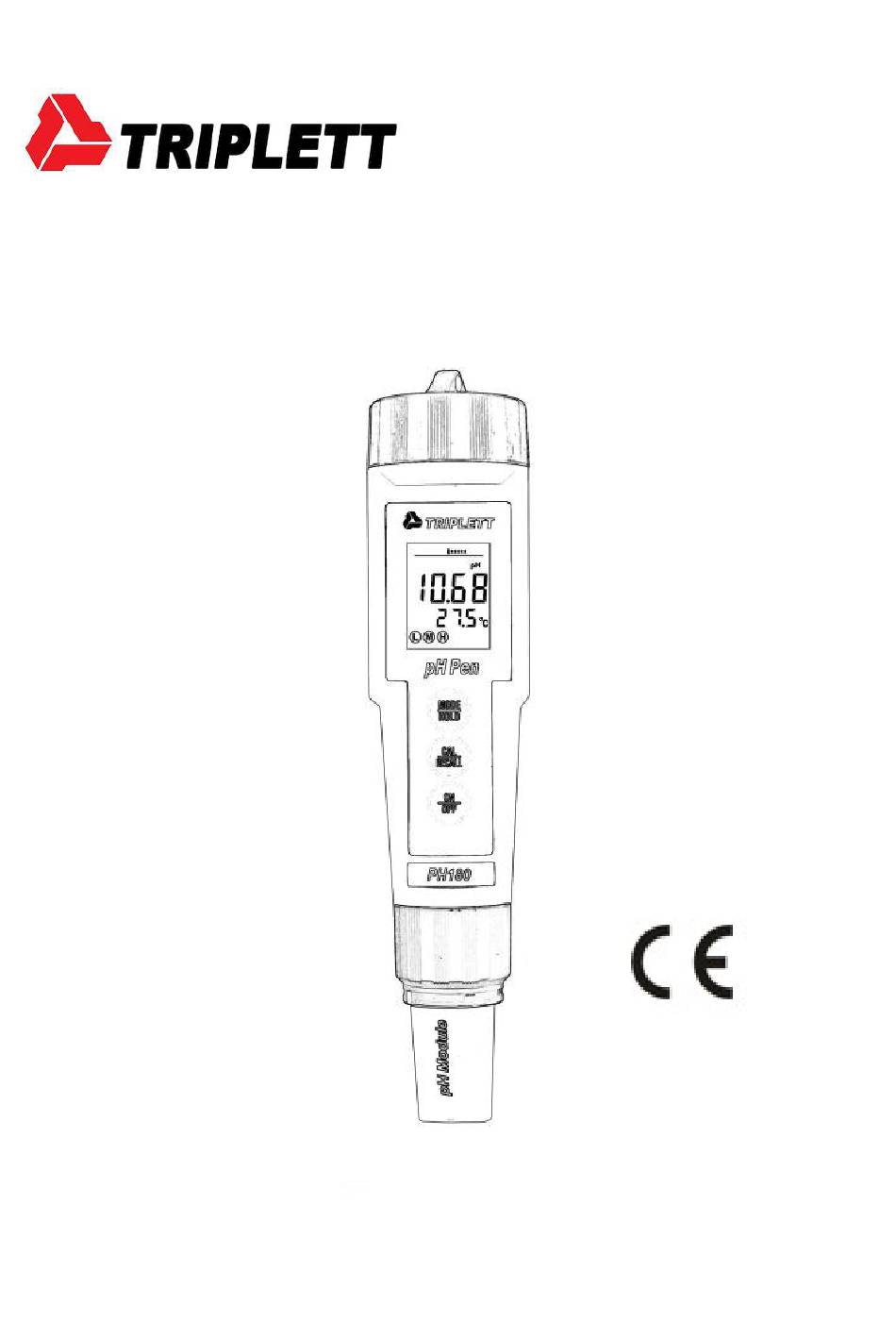

- Page 1 User Manual PH180 Waterproof pH Meter - 0 -...

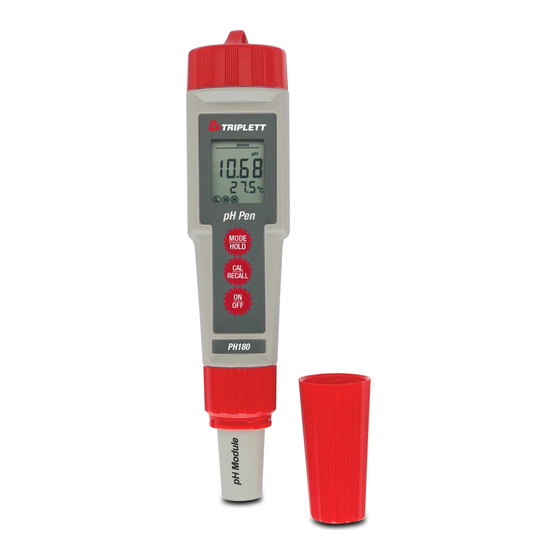

- Page 2 Introduction Thank you for selecting the Triplett PH180 pH meter. This instrument is designed for high accuracy pH testing for solids, semi-solids and liquids. This device is shipped fully tested and calibrated, and with proper use, will provide years of reliable service.
- Page 3 Description METER DESCRIPTION Battery compartment cap LCD Display MODE / HOLD button CAL / RECALL button ON/OFF button Electrode collar Electrode LCD DISPLAY Bar graph reading Measurement Units Main Display RENEW Indicator HOLD Indicator RANGE Calibration Indicator Low Battery Indicator Temperature Display - 2 -...
- Page 4 CAUTION This device is not a toy and must not reach children’s hands. It contains hazardous objects as well as small parts that the children could swallow. In case a child swallows any of them, please contact a physician immediately Do not leave batteries and packing material lying around unattended;...
-
Page 5: Getting Started
For new meters, remove the battery cap and then remove the battery insulating strip. Remove the cap from the bottom of the PH180 to expose the electrode glass surface and reference junction Before first use or after extended storage, soak the electrode (with its cap removed) in a pH 4 solution for about 10 minutes White KCL crystals may be present in the cap. -
Page 6: Operation
If the batteries are weak, the ‘ ’ indicator appears on the LCD. Press the ON/OFF key to turn the PH180 on or off. The auto power off feature shuts the PH180 off automatically after 10 minutes of inactivity to preserve battery life. - Page 7 display. When doing a 2 or 3 point calibration, calibrate with pH 7 buffer first, then follow with pH 4 then the pH 10 buffer. ® 2. The WQ120 automatically recognizes the solution and calibrates itself to that value (the circled number on the LCD will match the solution).
-
Page 8: Recalling Stored Readings
Data Hold Press the MODE/HOLD button to hold (freeze) a reading in the display. The meter will enter the HOLD mode and the “HOLD” indicator will appear. Note: This also stores the reading. Press the MODE/HOLD button again to return to normal operation. Storing Readings into Memory 1. -
Page 9: Auto Power Off Disable
2. The last stored reading will be displayed first. Pressing and releasing the MODE/HOLD button will scroll through the stored readings one at a time. The location number is displayed first, followed by the reading stored in that location. 3. To exit the storage mode, press the CAL/RECALL button and the meter will return to normal operation, after displaying “End”. - Page 10 The next time the unit is powered up, Auto Power OFF mode will be engaged again. CAL Reminder Display When the PH180 is turned on in the pH mode for the 15th time without recalibration, the ‘CAL’ icon appears on the LCD indicating that the PH180 may require calibration. Some applications may require recalibration of the electrode more frequently than others.
-
Page 11: Battery Replacement
Reset Calibration Data Follow this procedure to clear all calibration data from the meter. Resetting the calibration data may be necessary when new calibration solutions are used or accuracy of measurements is in question. Turn off the meter. Press and Hold the Cal/Recall and Mode/Hold buttons. Momentarily press the On/Off button, as soon as the display comes on, release all 3 buttons. -
Page 12: Specifications
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
