User Manual
GSM130
Carbon Monoxide Meter
Introduction

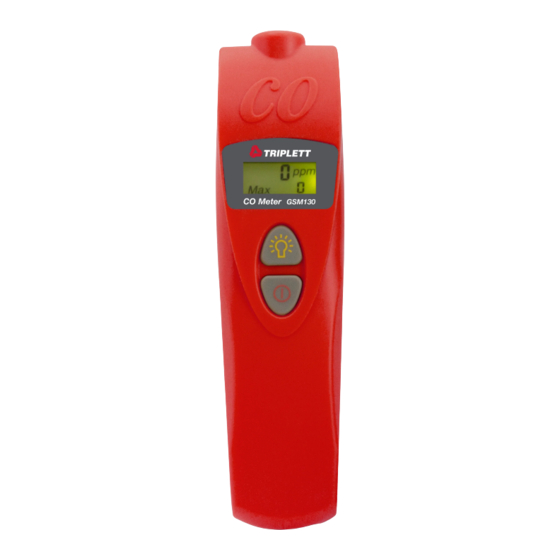

Thank you for selecting the Triplett GSM130 Carbon Monoxide Meter.
The GSM130 is a digital, pen style meter, that measures and displays
carbon monoxide (CO) concentrations between 0 and 999 parts per
million (ppm). The GSM130 can be used for ambient air safety checks of
residential areas, appliances, HVAC service on furnaces and hot water
heaters, home inspections, and industrial environments where the
accumulation of CO is possible.
5 Commonwealth Ave
5 Commonwealth Ave
Woburn, MA 01801
Woburn, MA 01801
Phone 781-665-1400
Phone 781-665-1400
Toll Free 1-800-517-8431
Toll
Visit us at www.TestEquipmentDepot.com
Free 1-800-517-8431
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Triplett GSM130
Summary of Contents for Triplett GSM130
- Page 1 The GSM130 is a digital, pen style meter, that measures and displays carbon monoxide (CO) concentrations between 0 and 999 parts per million (ppm). The GSM130 can be used for ambient air safety checks of residential areas, appliances, HVAC service on furnaces and hot water heaters, home inspections, and industrial environments where the accumulation of CO is possible.
-
Page 2: Safety Information
Air Quality monitoring only, and has not been certified for use pursuant to any state or city safety Carbon Monoxide Alarm or Monitoring requirements. The GSM130 Carbon Monoxide Monitor has not been tested by an independent lab to comply with UL 2034 or IAS 6-96 standard. - Page 3 Effects of Carbon Monoxide (CO) Poisoning Warning: Ensure that the meter is powered on in room temperature and in an area free of CO. If not, the meter will read incorrectly when subsequently measuring CO. 0-1 PPM Normal background levels 9 PPM Maximum allowable short term exposure...
-
Page 4: Lcd Display
Description METER DESCRIPTION 1. CO Sensor 2. LCD Display 3. Backligh/Units Button 4. Power/Alarm Limit Button LCD Display 1. Primary Display 2. MAX reading mode 3. Secondary Display 4. Unit of measure Button Descriptions Turn the meter on and off (short press); Select alarm setpoint value (long press from a powered OFF state;... -
Page 5: Operation
Operation Power the meter IMPORTANT: Power the meter in a room temperature environment and in an area free of CO; otherwise the meter will read incorrectly when subsequently measuring CO. Press the button to power on the meter. The LCD will switch ON and display the programmed CO alarm limit in the primary display and the ambient air temperature in the secondary display (as shown in the LCD description section above). -
Page 6: Change Temperature Units
Change Temperature Units The temperature shows on the display during the self-test only. Power the meter in a room temperature environment for the most accurate readings. Long press button during the self-test to change the temperature units to C or Alarm Settings An audible beep sounds at 25ppm alerting the user to dangerous CO levels. -
Page 7: Maintenance
Maintenance Battery Replacement To access the batteries, remove the rear battery compartment cover by pushing up on the tab at the bottom of the meter. Do not operate the meter with the battery compartment open. Replace the (3) 1.5V AAA batteries observing correct polarity. Re-assemble the meter before use. -
Page 8: Specifications
Specifications Measurement range 0-999 ppm Resolution 1 ppm Accuracy 0 ~ 100 ppm: ± 20% 100 ~ 500 ppm: ± 15% Accuracy stated for ambient conditions: 20 C ±5 C (68 F ±9 and 50% RH ±20%RH Sensor Type Electrochemical Power supply (3) 1.5V ‘AAA’... -
Page 9: Warranty
Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
