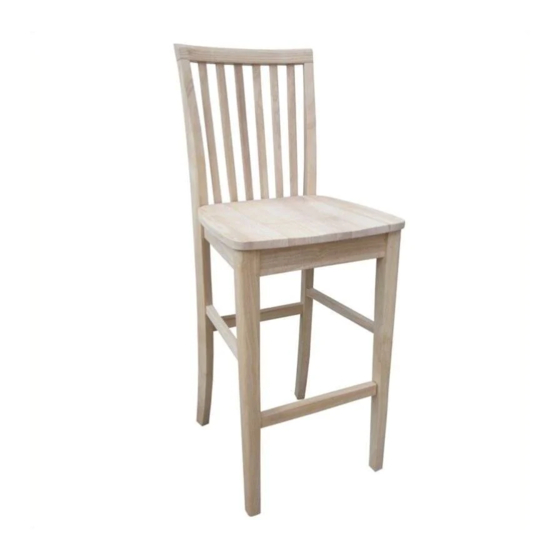

- Page 1 ASSEMBLY INSTRUCTIONS : 30 MISSION STOOL Description : 265-30 Item No. ITEM NO. : 265-30 Printed in Vietnam REVISED JAN 31, 2018 - 1 -...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws, bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO. : 265-30 Printed in Vietnam REVISED JAN 31, 2018 - 2 -...
- Page 3 (M6 x 80mm) (M4 x 50mm) Medium screw Lock Washer (M4 x 35mm) ()6.5 x 11mm) Flat Washer Allen Key ()6.5 x 19mm) (M4 x 30mm x 110mm) ITEM NO. : 265-30 Printed in Vietnam REVISED JAN 31, 2018 - 3 -...
- Page 4 Allen key (8). Attach front stretcher (F) between front legs, and then attach side stretchers (E) to front and back legs with screws (4) as shown below. Tighten with a screwdriver. ITEM NO. : 265-30 Printed in Vietnam REVISED JAN 31, 2018...
- Page 5 STEP 3 Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screw driver. ITEM NO. : 265-30 Printed in Vietnam REVISED JAN 31, 2018 - 5 -...
