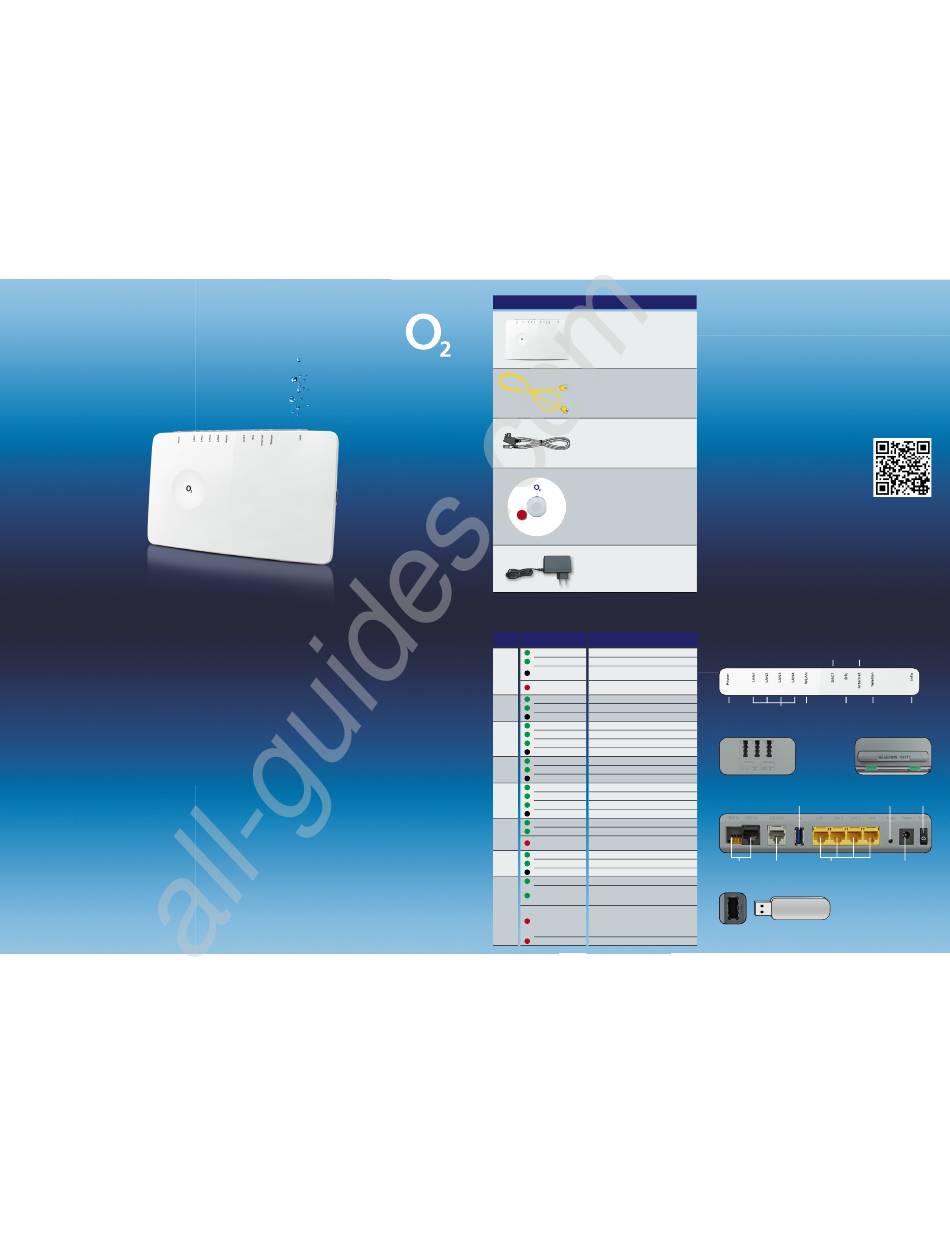

Quick start guide
œ HomeBox 6641
Comprehensive information
You will fi nd detailed information about setting up and confi guring your œ HomeBox 6641 in the comprehensive manual on
the œ CD supplied as well as under http://o2.de/hilfe/o2homebox2.
How to contact us – 7 days a week, 24 hours a day:
On the Internet:
www.dsl.o2.de
Contact options:
www.o2.de/kontakt
By Phone:
+49 (0)89 78 79 79 400*
+49 (0)176 888 55 222*
By Fax:
+49 (0)1805 88 00 88 (€ 0.14/min.)**
* Tariff for calls made to German landlines and mobile networks applies
** From a German landline; maximum charge of € 0.42/min. for calls from mobile networks
Telefónica Germany GmbH & Co. OHG, Postbox 60 09 40, 22209 Hamburg
101508 01/15
All manuals and user guides at all-guides.com
What's in the box?
LED
Power
LAN 1–4
WLAN
DECT
DSL
Internet
Phone
Info

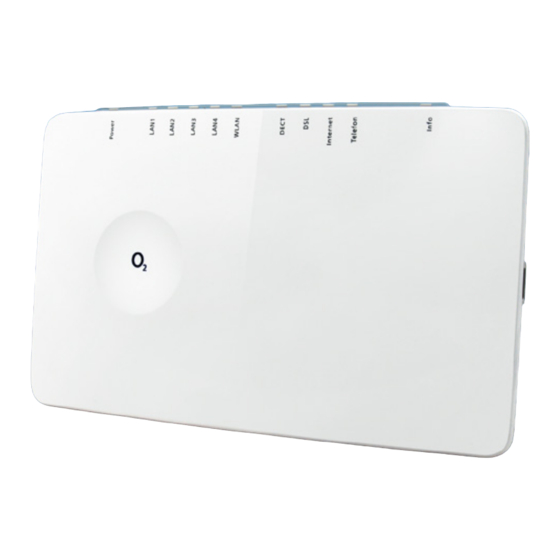

œ HomeBox 6641
LAN cable (yellow)
DSL connecting cable (grey)
œ configuration CD
• Comprehensive manual and
Systemvoraussetzungen
Windows 8 / 7 / Vista /
cabling instructions
XP SP3
Systemvorraussetzungen Telefónica Germany
für die Geräte Telefónica Germany
Windows 7 / Vista / XP œ HomeBox 6641 GmbH & Co. OHG GmbH & Co. OHG
für die Geräte œ Box 4421 80992 München 80992 München
œ Box 6431
œ HomeBox 3232 www.o2online.de www.o2online.de
œ Box 4421 Version Hotline: 55222*
aus dem œ Mobil - Hotline: 55222* • Installation wizard for DSL
œ Box 6431 2.10 - 101505 aus dem œ Netz oder
funknetz oder
Version 0180 40 55 222* 0180 40 55 222*
1.00 - 101457 aus dem dt. Festnetz aus dem dt. Festnetz
Wichtig. Legen
Sie bitte zuerst * 20 Ct./Anruf * 20 Ct./Anruf
diese CD ein.
and WLAN (Windows 8 / 7 /
Wichtig. Legen
Sie bitte zuerst
diese CD ein. Konfi gurations-CD
Es wird keine Software installiert
Konfi gurations-CD
Handbücher inklusive Vista)
Es wird keine Software installiert
Handbücher inklusive
Power adapter
Signal Status
Flashing System is starting up
Lights up constantly The system has started and is operating
Power supply disconnected or general equipment
Off
fault
The unit's software is updating; unit is restarting
Lights up constantly
or resetting
Flashing Transferring data
Lights up constantly Active connection
Off No active connection
Flashing quickly Transferring data
Lights up constantly WLAN active
Flashing WPS activated
Off WLAN not active
Lights up constantly DECT function on
Flashing DECT scanning for new unit
Off DECT function off
Flashing slowly Pilot signal transmitting
Flashing quickly The œ HomeBox 6641 is being synchronised.
Lights up constantly DSL connection successfully established
Off Internal DSL fault
Flashing Transferring data
Lights up constantly Internet connection established
Faulty access details
Flashing quickly
(e.g. incorrect password)
Flashing
Active call
Lights up constantly Active line
Off Line not active
Flashing quickly Authentication in progress
PIN OK; œ phone connection established; when
Lights up constantly the unit has completed registration with œ, the
Info LED will disappear
1. œHomeBox 6641 is waiting for a PIN
to be entered
Lights up constantly 2. Incorect PIN, waiting to re-enter PIN
3. Maximum authentication attempts
(5 times) reached
Flashing quickly PIN OK; waiting for authentication
We appreciate you choosing of œ
and hope that you will now enjoy
the many benefi ts of your new DSL
connection.
Do you need help with the
installation?
Scan the QR code or visit
our website under
http://o2.de/hilfe/o2homebox2
to take a look at the installation
video for the œ HomeBox 6641.
Note: After setting up the router, also install the DSL Soforthilfe
from the folder area on the œ CD or from our website. This free
œ software helps you with access to the Internet and optimises
your WLAN connection
Your œ HomeBox in detail
DECT Internet

LED view

Power LAN 1–4 WLAN DSL Phone
Rear side
WLAN/WPS
and DECT
push-buttons
USB (e.g. Printer
or HDD) Reset
So ISDN
DSL LAN 1–4 Power
Side view USB connection
e.g. USB mass storage
Info
On/Off
switch
