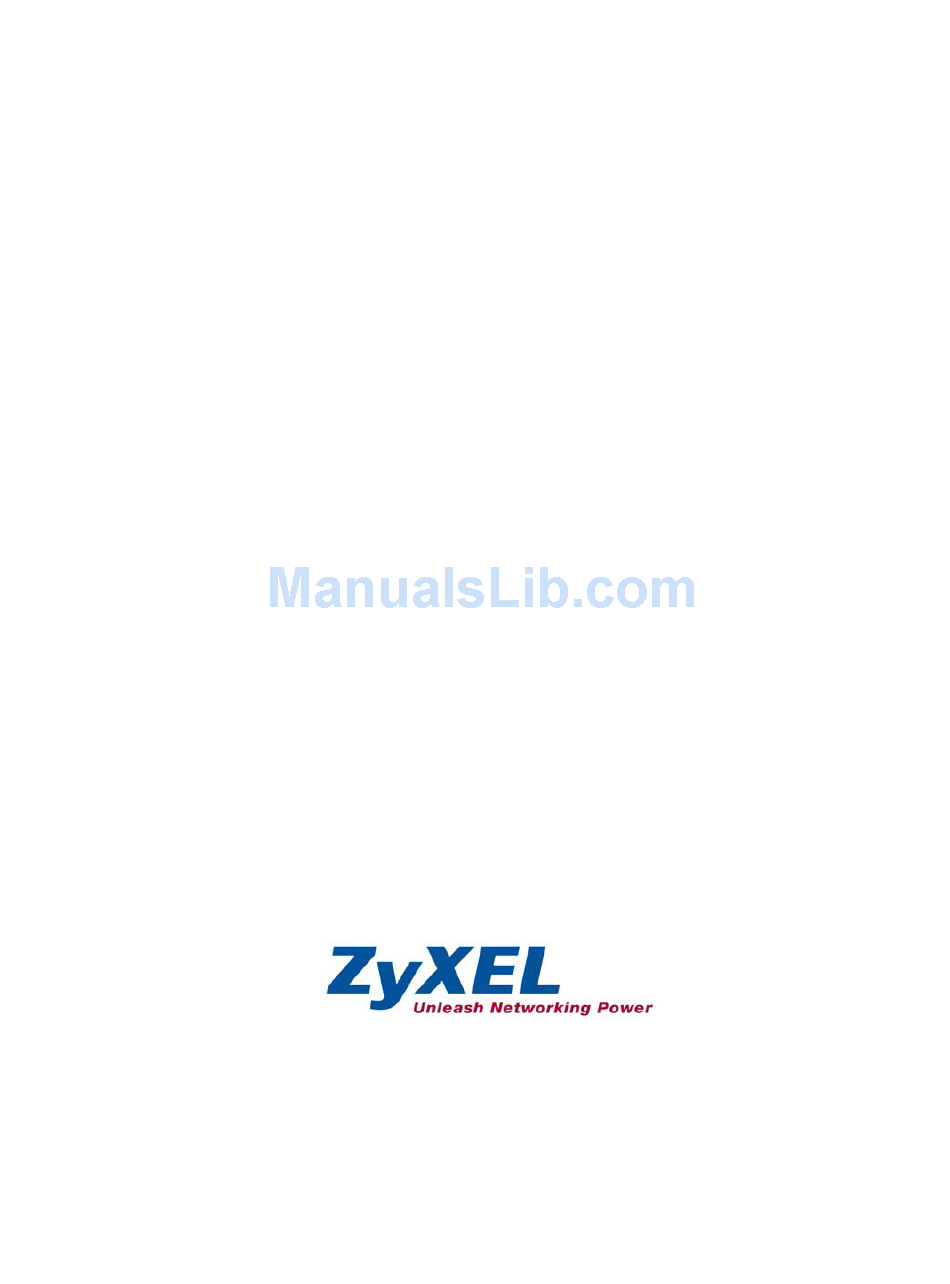

  • Page 1 Dimension ES-3124 Ethernet Switch December 2004 Version 3.50(TP.0) User’s Guide...
  • Page 2 ZyXEL Communications Corporation. Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein.

  • Page 3: Zyxel Limited Warranty

    Dimension ES-3124 Ethernet Switch ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two (2) years from the date of purchase. During the warranty period and upon...

  • Page 4: Interference Statements And Warnings

    Dimension ES-3124 Ethernet Switch Interference Statements and Warnings FCC Interference Statement This switch complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This switch may not cause harmful interference. (2) This switch must accept any interference received, including interference that may cause undesired operations.

  • Page 5: Customer Support

    Dimension ES-3124 Ethernet Switch Customer Support If you have questions about your ZyXEL product or desire assistance, contact ZyXEL Communications Corporation offices worldwide, in one of the following ways: Contacting Customer Support When you contact your customer support representative, have the following information ready: ♦...

  • Page 7: Table Of Contents

    Copyright....................................... ii ZyXEL Limited Warranty ................................iii Interference Statements and Warnings ............................. iv Customer Support ..................................v Preface...................................... xviii Chapter 1 Getting to Know the ES-3124 ..........................1-1 Features ..............................1-1 1.1.1 Hardware Features..........................1-1 1.1.2 Firmware Features..........................1-2 Applications ............................... 1-3 1.2.1...
  • Page 8 Dimension ES-3124 Ethernet Switch 4.5.4 Help ..............................4-9 Chapter 5 System Status and Port Details.......................... 5-1 About System Statistics and Information ....................5-1 Port Status Summary..........................5-1 5.2.1 Port Details ............................5-2 Chapter 6 Basic Setting ................................ 6-1 Introducing The Basic Setting Screens ..................... 6-1 System Information............................
  • Page 9 Dimension ES-3124 Ethernet Switch Chapter 13 Mirroring................................. 13-1 13.1 Introduction to Port Mirroring........................13-1 13.2 Port Mirroring Configuration ........................13-1 Chapter 14 Link Aggregation ............................14-1 14.1 Introduction to Link Aggregation......................14-1 14.1.1 Dynamic Link Aggregation......................14-1 14.1.2 Link Aggregation ID ........................14-1 14.2...
  • Page 10 Dimension ES-3124 Ethernet Switch Chapter 21 VLAN Stacking............................... 21-1 21.1 Introduction .............................. 21-1 21.1.1 VLAN Stacking Example........................21-1 21.2 VLAN Stacking Roles..........................21-2 21.3 VLAN Tag Format ............................ 21-2 21.3.1 Frame Format ..........................21-3 21.4 Configuring VLAN Stacking ........................21-3 Chapter 22 Routing Protocol ............................
  • Page 11 Dimension ES-3124 Ethernet Switch 28.2.4 ip Commands ..........................28-14 28.2.5 ether Command ..........................28-17 28.2.6 config Command ........................... 28-17 Chapter 29 Command Examples ............................. 29-1 29.1 Commonly Used Commands Overview ....................29-1 29.2 sys Commands............................29-1 29.2.1 sys log disp............................29-1 29.2.2...
  • Page 12 Dimension ES-3124 Ethernet Switch Product Specifications ..............................A-1 Index ....................................B-1 Table of Contents...
  • Page 13 Figure 2-1 Attaching Rubber Feet ...............................2-1 Figure 2-2 Attaching Mounting Brackets and Screws.........................2-2 Figure 2-3 Mounting the ES to an EIA standard 19-inch rack ....................2-2 Figure 3-1 ES-3124 Front Panel..............................3-1 Figure 3-2 Transceiver Installation Example..........................3-4 Figure 3-3 Installed Transceiver..............................3-4 Figure 3-4 Opening the Transceiver’s Latch Example ........................3-5 Figure 3-5 Transceiver Removal Example ..........................3-5...
  • Page 14 Dimension ES-3124 Ethernet Switch Figure 9-1 Filtering ..................................9-1 Figure 9-2 Filtering: Summary Table............................9-2 Figure 10-1 Spanning Tree Protocol: Status..........................10-3 Figure 10-2 Spanning Tree Protocol: Configuring........................10-5 Figure 11-1 Bandwidth Control ..............................11-1 Figure 12-1 Broadcast Storm Control ............................12-2 Figure 13-1 Mirroring ................................
  • Page 15 Dimension ES-3124 Ethernet Switch Figure 25-5 Configuring Cluster Management .........................25-5 Figure 26-1 MAC Table Flowchart ............................26-1 Figure 26-2 MAC Table ................................26-2 Figure 27-1 ARP Table ................................27-2 Figure 28-1 CLI Help: Sample Output............................28-2 Figure 29-1 sys log disp Command Example..........................29-1 Figure 29-2 sys version Command Example..........................29-2 Figure 29-3 sys monitor status Command Example........................29-2...
  • Page 16 Dimension ES-3124 Ethernet Switch List of Tables Table 3-1 ES-3124: Front Panel Ports............................3-1 Table 3-2 ES-3124: LED Descriptions............................3-6 Table 4-1 Navigation Panel Sub-links Overview ........................4-3 Table 4-2 Web Configurator Screen Sub-links Details........................ 4-3 Table 4-3 Navigation Panel Sub-link Descriptions ........................4-4 Table 5-1 Status...................................
  • Page 17 Dimension ES-3124 Ethernet Switch Table 19-2 Classifier: Summary Table ............................19-4 Table 19-3 Common Ethernet Types and Protocol Number ......................19-4 Table 19-4 Common IP Ports ..............................19-5 Table 20-1 Policy ..................................20-3 Table 20-2 Policy: Summary Table ............................20-5 Table 21-1 VLAN Stacking...............................21-4 Table 22-1 Static Routing................................22-1 Table 22-2 Static Routing: Summary Table..........................22-2...

  • Page 18: Preface

    Dimension ES-3124 Ethernet Switch Preface Congratulations on your purchase from the Dimension series of Ethernet switches. This preface introduces you to the ES-3124 and discusses the conventions of this User’s Guide. It also provides information on other related documentation. About the ES-3124 The ES-3124 Ethernet switch is a managed switch with features ideally suited in any environment with unshielded twisted pair (UTP) wiring.

  • Page 19: User Guide Feedback

    Dimension ES-3124 Ethernet Switch Naming Conventions • The ES-3124 Ethernet Switch may be referred to as the ES-3124, the switch or, simply, as the device. • This user’s guide refers an Ethernet device as a switch in general for feature background information.

  • Page 21: Features And Applications

    Features and Applications Part I Features and Applications This part acquaints you with the features and applications of the ES-3124.

  • Page 23: Getting To Know The Es-3124

    This chapter describes the key features, benefits and applications of the ES-3124. The ES-3124 is a stand-alone layer 2 Ethernet switch with 24 10/100Mbps ports, two RJ-45 Gigabit (1Gbps or 1000Mbps)/mini GBIC (Gigabit Interface Converter) combo ports for uplink, two RJ-45 Gigabit ports for stacking and a console port and a management port for local management.

  • Page 24: Firmware Features

    Dimension ES-3124 Ethernet Switch Console Port Use the console port for local management of the switch. Fans The fans cool the ES-3124 sufficiently to allow reliable operation of the switch in even poorly ventilated rooms or basements. 1.1.2 Firmware Features...

  • Page 25: Applications

    The ES-3124 supports rate limiting in 1Mbps increments allowing you to create different service plans. The ES-3124 supports IGMP snooping enabling group multicast traffic to be only forwarded to ports that are members of that group; thus allowing you to significantly reduce multicast traffic passing through your switch.

  • Page 26: Bridging Example

    You can provide a super- fast uplink connection by using an uplink port on the ES-3124. Moreover, the switch eases supervision and maintenance by allowing network managers to centralize multiple servers at a single location.

  • Page 27: High Performance Switched Workgroup Example

    Ethernet cables and adapter cards, restructuring your network and complex maintenance. The ES-3124 can provide the same bandwidth as FDDI and ATM at much lower cost while still being able to use existing adapters and switches. Moreover, the current LAN structure can be retained as all ports can freely communicate with each other.

  • Page 28: Figure 1-4 Vlan Workgroup Application

    Shared resources such as a server can be used by all ports in the same VLAN as the server, as shown in the following example. In this example, only ports that need access to the server need belong to VLAN 3 while they can belong to other VLAN groups too. Figure 1-5 Shared Server Using VLAN Example Getting to Know the ES-3124...
  • Page 29 Hardware Installation & Connections Part II Hardware Installation & Connections This part acquaints you with installation scenarios of the ES-3124, instructs you on how to make the hardware connections, shows some stacking/uplink examples and explains the front panel LEDs.

  • Page 31: Chapter 2 Hardware Installation

    Dimension ES-3124 Ethernet Switch Chapter 2 Hardware Installation This chapter shows two switch installation scenarios. 2.1 Installation Scenarios The switch can be placed on a desktop or rack-mounted on a standard EIA rack. Use the rubber feet in a desktop installation and the brackets in a rack-mounted installation.

  • Page 32: Rack-Mounted Installation

    Dimension ES-3124 Ethernet Switch 2.1.2 Rack-Mounted Installation The switch can be mounted on an EIA standard size, 19-inch rack or in a wiring closet with other equipment. Follow the steps below to mount your switch on a standard EIA rack using a rack-mounting kit.

  • Page 33: Chapter 3 Hardware Connections

    3.2 Front Panel The following figure shows the front panel of the ES-3124. The front panel contains switch LEDs, 24 RJ-45 Ethernet ports, four RJ-45 Gigabit ports, 2 mini GBIC ports, and a console port and a management port for local switch management.

  • Page 34: Console Port

    No parity, 8 data bits, 1 stop bit No flow control Connect the male 9-pin end of the console cable to the console port of the ES-3124 switch. Connect the female end to a serial port (COM1, COM2 or other COM port) of your computer.

  • Page 35: Mini Gbic Slots

    These are slots for mini GBIC (Gigabit Interface Converter) transceivers. A transceiver is a single unit that houses a transmitter and a receiver. The ES-3124 does not come with transceivers. You must use transceivers that comply with the Small Form-factor Pluggable (SFP) Transceiver MultiSource Agreement (MSA). See the SFF committee’s INF-8074i specification Rev 1.0 for details.

  • Page 36: Figure 3-2 Transceiver Installation Example

    Dimension ES-3124 Ethernet Switch Figure 3-2 Transceiver Installation Example Figure 3-3 Installed Transceiver Transceiver Removal Use the following steps to remove a mini GBIC transceiver (SFP module). Open the transceiver’s latch (latch styles vary). Pull the transceiver out of the slot.

  • Page 37: Management Port

    The default IP address of the management port is 192.168.0.1 with a subnet mask of 255.255.255.0 3.3 Rear Panel The following figure shows the rear panel of the ES-3124. The rear panel contains the ventilation holes, a connector for external backup power supply (BPS) and the power receptacle.

  • Page 38: Power Connector

    Make sure you are using the correct power source as shown on the panel. To connect the power to the ES-3124, insert the female end of power cord to the power receptacle on the rear panel. Connect the other end of the supplied power cord to a 100~240VAC/1.5A power outlet. Make sure that no objects obstruct the airflow of the fans (located on the side of the unit).
  • Page 39 Dimension ES-3124 Ethernet Switch Table 3-2 ES-3124: LED Descriptions COLOR STATUS DESCRIPTION Green The system is turned on. The system is off. Green Blinking The system is rebooting and performing self-diagnostic tests. The system is on and functioning properly. The power is off or the system is not ready/malfunctioning.

  • Page 40: Stacking Scenario Examples

    Dimension ES-3124 Ethernet Switch 3.5 Stacking Scenario Examples Use Ethernet cables when stacking the switches. See the following figures for example stacking scenarios using the stacking ports. The switches must form a closed ring in all scenarios. Figure 3-8 Stacking Example 1...

  • Page 41: Uplink Scenario Example

    Dimension ES-3124 Ethernet Switch Figure 3-10 Stacking Example 3 See the Commands Introduction and Commonly Used Commands chapters for information on configuring the stacking ports (as well as other ports) using line commands. 3.6 Uplink Scenario Example Use Ethernet cables when daisy-chaining/uplinking the switches. See the following figure for an example uplink connection using the stacking module.

  • Page 42: Configuring The Es-3124

    Figure 3-11 Uplink Example 3.7 Configuring the ES-3124 You may use the embedded web configurator or command line interface to configure the ES-3124. If you’re using the web configurator, you need Internet Explorer 5.5 and later or Netscape Navigator 6 and later.

  • Page 43: Getting Started

    Getting Started Part III Getting Started This part introduces you to the ES-3124 web configurator, describes the Home and System Info screens and shows you how to configure the Basic Settings menus.

  • Page 45: Introducing The Web Configurator

    Dimension ES-3124 Ethernet Switch Chapter 4 Introducing the Web Configurator This section introduces the configuration and functions of the web configurator. 4.1 Introduction The embedded web configurator allows you to manage the switch from anywhere through a standard browser such as Microsoft Internet Explorer or Netscape Navigator.

  • Page 46: Status Screen

    Dimension ES-3124 Ethernet Switch 4.3 Status Screen The Status screen is the first web configurator screen you see after you log in. The following figure shows the navigating components of a web configurator screen. Click here for help on Navigation Panel.

  • Page 47: Table 4-1 Navigation Panel Sub-Links Overview

    Dimension ES-3124 Ethernet Switch Table 4-1 Navigation Panel Sub-links Overview BASIC SETTING ADVANCED ROUTING PROTOCOL MANAGEMENT APPLICATION The following table lists the various web configurator screens within the sub-links. Table 4-2 Web Configurator Screen Sub-links Details BASIC SETTING ADVANCED ROUTING PROTOCOL...

  • Page 48: Table 4-3 Navigation Panel Sub-Link Descriptions

    Dimension ES-3124 Ethernet Switch Table 4-2 Web Configurator Screen Sub-links Details BASIC SETTING ADVANCED ROUTING PROTOCOL MANAGEMENT APPLICATIONS Port Authentication RADIUS 802.1x Port Security Access Control SNMP Logins Service Access Control Remote Management Queuing Method Classifier Policy Rule VLAN Stacking The following table summarizes these sub-links in the navigation panel.

  • Page 49: Change Your Password

    This link takes you to a screen where you can configure VLAN stacking. Routing Protocol Static Routing This link takes you to screens where you can configure static routes. A static route defines how the ES-3124 should forward traffic by configuring the TCP/IP parameters manually. Management Maintenance This link takes you to screens where you can perform firmware and configuration file maintenance as well as reboot the system.

  • Page 50: Switch Lockout

    Be careful not to lock yourself and others out of the switch. 4.5 Resetting the Switch If you lock yourself (and others) from the switch or forget the ES-3124 password, you will need to reload the factory-default configuration file or reset the switch back to the factory defaults.

  • Page 51: Reload The Configuration File

    Dimension ES-3124 Ethernet Switch 4.5.1 Reload the Configuration file Uploading the factory-default configuration file replaces the current configuration file with the factory-default configuration file. This means that you will lose all previous configurations and the speed of the console port will be reset to the default of 9600bps with 8 data bit, no parity, one stop bit and flow control set to none.

  • Page 52: Reset To The Factory Defaults

    Dimension ES-3124 Ethernet Switch Bootbase Version: V0.6 | 10/01/2004 16:19:45 RAM:Size = 32 Mbytes DRAM POST: Testing: 32768K OK DRAM Test SUCCESS ! FLASH: Intel 32M ZyNOS Version: V3.50(TP.0) | 10/01/2004 16:20:38 Press any key to enter debug mode within 3 seconds.

  • Page 53: Help

    Dimension ES-3124 Ethernet Switch Click Logout in a screen to exit the web configurator. You have to log in with your password again after you log out. This is recommended after you finish a management session both for security reasons and so as you don’t lock out other switch administrators.

  • Page 55: System Status And Port Details

    Dimension ES-3124 Ethernet Switch Chapter 5 System Status and Port Details This chapter describes the system status (web configurator home page) and port details screens. 5.1 About System Statistics and Information The home screen of the web configurator displays a port statistical summary with links to each port showing statistical details.

  • Page 56: Port Details

    Dimension ES-3124 Ethernet Switch Table 5-1 Status LABEL DESCRIPTION System up Time This field shows how long the system has been running since the last time it was started. Port This identifies the Ethernet port. Click a port number to display the Port Details screen (refer to Section 5.2.1).

  • Page 57: Figure 5-2 Status: Port Details

    Dimension ES-3124 Ethernet Switch Figure 5-2 Status: Port Details The following table describes the labels in this screen. Table 5-2 Status: Port Details LABEL DESCRIPTION Port Info System Status and Port Details...
  • Page 58 Dimension ES-3124 Ethernet Switch Table 5-2 Status: Port Details LABEL DESCRIPTION Port NO. This field identifies the Ethernet port described in this screen. Link This field shows whether the Ethernet connection is down, and the speed/duplex mode. Status This field shows the training state of the ports. The states are FORWARDING (forwarding), which means the link is functioning normally or STOP (the port is stopped to break a loop or duplicate path).
  • Page 59 Dimension ES-3124 Ethernet Switch Table 5-2 Status: Port Details LABEL DESCRIPTION Multiple This is a count of successfully transmitted frames for which transmission was inhibited by more than one collision. Excessive This is a count of frames for which transmission failed due to excessive collisions. Excessive collision is defined as the number of maximum collisions before the retransmission count is reset.

  • Page 61: Chapter 6 Basic Setting

    Dimension ES-3124 Ethernet Switch Chapter 6 Basic Setting This chapter describes how to configure the System Info, General Setup, Switch Setup, IP Setup and Port Setup screens. 6.1 Introducing The Basic Setting Screens The System Info screen displays general switch information (such as firmware version number) and hardware polling information (such as fan speeds).

  • Page 62: Figure 6-1 System Info

    Dimension ES-3124 Ethernet Switch Figure 6-1 System Info The following table describes the labels in this screen. Table 6-1 System Info LABEL DESCRIPTION System Name This field displays the switch 's model name. OS F/W Version This field displays the version number of the switch 's current firmware including the date created.

  • Page 63: General Setup

    Dimension ES-3124 Ethernet Switch Table 6-1 System Info LABEL DESCRIPTION Temperature MAC, CPU and PHY refer to the location of the temperature sensors on the switch printed circuit board. Current This field displays the current temperature measured at this sensor.

  • Page 64: Figure 6-2 General Setup

    Dimension ES-3124 Ethernet Switch Figure 6-2 General Setup The following table describes the labels in this screen. Table 6-2 General Setup LABEL DESCRIPTION System Name Choose a descriptive name for identification purposes. This name consists of up to 32 printable characters; spaces are not allowed.
  • Page 65 Before you specify the priority, make sure you have set up the corresponding database correctly first. Select Local Only to have the ES-3124 just check the local user accounts configured in the Access Control Logins screen. Select Local then RADIUS to have the ES-3124 check the local user accounts configured in the Access Control Logins screen.

  • Page 66: Introduction To Vlans

    Dimension ES-3124 Ethernet Switch 6.4 Introduction to VLANs A VLAN (Virtual Local Area Network) allows a physical network to be partitioned into multiple logical networks. Devices on a logical network belong to one group. A device can belong to more than one group. With VLAN, a device cannot directly talk to or hear from devices that are not in the same group(s);...

  • Page 67: Figure 6-3 Switch Setup

    Dimension ES-3124 Ethernet Switch Figure 6-3 Switch Setup The following table describes the labels in this screen. Table 6-3 Switch Setup LABEL DESCRIPTION EXAMPLE VLAN Type Choose 802.1Q or Port Based from the drop-down list box. The VLAN Setup 802.1Q screen changes depending on whether you choose 802.1Q VLAN Type or Port...
  • Page 68 Dimension ES-3124 Ethernet Switch Table 6-3 Switch Setup LABEL DESCRIPTION EXAMPLE GARP Timer: Switches join VLANs by making a declaration. A declaration is made by issuing a Join message using GARP. Declarations are withdrawn by issuing a Leave message. A Leave All message terminates all registrations.

  • Page 69: Ip Setup

    Dimension ES-3124 Ethernet Switch 6.7 IP Setup Use the IP Setup screen to configure the default gateway device, the default domain name server and add IP domains. Figure 6-4 IP Setup To set the default gateway device and the domain name server on the switch, click IP Setup in the navigation panel and set the related fields.

  • Page 70: Port Setup

    If you change this IP address, make sure the computer connected to this management port is in the same subnet before accessing the ES-3124. IP Subnet Mask Enter the IP subnet mask of your switch in dotted decimal notation for example 255.255.255.0.

  • Page 71: Figure 6-5 Port Setup

    Dimension ES-3124 Ethernet Switch Figure 6-5 Port Setup The following table describes the fields in this screen. Basic Setting 6-11...

  • Page 72: Table 6-5 Port Setup

    Dimension ES-3124 Ethernet Switch Table 6-5 Port Setup LABEL DESCRIPTION Port This is the port index number. Active Select this check box to enable a port. The factory default for all ports is enabled. A port must be enabled for data transmission to occur.

  • Page 73: Advanced Application

    Advanced Application 1 Part IV Advanced Application 1 This part shows you how to configure the VLAN, Static MAC Forwarding, Filtering, STP and Bandwidth Control Advanced Application screens.

  • Page 75: Chapter 7 Vlan

    Dimension ES-3124 Ethernet Switch Chapter 7 VLAN The type of screen you see here depends on the VLAN Type you selected in the Switch Setup screen. This chapter shows you how to configure 802.1Q tagged and port-based VLANs. See the General, Switch and IP Setup chapter for more information.

  • Page 76: Table 7-1 Garp Terminology

    Dimension ES-3124 Ethernet Switch GARP GARP (Generic Attribute Registration Protocol) allows network switches to register and de-register attribute values with other GARP participants within a bridged LAN. GARP is a protocol that provides a generic mechanism for protocols that serve a more specific application, for example, GVRP.

  • Page 77: Port Vlan Trunking

    Dimension ES-3124 Ethernet Switch 7.1.3 Port VLAN Trunking Enable VLAN Trunking on a port to allow frames belonging to unknown VLAN groups to pass through that port. This is useful if you want to set up VLAN groups on end devices without having to configure the same VLAN groups on intermediary devices.

  • Page 78: Figure 7-3 802.1Q Vlan Status

    Dimension ES-3124 Ethernet Switch Figure 7-3 802.1Q VLAN Status The following table describes the labels in this screen. Table 7-2 802.1Q VLAN Status LABEL DESCRIPTION The Number of This is the number of VLANs configured on the switch. VLAN Index This is the VLAN index number.

  • Page 79: Q Vlan Port Settings

    Dimension ES-3124 Ethernet Switch Table 7-2 802.1Q VLAN Status LABEL DESCRIPTION Previous/Next Page Click one of these buttons to show the previous/next screen if all status information cannot be seen in one screen. 7.2.1 802.1Q VLAN Port Settings To configure the 802.1Q VLAN settings on a port, click the VLAN Port Settings link in the VLAN Status screen.

  • Page 80: Q Static Vlan

    Dimension ES-3124 Ethernet Switch The following table describes the labels in this screen. Table 7-3 802.1Q VLAN Port Settings LABEL DESCRIPTION GVRP GVRP (GARP VLAN Registration Protocol) is a registration protocol that defines a way for switches to dynamically register necessary VLAN members on ports across the network.

  • Page 81: Figure 7-5 802.1Q Static Vlan

    Dimension ES-3124 Ethernet Switch Figure 7-5 802.1Q Static VLAN The following table describes the labels in this screen. VLAN...

  • Page 82: Viewing And Editing Vlan Settings

    Dimension ES-3124 Ethernet Switch Table 7-4 802.1Q Static VLAN LABEL DESCRIPTION Active Select this check box to enable the VLAN. Name Enter a descriptive name for this VLAN group for identification purposes. VLAN Group ID Enter the VLAN ID for this static VLAN entry; the valid range is between 1 and 4094.

  • Page 83: Figure 7-7 Vid1 Example Screen

    Dimension ES-3124 Ethernet Switch VID1 Example Screen Figure 7-7 VID1 Example Screen VLAN...

  • Page 84: Introduction To Port-Based Vlans

    Dimension ES-3124 Ethernet Switch 7.3 Introduction to Port-based VLANs Port-based VLANs are VLANs where the packet forwarding decision is based on the destination MAC address and its associated port. Port-based VLANs require allowed outgoing ports to be defined for each port. Therefore, if you wish to allow two subscriber ports to talk to each other, for example, between conference rooms in a hotel, you must define the egress (an egress port is an outgoing port, that is, a port through which a data packet leaves) for both ports.

  • Page 85: Figure 7-8 Port Based Vlan Setup (All Connected)

    Dimension ES-3124 Ethernet Switch Figure 7-8 Port Based VLAN Setup (All Connected) VLAN 7-11...

  • Page 86: Figure 7-9 Port Based Vlan Setup (Port Isolation)

    Dimension ES-3124 Ethernet Switch Figure 7-9 Port Based VLAN Setup (Port isolation) The following table describes the labels in this screen. 7-12 VLAN...

  • Page 87: Table 7-6 Port Based Vlan Setup

    Dimension ES-3124 Ethernet Switch Table 7-6 Port Based VLAN Setup LABEL DESCRIPTION Setting Wizard Choose from All connected or Port isolation. All connected means all ports can communicate with each other, that is, there are no virtual LANs. All incoming and outgoing ports are selected (Figure 7-8). This option is the most flexible but also the least secure.

  • Page 89: Static Mac Forward Setup

    Dimension ES-3124 Ethernet Switch Chapter 8 Static MAC Forward Setup Use these screens to configure static MAC address forwarding. 8.1 Introduction to Static MAC Forward Setup A static MAC address entry is an address that has been manually entered in the MAC address learning table. Static MAC addresses do not age out.

  • Page 90: Viewing And Editing Static Mac Forwarding Rules

    Dimension ES-3124 Ethernet Switch Table 8-1 Static MAC Forwarding LABEL DESCRIPTION MAC Address Enter the MAC address in valid MAC address format, that is, six hexadecimal character pairs. Static MAC addresses do not age out. Enter the VLAN identification number.

  • Page 91: Chapter 9 Filtering

    Dimension ES-3124 Ethernet Switch Chapter 9 Filtering This chapter discusses static IP and MAC address port filtering. 9.1 Introduction to Filtering Filtering means sifting traffic going through the switch based on the source and/or destination MAC addresses and VLAN group (ID).

  • Page 92: Viewing And Editing Filter Rules

    Dimension ES-3124 Ethernet Switch Table 9-1 Filtering LABEL DESCRIPTION Action Select Discard source to drop frame from the source MAC address (specified in the MAC field). The switch can still send frames to the MAC address. Select Discard destination to drop frames to the destination MAC address (specified in the MAC address).
  • Page 93 Dimension ES-3124 Ethernet Switch Table 9-2 Filtering: Summary Table LABEL DESCRIPTION Delete Check the rule(s) that you want to remove in the Delete column and then click the Delete button. Cancel Click Cancel to clear the selected checkboxes in the Delete column.

  • Page 95: Chapter 10 Spanning Tree Protocol

    Dimension ES-3124 Ethernet Switch Chapter 10 Spanning Tree Protocol This chapter introduces the Spanning Tree Protocol (STP). 10.1 Introduction to Spanning Tree Protocol (STP) STP detects and breaks network loops and provides backup links between switches, bridges or routers. It allows a switch to interact with other STP-compliant switches in your network to ensure that only one route exists between any two stations on the network.

  • Page 96: Stp Port States

    Dimension ES-3124 Ethernet Switch Once a stable network topology has been established, all bridges listen for Hello BPDUs (Bridge Protocol Data Units) transmitted from the root bridge. If a bridge does not get a Hello BPDU after a predefined interval (Max Age), the bridge assumes that the link to the root bridge is down.

  • Page 97: Figure 10-1 Spanning Tree Protocol: Status

    Dimension ES-3124 Ethernet Switch Figure 10-1 Spanning Tree Protocol: Status The following table describes the labels in this screen. Table 10-3 Spanning Tree Protocol: Status LABEL DESCRIPTION Spanning Tree Protocol This field displays Running if STP is activated. Otherwise, it displays Down.

  • Page 98: Configuring Stp

    Dimension ES-3124 Ethernet Switch Table 10-3 Spanning Tree Protocol: Status LABEL DESCRIPTION Forwarding Delay This is the time (in seconds) the root switch will wait before changing states (that is, (second) listening to learning to forwarding). Cost to Bridge This is the path cost from the root port on this switch to the root switch.

  • Page 99: Figure 10-2 Spanning Tree Protocol: Configuring

    Dimension ES-3124 Ethernet Switch Figure 10-2 Spanning Tree Protocol: Configuring Spanning Tree Protocol 10-5...

  • Page 100: Table 10-4 Spanning Tree Protocol: Configuring

    Dimension ES-3124 Ethernet Switch The following table describes the labels in this screen. Table 10-4 Spanning Tree Protocol: Configuring LABEL DESCRIPTION Active Select this check box to activate STP. Bridge Priority Bridge priority is used in determining the root switch, root port and designated port. The switch with the highest priority (lowest numeric value) becomes the STP root switch.

  • Page 101: Chapter 11 Bandwidth Control

    Dimension ES-3124 Ethernet Switch Chapter 11 Bandwidth Control This chapter shows you how you can set the maximum bandwidth allowed for traffic flows on a port using the Bandwidth Control setup screens. 11.1 Introduction to Bandwidth Control Bandwidth control means defining a maximum allowable bandwidth for incoming and/or out-going traffic flows on a port.

  • Page 102: Table 11-1 Bandwidth Control

    Dimension ES-3124 Ethernet Switch The following table describes the labels in this screen. Table 11-1 Bandwidth Control LABEL DESCRIPTION Active Select this check box to enable bandwidth control. Port This field displays the port number. Active Make sure to select this check box to activate your rule. You may temporarily deactivate a rule without deleting it by clearing this check box.
  • Page 103 Advanced Applications Part V Advanced Application 2 This part shows you how to configure the Broadcast Storm Control, Mirroring, Link Aggregation, Port Authentication, Port Security, Access Control, Queuing Method, Classifier, Policy Rule and VLAN Stacking Advanced Application screens.

  • Page 105: Broadcast Storm Control

    Dimension ES-3124 Ethernet Switch Chapter 12 Broadcast Storm Control 12.1 Introducing Broadcast Storm Control Broadcast storm control limits the number of broadcast, multicast and destination lookup failure (DLF) packets the switch receives per second on the ports. When the maximum number of allowable broadcast, multicast and/or DLF packets is reached per second, the subsequent packets are discarded.

  • Page 106: Figure 12-1 Broadcast Storm Control

    Dimension ES-3124 Ethernet Switch Figure 12-1 Broadcast Storm Control The following table describes the labels in this screen. Table 12-1 Broadcast Storm Control LABEL DESCRIPTION Active Select this check box to enable broadcast storm control on the switch. 12-2 Broadcast Storm Control...
  • Page 107 Dimension ES-3124 Ethernet Switch Table 12-1 Broadcast Storm Control LABEL DESCRIPTION Port This field displays a port number. Broadcast Select this option and specify how many broadcast packets the port receives per second. (pkt/s) Multicast Select this option and specify how many multicast packets the port receives per second.

  • Page 109: Chapter 13 Mirroring

    Dimension ES-3124 Ethernet Switch Chapter 13 Mirroring This chapter discusses the Mirror setup screens. 13.1 Introduction to Port Mirroring Port mirroring allows you to copy traffic going from one or all ports to another or all ports in order that you can examine the traffic from the mirror port (the port you copy the traffic to) without interference.

  • Page 110: Figure 13-1 Mirroring

    Dimension ES-3124 Ethernet Switch Figure 13-1 Mirroring The following table describes the related labels in this screen. 13-2 Mirroring...

  • Page 111: Table 13-1 Mirroring

    Dimension ES-3124 Ethernet Switch Table 13-1 Mirroring LABEL DESCRIPTION Active Clear this check box to deactivate port mirroring on the switch. Monitor Port The monitor port is the port you copy the traffic to in order to examine it in more detail without interfering with the traffic flow on the original port(s).

  • Page 113: Chapter 14 Link Aggregation

    14.1.1 Dynamic Link Aggregation The ES-3124 adheres to the 802.3ad standard for static and dynamic (LACP) port trunking. The ES-3124 supports the link aggregation IEEE802.3ad standard. This standard describes the Link Aggregate Control Protocol (LACP), which is a protocol that dynamically creates and manages trunk groups.

  • Page 114: Link Aggregation Protocol Status

    Dimension ES-3124 Ethernet Switch [(0000,00-00-00-00-00-00,0000,00,0000)] [(0000,00-00-00-00-00-00,0000,00,0000)] Local switch 0000 00-00-00-00-00 0000 0000 System priority Local switch MAC address Port Priority Port Number Peer switch 0000 00-00-00-00-00 0000 0000 System priority MAC address Port Priority Port Number Figure 14-1 Aggregation ID 14.2 Link Aggregation Protocol Status...

  • Page 115: Link Aggregation Setup

    Dimension ES-3124 Ethernet Switch The following table describes the labels in this screen. Table 14-1 Link Aggregation: Link Aggregation Protocol Status LABEL DESCRIPTION Index This field displays the trunk ID to identify a trunk group, that is, one logical link containing multiple ports.

  • Page 116: Figure 14-3 Link Aggregation: Configuration

    Dimension ES-3124 Ethernet Switch Figure 14-3 Link Aggregation: Configuration 14-4 Link Aggregation...

  • Page 117: Table 14-2 Link Aggregation: Configuration

    Dimension ES-3124 Ethernet Switch The following table describes the labels in this screen. Table 14-2 Link Aggregation: Configuration LABEL DESCRIPTION Link Aggregation Control Protocol Active Select this checkbox to enable Link Aggregation Control Protocol (LACP). System Priority LACP system priority is a number between 1 and 65,355. The switch with the lowest system priority (and lowest port number if system priority is the same) becomes the LACP “server”.

  • Page 119: Chapter 15 Port Authentication

    Figure 15-1 RADIUS Server 15.2 Configuring Port Authentication To enable port authentication, first activate IEEE802.1x security (both on the ES-3124 and the port(s)) then configure the RADIUS server settings. Click Port Authentication under Advanced Application in the navigation panel to display the screen as shown.

  • Page 120: Configuring Radius Server Settings

    Dimension ES-3124 Ethernet Switch Figure 15-2 Port Authentication 15.2.1 Configuring RADIUS Server Settings From the Port Authentication screen, click RADIUS to display the configuration screen as shown. Figure 15-3 Port Authentication: RADIUS The following table describes the labels in this screen.

  • Page 121: Figure 15-4 Port Authentication: 802.1X

    Dimension ES-3124 Ethernet Switch Figure 15-4 Port Authentication: 802.1x The following table describes the labels in this screen. Port Authentication 15-3...

  • Page 122: Table 15-2 Port Authentication: 802.1X

    Dimension ES-3124 Ethernet Switch Table 15-2 Port Authentication: 802.1x LABEL DESCRIPTION Active Select this check box to permit 802.1x authentication on the switch. You must first allow 802.1x authentication on the switch before configuring it on each port. Port This field displays a port number.

  • Page 123: Chapter 16 Port Security

    Dimension ES-3124 Ethernet Switch Chapter 16 Port Security This chapter shows you how to set up port security. 16.1 About Port Security Port security allows only packets with dynamically learned MAC addresses and/or configured static MAC addresses to pass through a port on the switch. The switch can learn up to 16K MAC addresses in total with no limit on individual ports other than the sum cannot exceed 16K.

  • Page 124: Figure 16-1 Port Security

    Dimension ES-3124 Ethernet Switch Figure 16-1 Port Security The following table describes the labels in this screen. 16-2 Port Security...

  • Page 125: Table 16-1 Port Security

    Dimension ES-3124 Ethernet Switch Table 16-1 Port Security LABEL DESCRIPTION Active Select this check box to enable the port security feature on the switch. Port This field displays a port number. Active Select this check box to enable the port security feature on this port. The switch forwards packet(s) whose MAC address(es) is in the MAC address table on this port.

  • Page 127: Chapter 17 Access Control

    Dimension ES-3124 Ethernet Switch Chapter 17 Access Control This chapter describes how to control access to the switch. 17.1 About Access Control Click Access Control from the navigation panel to display the screen as shown. From this screen you can configure SNMP, up to four web configurator administrators, enable/disable remote service access and configure trusted computers for remote access.

  • Page 128: About Snmp

    An SNMP managed network consists of two main components: agents and a manager. An agent is a management software module that resides in a managed switch (the ES-3124). An agent translates the local management information from the managed switch into a form compatible with SNMP. The manager is the console through which network administrators perform network management functions.

  • Page 129: Supported Mibs

    SNMPv2 MIB for IP, RFC 2012 SNMPv2 MIB for TCP, RFC 2013 SNMPv2 MIB for UDP 17.3.2 SNMP Traps The ES-3124 sends traps to an SNMP manager when an event occurs. SNMP traps supported are outlined in the following table. Table 17-3 SNMP Traps GENERIC TRAP...

  • Page 130: Setting Up Login Accounts

    Dimension ES-3124 Ethernet Switch Figure 17-4 Access Control: SNMP The following table describes the labels in this screen. Table 17-4 Access Control: SNMP LABEL DESCRIPTION Get Community Enter the get community, which is the password for the incoming Get- and GetNext- requests from the management station.

  • Page 131: Figure 17-5 Access Control: Logins

    Dimension ES-3124 Ethernet Switch Click Access Control from the navigation panel and then click Logins from this screen. Figure 17-5 Access Control: Logins The following table describes the labels in this screen. Table 17-5 Access Control: Logins LABEL DESCRIPTION Administrator This is the default administrator account with the “admin”...

  • Page 132: Service Access Control

    Click Cancel to begin configuring this screen afresh. 17.4 Service Access Control Service Access Control allows you to decide what services you may use to access the ES-3124. You may also change the default service port and configure “trusted computer(s)” for each service in the Remote Management screen (discussed later).

  • Page 133: Figure 17-7 Access Control: Remote Management

    Dimension ES-3124 Ethernet Switch You can specify a group of one or more “trusted computers” from which an administrator may use a service to manage the switch. Click Access Control to return to the Access Control screen. Figure 17-7 Access Control: Remote Management The following table describes the labels in this screen.

  • Page 135: Chapter 18 Queuing Method

    Dimension ES-3124 Ethernet Switch Chapter 18 Queuing Method This chapter introduces SP (Strictly Priority) and WFS (Weighted Fair Scheduling). 18.1 Introduction to Queuing Queuing is used to help solve performance degradation when there is network congestion. Use the Queuing Method screen to configure queuing algorithms for outgoing traffic. See also Priority Queue Assignment in Switch Setup and 802.1p Priority in Port Setup for related information.

  • Page 136: Figure 18-1 Queuing Method

    Dimension ES-3124 Ethernet Switch Figure 18-1 Queuing Method The following table describes the labels in this screen. 18-2 Queuing Method...

  • Page 137: Table 18-1 Queuing Method

    Dimension ES-3124 Ethernet Switch Table 18-1 Queuing Method LABEL DESCRIPTION Method Select Strictly Priority or Weighted Fair Scheduling. Strictly Priority services queues based on priority only. When the highest priority queue empties, traffic on the next highest-priority queue begins. Q7 has the highest priority and Q0 the lowest.

  • Page 139: Chapter 19 Classifier

    Chapter 19 Classifier This chapter introduces and shows you how to configure the packet classifier on the ES-3124. 19.1 About the Classifier and QoS Quality of Service (QoS) refers to both a network’s ability to deliver data with minimum delay, and the networking methods used to control the use of bandwidth.

  • Page 140: Figure 19-1 Classifier

    Dimension ES-3124 Ethernet Switch Figure 19-1 Classifier The following table describes the labels in this screen. Table 19-1 Classifier LABEL DESCRIPTION Active Select this option to enable this rule. Name Enter a descriptive name for this rule for identifying purposes.
  • Page 141 Dimension ES-3124 Ethernet Switch Table 19-1 Classifier LABEL DESCRIPTION Packet Format Specify the format of the packet. Choices are All, 802.3 tagged, 802.3 untagged, Ethernet II tagged and Ethernet II untagged. A value of 802.3 indicates that the packets are formatted according to the IEEE 802.3 standards.

  • Page 142: Viewing And Editing Classifier Configuration

    Dimension ES-3124 Ethernet Switch Table 19-1 Classifier LABEL DESCRIPTION Socket Number You must select either UDP or TCP in the IP Protocol field before you configure the socket numbers. Select Any to apply the rule to all TCP/UDP protocol port numbers or select the second option and enter a TCP/UDP protocol port number.

  • Page 143: Classifier Example

    Dimension ES-3124 Ethernet Switch Table 19-3 Common Ethernet Types and Protocol Number ETHERNET TYPE PROTOCOL NUMBER NBS Internet 0802 ECMA Internet 0803 Chaosnet 0804 X.25 Level 3 0805 XNS Compat 0807 Banyan Systems 0BAD BBN Simnet 5208 IBM SNA 80D5...

  • Page 144: Figure 19-3 Classifier: Example

    Dimension ES-3124 Ethernet Switch Figure 19-3 Classifier: Example 19-6 Classifier...

  • Page 145: Chapter 20 Policy Rule

    Dimension ES-3124 Ethernet Switch Chapter 20 Policy Rule This chapter shows you how to configure policy rules. 20.1 About Policy Rules A classifier distinguishes traffic into flows based on the configured criteria (refer to Chapter 19 for more information). A policy rule ensures that a traffic flow gets the requested treatment in the network.

  • Page 146: Figure 20-1 Policy

    Dimension ES-3124 Ethernet Switch Figure 20-1 Policy The following table describes the labels in this screen. 20-2 Policy Rule...
  • Page 147 Dimension ES-3124 Ethernet Switch Table 20-1 Policy LABEL DESCRIPTION Active Select this option to enable the policy. Name Enter a descriptive name for identification purposes. Classifier(s) This field displays the active classifier(s) you configure in the Classifier screen (refer to Chapter 19 ).

  • Page 148: Viewing And Editing Policy Configuration

    Dimension ES-3124 Ethernet Switch Table 20-1 Policy LABEL DESCRIPTION Diffserv Select No change to keep the TOS and/or DSCP fields in the packets. Select Set the packet’s TOS field to set the TOS field with the value you configure in the TOS field.

  • Page 149: Policy Example

    Dimension ES-3124 Ethernet Switch Table 20-2 Policy: Summary Table LABEL DESCRIPTION Index This field displays the policy index number. Click an index number to edit the policy. Active This field displays Yes when policy is activated and No when is it deactivated.

  • Page 150: Figure 20-3 Policy Example

    Dimension ES-3124 Ethernet Switch Figure 20-3 Policy Example 20-6 Policy Rule...

  • Page 151: Chapter 21 Vlan Stacking

    Dimension ES-3124 Ethernet Switch Chapter 21 VLAN Stacking This chapter shows you how to configure VLAN stacking on your ES-3124. See the chapter on VLANs for more background information on Virtual LAN 21.1 Introduction A service provider can use VLAN stacking to allow it to distinguish multiple customers VLANs, even those with the same (customer-assigned) VLAN ID, within its network.

  • Page 152: Vlan Stacking Roles

    Dimension ES-3124 Ethernet Switch Figure 21-1 VLAN Stacking Example 21.2 VLAN Stacking Roles Each port can have three VLAN stacking “roles”, Normal, Access Port and Tunnel Port (the latter is for Gigabit ports only). Select Normal for “regular” (non-VLAN stacking) IEEE 802.1Q frame switching.

  • Page 153: Frame Format

    TPID (Tag Protocol Identifier) is the customer IEEE 802.1Q tag. If the VLAN stacking port role is Access Port, then the ES-3124 adds the SP TPID tag to all incoming frames on the service provider's edge devices (1 and 2 in the VLAN stacking example figure).

  • Page 154: Figure 21-2 Vlan Stacking

    Dimension ES-3124 Ethernet Switch Figure 21-2 VLAN Stacking The following table describes the labels in this screen. Table 21-1 VLAN Stacking LABEL DESCRIPTION Active Select this checkbox to enable VLAN stacking on the switch. 21-4 VLAN Stacking...

  • Page 155: Table 21-1 Vlan Stacking

    Anything you configure in SPVID and Priority are ignored. Select Access Port to have the ES-3124 add the SP TPID tag to all incoming frames received on this port. Select Access Port for ingress ports at the edge of the service provider's network.
  • Page 157 Routing Protocol and Management Part VI Routing Protocol and Management This part describes the Routing Protocol and Management screens.

  • Page 159: Chapter 22 Routing Protocol

    This chapter shows you how to configure the routing functions. 22.1 Static Route Static routes tell the ES-3124 how to forward IP traffic when you configure the TCP/IP parameters manually. Click Routing Protocol in the navigation panel and then Static Routing to display the screen as shown.

  • Page 160: Figure 22-2 Static Routing: Summary Table

    Dimension ES-3124 Ethernet Switch Table 22-1 Static Routing LABEL DESCRIPTION IP Subnet Mask Enter the subnet mask for this destination. Gateway IP Enter the IP address of the gateway. The gateway is an immediate neighbor of your switch that Address will forward the packet to the destination.
  • Page 161 Dimension ES-3124 Ethernet Switch Table 22-2 Static Routing: Summary Table LABEL DESCRIPTION Delete Check the rule(s) that you want to remove in the Delete column, and then click the Delete button. Cancel Click Cancel to clear the selected checkboxes in the Delete column.

  • Page 163: Chapter 23 Maintenance

    Dimension ES-3124 Ethernet Switch Chapter 23 Maintenance This chapter explains how to configure the maintenance screens. The links on the upper right of the Maintenance screen lead to different screens that let you maintain the firmware and configuration files. 23.1 Maintenance Click Management and then Maintenance in the navigation panel to open the following screen.

  • Page 164: Restore A Configuration File

    Dimension ES-3124 Ethernet Switch Type the path and file name of the firmware file you wish to upload to the switch in the File Path text box or click Browse to locate it. After you have specified the file, click Upgrade.

  • Page 165: Load Factory Defaults

    Dimension ES-3124 Ethernet Switch Choose a location to save the file on your computer from the Save in drop-down list box and type a Step 3. descriptive name for it in the File name list box. Click Save to save the configuration file to your computer.

  • Page 166: Command Line Ftp

    Dimension ES-3124 Ethernet Switch Click OK to see the screen as shown in Figure 23-6. Click OK again and then wait for the switch to restart. This takes up to two minutes. This does not affect the switch’s configuration. 23.7 Command Line FTP This section shows some examples of uploading to or downloading files from the switch using FTP commands.

  • Page 167: Gui-Based Ftp Clients

    Dimension ES-3124 Ethernet Switch Press [ENTER] when prompted for a username. Step 3. Enter your password as requested (the default is “1234”). Step 4. Enter “bin” to set transfer mode to binary. Step 5. Use “put” to transfer files from the computer to the switch, for example, “put firmware.bin ras” transfers Step 6.

  • Page 169: Chapter 24 Diagnostic

    Dimension ES-3124 Ethernet Switch Chapter 24 Diagnostic This chapter explains the Diagnostic screens. 24.1 Diagnostic Click Management and then Diagnostic in the navigation panel to display this screen. Use this screen to check system logs, ping IP addresses or perform loopback tests on a port.
  • Page 170 Dimension ES-3124 Ethernet Switch Table 24-1 Diagnostic LABEL DESCRIPTION IP Ping Type the IP address of a device that you want to ping in order to test a connection. Click Ping to have the switch ping the IP address (in the field to the left).

  • Page 171: Chapter 25 Cluster Management

    Dimension ES-3124 Ethernet Switch Chapter 25 Cluster Management This chapter introduces cluster management. 25.1 Introduction to Cluster Management Cluster Management allows you to manage switches through one switch, called the cluster manager. The switches must be directly connected and be in the same VLAN group so as to be able to communicate with one another.

  • Page 172: Cluster Management Status

    Dimension ES-3124 Ethernet Switch 25.2 Cluster Management Status Click Management in the navigation panel and then Cluster Management to display the following screen. Figure 25-2 Cluster Management Status The following table describes the labels in this screen. Table 25-2 Cluster Management Status...

  • Page 173: Cluster Member Switch Management

    Dimension ES-3124 Ethernet Switch Table 25-2 Cluster Management Status LABEL DESCRIPTION Status This field displays: Online (the cluster member switch is accessible) Error (for example the cluster member switch password was changed or the switch was set as the manager and so left the member list, etc.) Offline (the switch is disconnected - Offline shows approximately 1.5 minutes...

  • Page 174: Configuring Cluster Management

    Dimension ES-3124 Ethernet Switch C:\> ftp <Cluster Manager IP address> Connected to 192.168.1.1. 220 ES-3124 FTP version 1.0 ready at Thu Jan 1 00:06:58 1970 User (192.168.1.1:(none)): admin 331 Enter PASS command Password: 230 Logged in ftp> ls 200 Port command okay...

  • Page 175: Figure 25-5 Configuring Cluster Management

    Dimension ES-3124 Ethernet Switch Figure 25-5 Configuring Cluster Management The following table describes the labels in this screen. Table 25-4 Configuring Cluster Management LABEL DESCRIPTION Active Select Active to have this switch become the cluster manager switch. A cluster can only have one manager.
  • Page 176 Dimension ES-3124 Ethernet Switch Table 25-4 Configuring Cluster Management LABEL DESCRIPTION VID This is the Management VLAN ID and is only applicable if the switch is set to 802.1Q VLAN. All switches must be in the same management VLAN group to belong to the same cluster.

  • Page 177: Chapter 26 Mac Table

    Dimension ES-3124 Ethernet Switch Chapter 26 MAC Table This chapter introduces MAC Table. 26.1 Introduction to MAC Table The MAC table shows how frames are forwarded or filtered across the switch’s ports. It shows what device MAC address, belonging to what VLAN group (if any) is forwarded to which port(s) and whether the MAC address is dynamic (learned by the switch) or static (manually entered in Static MAC Forwarding).

  • Page 178: Viewing Mac Table

    Dimension ES-3124 Ethernet Switch 26.2 Viewing MAC Table Click Management in the navigation panel and then MAC Table to display the following screen. The MAC Table can hold up to 16K entries. Figure 26-2 MAC Table The following table describes the labels in this screen.

  • Page 179: Chapter 27 Arp Table

    Dimension ES-3124 Ethernet Switch Chapter 27 ARP Table This chapter introduces ARP Table. 27.1 Introduction to ARP Table Address Resolution Protocol (ARP) is a protocol for mapping an Internet Protocol address (IP address) to a physical machine address, also known as a Media Access Control or MAC address, on the local area network.

  • Page 180: Figure 27-1 Arp Table

    Dimension ES-3124 Ethernet Switch Figure 27-1 ARP Table The following table describes the labels in this screen. Table 27-1 ARP Table LABEL DESCRIPTION Index This is the ARP Table entry number. IP Address This is the learned IP address of a device connected to a switch port with corresponding MAC address below.
  • Page 181 CLI Commands Part VII Commands This part gives information on Command Line Interface (CLI) commands for the ES-3124.

  • Page 183: Chapter 28 Introduction To Cli

    However you cannot use “config save” for all other line command configurations. These are saved in volatile memory (DRAM), so are not effective after you restart the switch. 28.1.1 Accessing the Command Line Interface There are two ways to access the command line interface on the ES-3124: • Telnet to the switch •...

  • Page 184: Command Syntax Conventions

    Figure 28-1 CLI Help: Sample Output 28.2 Command Summary The following tables are summaries of the commands available in the ES-3124 together with a brief description of each command. See the related section in the User’s Guide for more background information.

  • Page 185: Syslog Server

    Dimension ES-3124 Ethernet Switch Table 28-1 Command Summary: sys COMMAND DESCRIPTION adjtime Retrieves the date and time from the time server specified in the web configurator. countrycode <country code> Sets or displays the firmware country code. display Displays the CPU’s utilization.
  • Page 186 Dimension ES-3124 Ethernet Switch Table 28-1 Command Summary: sys COMMAND DESCRIPTION type <bitmap> Uses hexadecimal characters to set the type of trace logs to record. disp Shows the trace log. clear Erases the trace log. Shows call events. call encapmask...

  • Page 187: Monitor Status

    Dimension ES-3124 Ethernet Switch Table 28-1 Command Summary: sys COMMAND DESCRIPTION cnt [value] Sets (0-34463) or displays the current watchdog count (in 1.6 sec units). monitor status Displays the status of the hardware monitor. show Displays the hardware monitor’s statistics.

  • Page 188: Sys Sw Commands

    Dimension ES-3124 Ethernet Switch Table 28-1 Command Summary: sys COMMAND DESCRIPTION trustedHost <index>[<hostt>] Sets or displays the SNMP trusted host. trapCommunity <index> Sets or displays the SNMP Trap community. [<community>] trapDest <index>[<destination>] Sets or displays the SNMP trap server. disp <index|all>...
  • Page 189 Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION defpri <port> [<0..7>] Sets the default ingress User Priority for a port. <0..7> [<queue>] Maps a user priority to a traffic class. method <strict | wfq> Sets QoS method.
  • Page 190 Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION clear Clears the switch NDIS level counters (CPU interface). All “sys sw rstp” commands rstp relate to rapid STP configuration. Refer to IEEE Std 802.1w. Use “config save” to save your configuration changes.
  • Page 191 Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION enable <port_no> Enables LACP on the specified port. disable <port_no> Disables LACP on the specified port. status <port_no> Displays whether LACP is enabled on the specified port. actorAdm activity [port_no]...
  • Page 192 Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION status <port_no> Displays 802.1X security status on the specified port. auth <profile | radius> Sets whether an external RADIUS server or the internal switch user database performs authentication.
  • Page 193 Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION bmstorm These commands relate to broadcast storm control. disable Turns off broadcast storm control. enable Turns on broadcast storm control. port <port> <type> <active(on|off)> Sets broadcast storm control on <threshold(pps)>...
  • Page 194 Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION enable Turns on port mirroring remove <port=all|portNo> Removes mirrored port from the mirroring group. <port=all|portNo> Sets the mirrored port and <direction=ingress|egress|both> direction. disable Turns off port mirroring. display Displays current run-time port mirror settings.
  • Page 195 Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION display Displays address learning status. isolate disable Disables port isolation.(All connected) port <port> <Port-List (in Hex)> Sets the port-list which can connected to the specific port. enable Enables port isolation.

  • Page 196: Exit Command

    Dimension ES-3124 Ethernet Switch Table 28-2 Command Summary: sys sw COMMAND DESCRIPTION vlanstack [enable|disable] Enables or disables VLAN stacking on the switch. display Displays whether VLAN stacking is active. tpid [value(Hex)] Sets a tag protocol identifier (TPID). mode <port|portNo> Sets VLAN stacking.
  • Page 197 Dimension ES-3124 Ethernet Switch Table 28-4 Command Summary: ip COMMAND DESCRIPTION <if_name> <static | dhcp> Sets the IP settings on an interface. [<ip_addr>[/<bits>] [<gateway>]] query Queries the DNS server to resolve domain names. dns server [dns IP address] Set the IP address of a DNS server.
  • Page 198 Dimension ES-3124 Ethernet Switch Table 28-4 Command Summary: ip COMMAND DESCRIPTION limit [value] Sets a TCP output window limit. [value] Inputs the TCP Maximum Segment Size. reset <tcb> Resets the TCP connection of the specified TCP Control Block. rtt <tcb> <value>...

  • Page 199: Ether Command

    Dimension ES-3124 Ethernet Switch Table 28-4 Command Summary: ip COMMAND DESCRIPTION dhcp <iface> status Shows whether an interface can accept information from a DHCP server. dhcp <iface> client release Releases DHCP information such as the IP address from an interface dhcp <iface>...

  • Page 201: Chapter 29 Command Examples

    Dimension ES-3124 Ethernet Switch Chapter 29 Command Examples This chapter describes some commands in more detail. 29.1 Commonly Used Commands Overview These are commands that you may use frequently in configuring and maintaining your switch. See the following chapter for IEEE 802.1Q Tagged VLAN commands.

  • Page 202: Sys Monitor Status

    ) or a range start_VID of VLAN Ids ending at a specific VID ( end_VID This command displays the IEEE 802.1Q tagged VLAN table. An example is shown next. ES-3124> sys sw vlan1q vlan list all ElapsedTime Status EgressPort/UntaggedPort ------ ---- -----------...

  • Page 203: Sys Cluster Commands

    Dimension ES-3124 Ethernet Switch 29.3 sys cluster Commands These are the commonly used commands that belong to the “sys cluster” group of commands. Use “config save” to save these configurations. 29.3.1 sys cluster status Syntax: sys cluster status This command shows whether this switch is a cluster member, cluster manager or neither and information about members in the cluster.

  • Page 204: Ip Commands

    Dimension ES-3124 Ethernet Switch test_mem> sys cluster showMember ipAddr = 127.0.0.1 mask = 255.255.0.0 hwAddr = 00:a0:c5:05:02:34 hostName = test_mem modelName= time = 100 status = 4(0:Invalid, 1:waiting, 2:Active, 3:Inactive, 4:static) ipAddr = 127.0.0.2 mask = 255.255.0.0 hwAddr = 00:a0:c5:05:22:11...

  • Page 205: Ip Ping

    Dimension ES-3124 Ethernet Switch 29.4.1 ip ping Syntax: ip ping <hostid> This command pings a remote host. An example is shown next. ES-3124> ip ping 192.168.1.10 Resolving 192.168.1.10... 192.168.1.10 sent rcvd rate mdev Figure 29-8 IP PING Command Example 29.4.2...

  • Page 206: Ip Dhcp Commands

    Dimension ES-3124 Ethernet Switch 29.4.4 ip dhcp Commands Syntax: (This command disables DHCP on the switch interface (swif0)) ip dhcp swif0 mode none (This command displays the DHCP status on the switch interface ip dhcp swif0 status (swif0)) An example is shown next.

  • Page 207: Chapter 30 Ieee 802.1Q Tagged Vlan Commands

    Dimension ES-3124 Ethernet Switch Chapter 30 IEEE 802.1Q Tagged VLAN Commands This chapter describes the IEEE 802.1Q Tagged VLAN and associated commands. Use the “config save” command to save configuration changes. 30.1 IEEE 802.1Q Tagged VLAN Overview See the VLAN chapter for more information on VLANs. There are two kinds of tagging: 1.

  • Page 208: Figure 30-1 Tagged Vlan Configuration And Activation Example

    VLAN IDs. sys sw vlan1q svlan active Example: ES-3124> sys sw vlan1q svlan setentry up1 2000 24 fixed tag for newly create VLAN, please use svlan active <VID> to activate this entry ES-3124> sys sw vlan1q port defaultVID 24 2000 ES-3124>...

  • Page 209: Ieee Vlan1Q Tagged Vlan Configuration Commands

    Dimension ES-3124 Ethernet Switch ES-3124> sys sw vlan1q svlan cpu 3 ES-3124> sys sw vlan1q svlan delentry 1 Figure 30-3 Deleting Default VLAN Example 30.4 IEEE VLAN1Q Tagged VLAN Configuration Commands These (switch) commands allow you to configure and monitor the IEEE 802.1Q Tagged VLAN.

  • Page 210: Gvrp Status

    The following example sets the Join Timer to 300 milliseconds, the Leave Timer to 800 milliseconds and the Leave All Timer to 11000 milliseconds. ES-3124> sys sw garp timer 300 800 11000 Figure 30-5 garp timer Command Example 30.4.3...

  • Page 211: Vlan1Q Port Default Vid

    This command sets a default VLAN ID for all untagged packets that come in through the specified port. The following example sets the default VID of port 1 to 2000. ES-3124> sys sw vlan1q port defaultVID 1 2000 Figure 30-8 vlan1q port default vid Command Example 30.4.8...

  • Page 212: Vlan1Q Port Gvrp

    Turn GVRP on or off. This command turns GVRP on or off for the specified port. The following example turns off GVRP for port 2. ES-3124> sys sw vlan1q port gvrp 2 disable Figure 30-10 vlan1q port gvrp Command Example 30.4.10...

  • Page 213: Figure 30-12 Modifying The Static Vlan Example

    An example of a configuration is shown next. sw vlan1q Modify a Static VLAN Table Example The following is an example of how to modify a static VLAN table. ES-3124> sys sw vlan1q svlan setentry 2000 fixed ES-3124> sys sw vlan1q svlan setentry...

  • Page 214: Vlan1Q Svlan Delentry

    This command deletes the specified VLAN ID entry from the static VLAN table The following example deletes entry 2 in the static VLAN table. ES-3124> sys sw vlan1q svlan delentry 2 Figure 30-13 vlan1q svlan delentry Command Example 30.5 vlan1q svlan active Syntax: sys sw vlan1q svlan active <VID>...

  • Page 215: Vlan1Q Vlan List

    Dimension ES-3124 Ethernet Switch ES-3124> sys sw vlan1q svlan list 802.1Q VLAN Static Entry: idx. Name Active AdCtl / TagCtl ---- ------------ ---- -------- ------------------------ active FFFFFFFFFFFFFFFFFFFFFFFFFFFF UUUUUUUUUUUUUUUUUUUUUUUUUUUU up1 2000 active -----------------------F---- TTTTTTTTTTTTTTTTTTTTTTTTTTTT up1 2001 active ------------------------F--- TTTTTTTTTTTTTTTTTTTTTTTTUTTT example active...

  • Page 216: Figure 30-16 Vlan1Q Vlan Status Command Example

    Dimension ES-3124 Ethernet Switch See the following example shows the default VLAN settings. The default VLAN allows all ports to connect to each other and sets them to send untagged packets. ES-3124> sys sw vlan1q status 802.1Q VLAN Setup : GVRP = Disable Managament VLAN ID = 1 ES-3124>...

  • Page 217: Appendices And Index

    Appendices and Index Part VIII Appendices and Index This part contains appendices of advanced background feature information and an Index. VIII...

  • Page 219: Chart 1 General Product Specifications

    Dimension ES-3124 Ethernet Switch A Product Specifications These are the ES-3124 product specifications. Chart 1 General Product Specifications IEEE802.3 10BASE-T Ethernet (twisted-pair copper) IEEE802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) ANSI/IEEE802.3 Auto-negotiation IEEE802.3x Flow Control IEEE802.1p Priority Queues Standards IEEE802.1q VLAN IEEE802.1d Spanning Tree...

  • Page 220: Chart 2 Performance And Management Specifications

    Dimension ES-3124 Ethernet Switch Chart 2 Performance and Management Specifications Back plane 12.8 Gbps 14880 PPS for 10BASE-T Packet Forwarding Rate 148800 PPS for 100BASE-TX Switching Method Store-and-forward MAC Address Table 16 K entries Data Buffer 32MB VLAN IEEE 802.1Q tag-based VLAN, 4094 Max IEEE 802.1p Priority Queues...

  • Page 221: Chart 3 Physical And Environmental Specifications

    Dimension ES-3124 Ethernet Switch Chart 3 Physical and Environmental Specifications Weight Main switch: 3.6Kg Main switch: BPS, PWR, SYS, ALM, LINK/ACT, FDX Per Gigabit Port: LNK/ACT, FDX Per mini GBIC Slot: LNK, ACT Per Management Port: 10, 100 Main switch: Dimensions 438(W) x 270(D) x 44.45(H) mm...
  • Page 223 Dimension ES-3124 Ethernet Switch B Index Certification ............. iv CFI ......See Canonical Format Indicator class A..............iv Classifier 10/100M Auto-crossover Ethernet ......3-2 ............Ethernet Type 19-3 ............Packet Format 19-3 CLI Command ............VII Configure tagged VLAN example ....30-2 802.1Q VLAN Type..........
  • Page 224 Dimension ES-3124 Ethernet Switch Ethernet ..............3-2 Frimware version ...........6-2 Diagnostic.............24-1 Front Panel .............3-1 Differentiated Services .........20-1 Front Panel LEDs ...........3-6 DiffServ ..............20-1 FTP...............23-4 DiffServ Code Points..........20-1 Dimensions............A-3 Disclaimer ..............ii Double-tagged Frames .........21-1 GARP ..30-1. See Generic Attribute Registration DSCPs ..............20-1 Protocol Duplex ..............6-12...
  • Page 225 Dimension ES-3124 Ethernet Switch IGMP Snooping ............. 6-6 Management Information Base (MIB)....17-2 Ingress Check ............7-6 Management Port ........... 3-5 Ingress filtering ............7-2 Management VLAN ID ........6-10 Installation Max Age..........10-2, 10-3, 10-6 Desktop .............. 2-1 Media Access Control..........6-2 Rack-Mounted............
  • Page 226 Dimension ES-3124 Ethernet Switch POP (point-of-presence ........xviii Root bridge............10-1 POP3..............19-5 Rubber Feet ............2-1 Port Based VLAN Type .........6-7 Runt ................5-5 Port Details ............. 5-2, 5-3 Rx KB/s............5-2, 5-4 Port Isolation ..........7-6, 7-13 Rx Packet ...............5-4 Port Mirroring ........1-2, 13-1, 28-11 RxPkts .............5-2, 5-4...
  • Page 227 Dimension ES-3124 Ethernet Switch Static MAC Forward Setup ........8-1 Tagged VLAN............7-1 Static MAC Forwarding......... 8-1 GARP ..............7-2 Static Route GVRP ..............7-2 Setup..............22-1 Memebership Registration ......... 7-1 Summary table ..........22-2 Taiwanese BSMI A Warning ........iv Static VLAN............
  • Page 228 Dimension ES-3124 Ethernet Switch Registration Information ........30-1 Tagged VLAN............7-1 WarmStart ............17-3 VLAN Administrative Control.......7-2 Warnings ..............3-1 VLAN Group............7-8 Web Configurator...........4-1 VLAN ID............6-10, 7-1 Logging out ............4-8 maximum number of ..........7-1 Login ..............4-1 VLAN Identifier .............7-1 Online help ............4-9 VLAN Port Settings ..........7-5 Recommended browsers ........4-1...

Table of Contents
