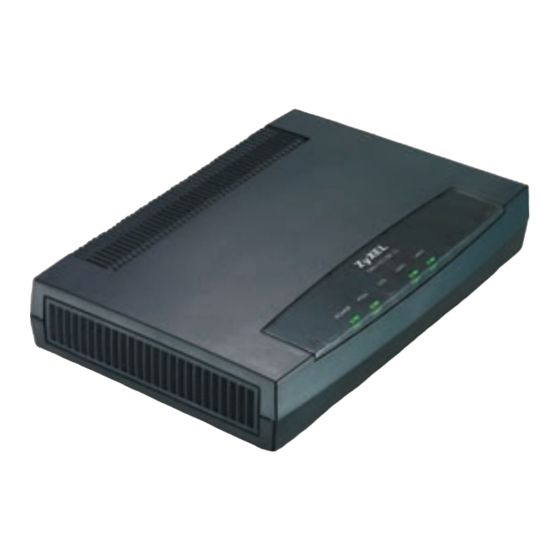

- Page 1 ONU-6100B-2x Series GEPON Optical Network Unit User’s Guide Version 1.00 9/2008 Edition 1 Copyright © 2008. All rights reserved.
-
Page 2: Hardware Connections
OLT (Optical Line Terminal). Once you have connected the hardware, you are ready to enjoy Internet access. Two ONU-6100B-2x models are discussed in this guide: ONU-6100B-21 (with a 10km transceiver) and ONU-6100B-22 (with a 20km transceiver). 1 Hardware Connections... - Page 3 ONU-6100B-2x Series User’s Guide 1 PON: Connect an SC-type, single-mode optical cable to the PON port for Internet access. To avoid possible eye injury, do NOT look into an operating fiber-optic module’s connector. 2 LAN: Use the included Ethernet cable to connect the LAN port to a computer.
- Page 4 ONU-6100B-2x Series User’s Guide • Lay the included power cable in the clip’s internal cable channel. • Pass the cable through the clip’s cable channel a second time, mak- ing a cable loop. • Close the clip. 4 POWER: Use the included power adaptor to connect this power socket to an appropriate power source.
- Page 5 ONU-6100B-2x Series User’s Guide 1.1 Check the LEDs (Lights) • The POWER LED turns steady on when you connect the ONU-6100B-2x to the power supply. • The PON LED turns on when the fiber connection is avail- able. • The LAN LED turns on when the LAN port is properly con- nected.
-
Page 6: Test Your Internet Connection
ONU-6100B-2x Series User’s Guide Label Color Status Description Blinking The ONU-6100B-2x is receiving error signals or no optical signals from the OLT. The ONU-6100B-2x is receiving good optical signals from the OLT successfully and no error signals. Green The LAN port is connected to an Ethernet device at 10/100/1000 Mbps. -
Page 7: Desktop Instructions
ONU-6100B-2x Series User’s Guide 3.1 Desktop Instructions Place the ONU-6100B-2x on a flat, level surface that is strong enough to support the weight of the ONU-6100B-2x with connection cables. Make sure there is a power outlet nearby. 3.2 Wall-mounting Instructions Complete the following steps to hang your ONU-6100B-2x on a wall. - Page 8 ONU-6100B-2x Series User’s Guide 3 Do not insert the screws all the way into the wall. Leave a small gap of about 0.5 cm between the heads of the screws and the wall. 4 Make sure the screws are snugly fastened to the wall. They need to hold the weight of the ONU-6100B-2x with the connection cables.
-
Page 9: Troubleshooting
ONU-6100B-2x Series User’s Guide Troubleshooting 1 The POWER light is not on when I connect power to the ONU-6100B-2x. • Check that the power source is turned on. • You might be using the wrong power adaptor. Use the included power adaptor only. •... -
Page 10: Specifications
PON: One PON port Compliant with IEEE 802.3ah PX-10 (ONU-6100B-21) PX-20 (ONU-6100B-22) SC optical connectors with shutters Transmission distance: 10 km (ONU-6100B-21) 20 km (ONU-6100B-22) Ethernet: One 10/100/1000 Mbps RJ-45 port (LAN) Auto-negotiation Auto-MDIX Power Supply 12 VDC @ 1.5 A Operation Temperature 0º... -
Page 11: Safety Warnings
ONU-6100B-2x Series User’s Guide Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. • For your safety, be sure to read and follow all warning notices and instructions. • Do NOT use this product near water, for example, in a wet basement or near a swimming pool. -
Page 12: Legal Information
ONU-6100B-2x Series User’s Guide to order a new one. • Do NOT remove the plug and plug into a wall outlet by itself; always attach the plug to the power supply first before you insert it into the wall. • Do not use the device outside, and make sure all the connections are indoors. There is a remote risk of electric shock from lightning. -
Page 13: Zyxel Limited Warranty
ONU-6100B-2x Series User’s Guide CE Mark Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Taiwanese BSMI (Bureau of Standards, Metrology and Inspection) A Warning: Notices Changes or modifications not expressly approved by the party responsible for... - Page 14 Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to techwriters@zyxel.com.tw or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you.
-
Page 15: Customer Support
• Sales E-mail: sales@zyxel.com.tw • Telephone: +886-3-578-3942 • Fax: +886-3-578-2439 • Web: www.zyxel.com • Regular Mail: ZyXEL Communications Corp., 6 Innovation Road II, Science Park, Hsinchu 300, Taiwan China - ZyXEL Communications (Beijing) Corp. • Support E-mail: cso.zycn@zyxel.cn • Sales Email: sales@zyxel.cn •... - Page 16 Czech Republic • E-mail: info@cz.zyxel.com • Telephone: +420-241-091-350 • Fax: +420-241-091-359 • Web: www.zyxel.cz • Regular Mail: ZyXEL Communications, Czech s.r.o., Modranska 621, 143 01 Praha 4 - Modrany, Ceska Republika Denmark • Support E-mail: support@zyxel.dk • Sales E-mail: sales@zyxel.dk •...
- Page 17 ONU-6100B-2x Series User’s Guide Germany • Support E-mail: support@zyxel.de • Sales E-mail: sales@zyxel.de • Telephone: +49-2405-6909-69 • Fax: +49-2405-6909-99 • Web: www.zyxel.de • Regular Mail: ZyXEL Deutschland GmbH., Adenauerstr. 20/A2 D-52146, Wuerselen, Germany Hungary • Support E-mail: support@zyxel.hu • Sales E-mail: info@zyxel.hu •...
- Page 18 • Support Telephone: +1-800-978-7222 • Sales E-mail: sales@zyxel.com • Sales Telephone: +1-714-632-0882 • Fax: +1-714-632-0858 • Web: www.zyxel.com • Regular Mail: ZyXEL Communications Inc., 1130 N. Miller St., Anaheim, CA 92806-2001, U.S.A. Norway • Support E-mail: support@zyxel.no • Sales E-mail: sales@zyxel.no •...
- Page 19 • Support E-mail: support@zyxel.es • Sales E-mail: sales@zyxel.es • Telephone: +34-902-195-420 • Fax: +34-913-005-345 • Web: www.zyxel.es • Regular Mail: ZyXEL Communications, Arte, 21 5? planta, 28033 Madrid, Spain Sweden • Support E-mail: support@zyxel.se • Sales E-mail: sales@zyxel.se • Telephone: +46-31-744-7700 •...
- Page 20 • Telephone: +44-1344-303044, 0845 122 0301 (UK only) • Fax: +44-1344-303034 • Web: www.zyxel.co.uk • Regular Mail: ZyXEL Communications UK Ltd., 11 The Courtyard, Eastern Road, Bracknell, Berkshire RG12 2XB, United Kingdom (UK) How to View a Product’s Certification(s) 1 Go to www.zyxel.com.
