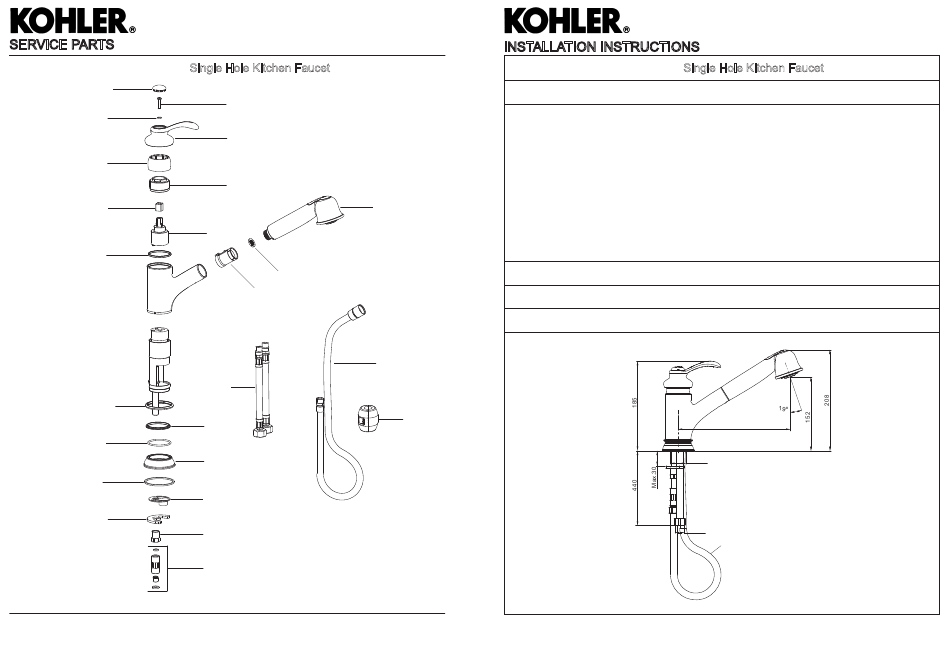

SERVICE PARTS
12177T-B
836583**
832940
78064**
836530
871635
1000191**
871128
77806
836669
**Color code must be specified when ordering
1230979-2A-B
FAIRFAX
Single Hole Kitchen Faucet
834554
78148**
865201
834793
77420
1000194
1024405
871634
865271**
836009
865112
3005433
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. For new installations, assemble the faucet and drain to sink before installing.
3017864**
3. The highest working pressure for handspray & shower head is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handspray,
shower head and the shower arm away from heater, or it may become damaged and cause injury to the user.
HANDLE OPERATION
Lift the handle gently. Turn clockwise for hot water, turn counter-clockwise for cold water.
ROUGH-IN DIMENSIONS
3002357**
832687
4
1230979-2A-B
12177T-B
Single Hole Kitchen Faucet
230
Min.37
G1/2˝
1500
FAIRFAX
1
