FSA GT1-100 Installation

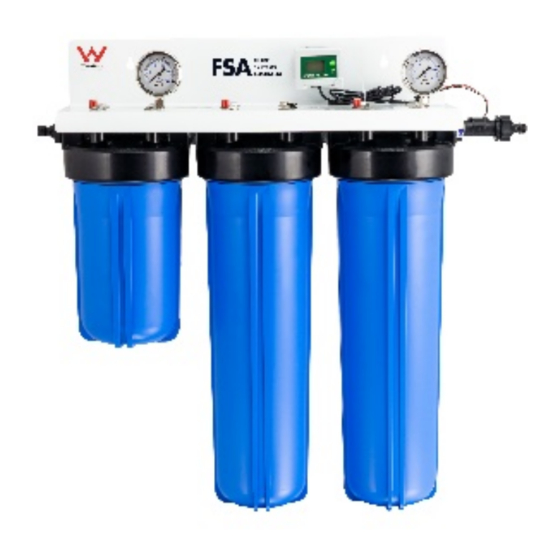

GT1-100 Commercial Window Cleaning
& Car Detailing Spot Free Rinse Water Filter System
WARNING:
For correct operation of this system, it is essential to observe the manufacturer's instructions.
This System must be installed in a vertical position on a solid base or mounted vertically on a solid
surface.
WaterMark:
The Water Filtration Housings used on this system are compliant to WaterMark Standards AS/NZS 3497
under certificate number 23247. WaterMark is the standard that is required by law for a qualified plumber in
Australia to install any item on municipal town water.

Installation:

This system is designed for inline use and is not designed to be under constant pressure. Due to this, a
Qualified Plumber is not required unless the system is to be installed under pressure as a POU Water Filter
System. Failure to follow the manufacturer's instructions and guidelines may void warranty and insurance.

Carbon/Resin Multi-Media Filter:

This system is compatible with standard size cartridges referred to as 10" x 4.5" (pre-filter) and 20" x 4.5"
(stage 2-3).
Before use, the pre-filter will require flushing to clear any carbon dust that may be in the cartridge. To do
this, connect the system & remove the stage 2 and 3 DI filters. Run the water for a couple of minutes or
until the water runs clear. Replace the DI filters into the housings then flush for a further 1 minute.

Working Specifications:

Max Pressure
Working Pressure
Max Flow
Rinse Flow
Temperature
Inlet Water Quality:
Hardness
TDS
Iron

Finding an Installation Point

The filter system has a 1" BSP inlet size which will easily suit installation onto 1" poly pipes. This system is
able to be reduced to ¾" and used with a standard size garden hose fitting (GT19-125).
125 psi
70psi (500 kPa)
20L/Min
7L/Min
1°C – 50°C
<50 mg/L
<200 mg/L
<0.02 mg/L

Installation / Set Up
