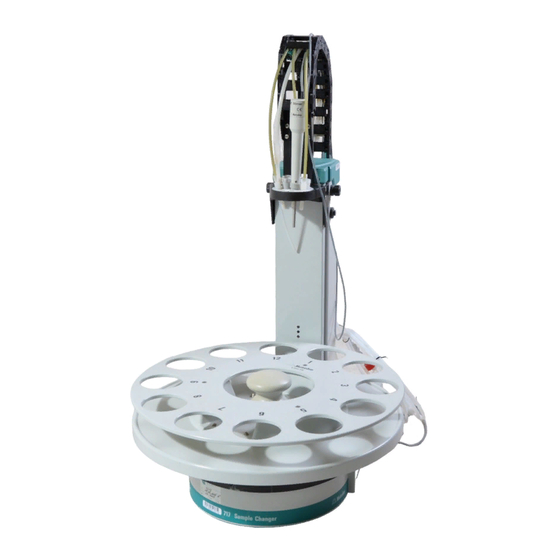

- Page 1 CH-9101 Herisau/Switzerland Tel. +41 71 353 85 85 +41 71 353 89 01 E-Mail sales@metrohm.ch Internet http://www.metrohm.ch 717 Sample Changer Instructions for use 8.717.1003 98.03 sn...
-
Page 2: Table Of Contents
5.3 Warranty and Conformity _________________________ 24 5.3.1 Warranty ..............24 5.3.2 Certificate of Conformity and System Validation for the 717 Sample Changer ....... 25 5.3.3 Certificate of Conformity and System Validation for the 759 Swing Head ........27 5.4 Accessories ____________________________________ 29... -
Page 3: Overview
Stirrer rail Connectors Plug cover Safety note: Do not operate the 717 Sample Changer without splash protection and plug cover being mounted. The plug cover prevents any con- tamination of the connectors, caused by spilled solvents or chemi- cals. 717 Sample Changer, Overview... -
Page 4: Rear View
The Connectors (side view): Remote Stirrer socket sockets Remote Control The remote socket serves the connection of Metrohm- or other measuring instruments that communicate via a serial cable. 1.2 Rear View Guide chain Distribution head Mounting screw for splash protection... -
Page 5: Sensors
External Bus External Bus socket address selector 1.3 Sensors Beaker test Each tower of the 717 Sample Changer is equipped with a beaker indicator to detect the presence of a beaker in front Splash protection of the particular tower. This... -
Page 6: The Sample Changer Models
Tower 2 Tower 2 Tower 1 Tower 1 Tower 1 Model 2.717.0110 Model 2.717.0120 Model 2.717.0130 2 towers, 2 pumps 2 towers, 4 pumps 2 towers, no pumps 4 stirrer connections 4 stirrer connections 4 stirrer connections 717 Sample Changer, Overview... -
Page 7: Installation
29ff). In case of damage, see "Warranty", page 24. Setting up The 717 Sample Changer is a rugged instrument and may be used in rough environments such as laboratories and manufac- turing plants. It must not be exposed to a corrosive atmosphere. -
Page 8: Safety Considerations
2.2 Safety Considerations 2.2 Safety Considerations If failure or malfunctioning occurs during operation of the 717 Sample Changer, the Metrohm Service Department should be consulted. If opening the instrument is unavoidable, the following safety pre- cautions are to be strictly adhered to: Before opening the instrument disconnect it from all electri- cal sources. -
Page 9: Arranging The Accessories
Teflon 4/6 tubing (6.1805.510) and a screw connector 4/6 mm (6.1820.030) to pump 2 (valve marked with 'ê'). During the rinsing procedure, first the sample is sucked off then the electrode is rinsed in the empty vessel. 717 Sample Changer, Installation... -
Page 10: Tubing Fixation
2.3.3 Magnetic Stirrers Magnetic stirrers 2.741.0010 Rack may be placed in any position on the stirrer rail beneath the rack. Stirrer rail 717 Sample Changer, Installation... -
Page 11: Sample Racks
After placing the rack on the turntable, the sample changer must be initialized to Magnet holder enable the safe reading of the magnetic rack code. This can only be done if rack Magnetic sensor position 1 is directed to tower 1. 717 Sample Changer, Installation... -
Page 12: Mounting And Setting Up The Titration Heads
Micro Titration head, see accessory list, page 33. Note on Macro Titration head The arrow sign marks the slightly sloped SGJ boring, which enables to center a rod stirrer or an electrode in a narrow titration vessel. 717 Sample Changer, Installation... -
Page 13: Remote Connections
772 717 Sample Changer 731 Relay Box Connecting peripheral instruments to the 717 Sample Changer re- quires Metrohm cables. Otherwise a safe data transmission may not be guaranteed. All instruments have to be switched off, before they are con- nected. - Page 14 6.2141.020 731 Relay Box 6.2125.100 717 Sample Changer with 759 Swing Head In order to increase the number of samples, the 759 Swing Head with a titration head (2.759.0020) or a transfer head (2.759.0010) can be installed in place of a normal titration head. In this way the titration head can be moved very accurately to the individual ves- sels located in several rows on the sample rack.
-
Page 15: External Bus Connections
2.4 Remote Connections 2.4.1 External Bus Connections Via the "External Bus" the 717 Sample Changer is operated by a control instrument, e.g. the 726 Titroprocessor. Four dosing instruments (Dosimat 685 or Dosino 700) may be connected to the "External Bus" interface using a 729 Dosimat Interface. -
Page 16: Sample Racks
3 Sample Racks A sample rack is a sort of turntable for the positioning of beakers which are to be placed on the 717 Sample Changer. Because for titration, various sizes of beakers are common or required, many kinds of racks can be used and are easily interchangeable. The rack offers space for various numbers of samples depending on the diameter of the beakers. - Page 17 3 Sample Racks The standard racks provided by Metrohm are already equipped with a predefined magnetic code for every rack type. If several racks of the same type are used, the magnet rods can be ar- ranged differently so that a unique identification of a sample rack is possible, if this is desired.
-
Page 18: Swing Head
2 is moved into the rest position. Turn off all mains power switches. Install the new titration head (6.1462.020) or transfer head (6.1462.010) on the underside of the swing head. 717 Sample Changer, Swing Head... - Page 19 The splash protection supplied with the pipetting swing head (2.759.0010) is connected to tower 2. The splash shield supplied with the titration swing head (2.759.0020) is connected to tower 1 when used with the 2-tower model. 717 Sample Changer, Swing Head...
-
Page 20: Accessories For The Titration Head
722 Rod stirrer 2.722.0020 Micro electrode Burette tips M6 spray nozzle M6 spray nozzles 6.2740.020 6.2740.020 M8 Thread stopper 4.658.0180 for Micro electrode or burette tip Stirring propeller 6.1909.030 M8 Aspiration tip 717 Sample Changer, Swing Head... - Page 21 Retighten the screws. Proceed in exactly the same way for the transfer head. 717 Sample Changer, Swing Head...
-
Page 22: Appendix
5.1 Technical Specifications 5 Appendix Appendix 5.1 Technical Specifications 5.1.1 717 Sample Changer Dimensions Height: 0.72 m, Width: 0.28 m, Depth: 0.48 m 15.5 kg (without accessories, 2-tower model) Weight 10.0 kg (without accessories, 1-tower model) Material Sample Changer case:... - Page 23 Nominal functional range 5 – 40 °C Transport and storage: –40 – +70°C Distribution Connection to the External Bus of a Metrohm control device, voltage e.g. 726 Titroprocessor, ... All data are typical values with the exception of those specially marked.
-
Page 24: 759 Swing Head
Transport and storage –40 – +70 °C Distribution 5 V DC, drawing of current 500 mA voltage connection to the remote socket of the Metrohm Sample Changers, e.g. model 717, 730, 760, ... All data are typical values. Safety Specifications... -
Page 25: Servicing And Maintenance
5.2 Servicing and Maintenance 5.2 Servicing and Maintenance 5.2.1 Servicing The maintenance of the 717 Sample Changer should include a yearly service check carried out by a specialist from Metrohm. If caustic or corrosive chemicals are frequently used, shorter time intervals between service checks can be necessary. -
Page 26: Warranty And Conformity
Metrohm from any liability to pay compensation. If any instruments and parts have to be returned, the original packaging should be used if at all possible. This applies above all to instruments, electrodes, burette cylinders and PTFE pistons. -
Page 27: For The 717 Sample Changer
The features of the system software are docu- mented in the instruction manual. Metrohm Ltd. is holder of the SQS certificate of the quality system ISO 9001 for quality assurance in design/development, production, installation and servicing. - Page 28 Ionenanalytik • Analyse des ions • Ion analysis • Análisis iónico 717 Sample Changer EU Declaration of Conformity The Metrohm AG company, Herisau, Switzerland hereby certifies that the instrument: 717 Sample Changer meets the requirements of EU Directives 89/336/EWG and 73/23/EWG.
-
Page 29: For The 759 Swing Head
Security specifications IEC 1010, EN61010, UL 3101-1 The technical specifications are documented in the instruction manual. Metrohm Ltd. is holder of the SQS certificate of the quality system ISO 9001 for quality assurance in design/development, production, installation and servicing. Herisau, Oct. 23, 1997 Dr. - Page 30 Safety requirements for electrical laboratory measurement and control equipment Description of the instrument: The Swing head is an accessory to the Metrohm sample changers 717, 730 and 760 for the automation of batch processing of larger sample series in chemical analytics. Herisau, Oct. 23, 1997 Dr.
-
Page 31: Accessories
Rotating nozzle 6.2740.000 Splash protection 6.2751.010 Plug cover 6.2752.010 External Bus cable DB 37-pol 6.2135.000 Instructions for Use for 717 Sample Changer 8.717.1003 Sample Changer with 1 Tower and 2 Pumps 2.717.0020 includes the following accessories: Pieces SGJ14 sleeve 6.1236.020 SGJ14 plastic stopper 6.1446.000... - Page 32 Bushing 6.2709.070 Splash protection 6.2751.010 Plug cover 6.2752.010 External Bus cable DB 37-pol 6.2135.000 Instructions for Use for 717 Sample Changer 8.717.1003 Sample Changer with 2 Towers and 2 Pumps 2.717.0110 includes following accessories Pieces SGJ14 sleeve 6.1236.020 SGJ14 plastic stopper 6.1446.000...
- Page 33 M6 Spray nozzle 6.2740.020 Splash protection 6.2751.020 Plug cover 6.2752.010 External Bus cable DB 37-pol 6.2135.000 Instructions for Use for 717 Sample Changer 8.717.1003 Sample Changer with 2 Towers without Pumps 2.717.0130 includes the following accessories: Pieces SGJ14 sleeve 6.1236.020 FEP tubing connector M6 80 6.1805.110...
- Page 34 6.2058.000 Splash protection for swing head 6.2751.030 Sample racks and beakers Rack 12x 250 mL M12-0 *) 6.2041.310 Metrohm glass beaker 250 mL 6.1432.320 Metrohm PP beaker 200 mL 6.1453.220 Metrohm PP beaker 250 mL 6.1453.250 Rack 12x 150 mL M12-0 *) 6.2041.360...
- Page 35 6.3014.153 10 mL 6.3014.213 20 mL 6.3014.223 50 mL 6.3014.253 700 Dosino 2.700.0010 Dosing unit for Dosino 2 mL 6.3030.120 5 mL 6.3030.150 10 mL 6.3030.210 20 mL 6.3030.220 50 mL 6.3030.250 729 Dosimat Interface 2.729.0010 717 Sample Changer, Appendix...
-
Page 36: Index
Failure ........6 Remote Interface ..2, 11, 14 Rinsing equipment ....7 Rod magnets ......14 Rod stirrer ....10, 18, 31 Guide chain ... 1, 2, 7, 8, 17 Rotating nozzle ....7, 10 717 Sample Changer, Appendix...
