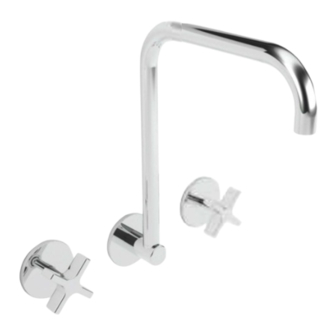

EXO WALL SINK SET
50
SPECIFICATIONS
Recommended use
Domestic, hotel and commercial
Colour availability
Chrome, Matt Black, Gunmetal, Brushed Nickel
Pressure rating
Maximum continuous operating pressure 1 000kPa.
For best performance and longer life we recommend
150-500kPa
Hot and cold water inlet pressure should be equal.
Maximum continuous working temperature 80
Temperature rating
Suitable Hot Water
Storage tank: Yes
Units
Continuous Flow: Yes
Gravity Feed: Not suitable
Typically Electroplated Brass
Material
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the product
warranty - refer to Warranty Conditions.
WaterMark
AS/NZS3718
WMKA01455
240
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people.
The manufacturer/distributor reserves the right to vary specifications or delete models from their range without prior
notification. Dimensions are nominal measurements only. Dimensions and set-outs Hsted are correct at time of publication
however the manufacturer/distributor takes no responsibHity for printing errors.
Tech Page Version - INS347 I Rev 00.
0
0
C'\I
°
C
To see the complete MILLI range go to
www.reece.com.au/bathrooms
pagel of4
019
reece
Advertisement
Related Manuals for Reece Milli EXO WALL SINK SET
Summary of Contents for Reece Milli EXO WALL SINK SET
- Page 1 Gravity Feed: Not suitable Typically Electroplated Brass Material To see the complete MILLI range go to www.reece.com.au/bathrooms CLEANING RECOMMENDATIONS We recommend the use of soapy water or approved cleaners. This product should not be cleaned with abrasive materials. Damage caused by any improper treatment is not covered by the product warranty - refer to Warranty Conditions.
- Page 2 page2 of 4 EXO WALL SINK SET SPOUT FITTING O-rings Remove the set screw from the rear of spout Remove the spout being careful not to damage assembly and place somewhere safe. Carefully it or the a-rings. place the push on wall plate onto the assembly if not already done so.
- Page 3 page 3 of 4 EXO WALL SINK SET 40 to 52mm FACTORY POSITIONED SEAL SET OUT DISTANCE Minimum 10mm Maximum 22mm Important: Do not move/remove the factory set seal prior to installation. Place each Ceramic cartridge with the factory set seal into the appropriate breech body. Using the supplied tool, screw the cartridge in until the seat is reached and nip it up until firm.
- Page 4 page 4 of 4 EXO WALL SINK SET HANDLE FITTING 1. Separate parts from the handle as shown in the illustration to the right. 2. Turn the ceramic cartridge to the off position. 3. Screw the Flange with O-ring onto the cartridge lock nut until flush against the finished wall.
