PURE DIVERTER SYSTEM
28
Dimensions are nominal measurements only.
SPECIFICATIONS
Recommended Use
Finish
Material
Pressure Rating
Temperature Rating
Suitable Hot Water Units
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the product warranty. Refer to Warranty Conditions.
AS/NZS 3718
LIC. 20081
54

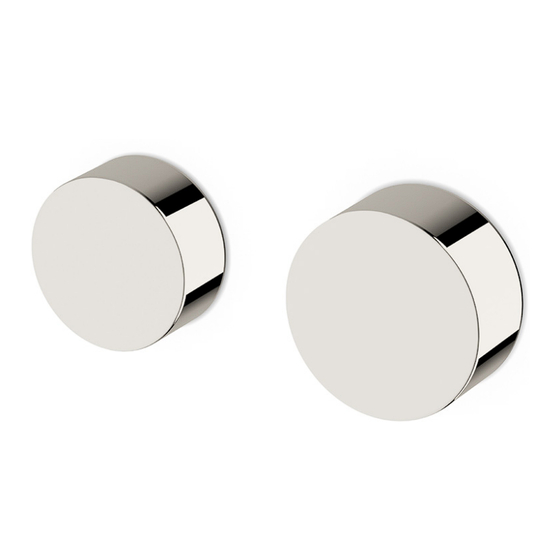

Diverter
Domestic, Hotel and Commercial
Chrome, Matt Black, Rose Gold,
Brushed Gunmetal
Brass
Recommended working pressure 300 - 500Kpa
Max continuous working temperature 65 deg. C
Storage Tank: Yes
Continuous Flow: Yes
Gravity Feed: Not recommended
Disclaimer: Products in this specification manual must by regulation be installed by licensed and
registered trade people. The manufacturer/distributor reserves the right to vary specifications or
delete models from their range without prior notification. Dimensions are nominal measurements
only. Dimensions and set-outs listed are correct at time of publication however the manufacturer/
distributor takes no responsibility for printing errors.
Tech Page Version 1
62
100
Mixer
To see the complete MILLI range go to
page 1 of 4
page 1 of 4
www.reece.com.au/bathrooms
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Reece Milli Series
Summary of Contents for Reece Milli Series
- Page 1 Suitable Hot Water Units Storage Tank: Yes To see the complete MILLI range go to Continuous Flow: Yes www.reece.com.au/bathrooms Gravity Feed: Not recommended CLEANING RECOMMENDATIONS We recommend the use of soapy water or approved cleaners. This product should not be cleaned with abrasive materials.
- Page 2 page 2 of 4 PURE DIVERTER SYSTEM Matte Black Brushed Gunmetal Rose Gold Don’t risk it, use a licensed plumber.
-
Page 3: Installation Instructions
page 3 of 4 PURE DIVERTER SYSTEM INSTALLATION INSTRUCTIONS Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003 Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c. View from above NOGGING This Stud face Masterfit side... - Page 4 page 4 of 4 page 4 of 4 PURE DIVERTER SYSTEM INSTALLATION INSTRUCTIONS Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003 Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c. FIT OFF Fig.1 FRONT FACE Wall...
