MILLI

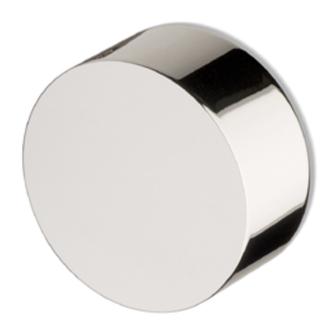

pure progressIve shower/baTh MIxer
Dimensions are nominal measurements only.
speCIFICaTIons
recommended use
Domestic, Hotel and Commercial.
Finish
Chrome, Matt Black, Rose Gold,
Brushed Gunmetal.
pressure rating
Maximum continuous operating pressure 1000kPa.
As per AS/NZS 3500 pressure must be limited to
500kPa on any new home extension or renovation.
For best performance and longer life we recommend
150-500kPa
Hot and cold water inlet pressure should be equal.
Temperature rating
Max continuous working temperature 65 deg. C
suitable hot water
Storage Tank: Yes
units
Continuous Flow: Yes
Gravity Feed: Not recommended
CLeanIng reCoMMendaTIons
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the product warranty. Refer to Warranty Conditions.
disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade
people. The manufacturer/distributor reserves the right to vary specifications or delete models from their range
without prior notification. Dimensions are nominal measurements only. Dimensions and set-outs listed are correct
AS/NZS 3718
at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
LIC. 20081
Tech page version 1
62
28
To see the complete MILLI range go to
www.reece.com.au/bathrooms
page 1 of 3
Advertisement
Table of Contents
Related Manuals for Reece MILLI
Summary of Contents for Reece MILLI
- Page 1 Hot and cold water inlet pressure should be equal. Temperature rating Max continuous working temperature 65 deg. C suitable hot water Storage Tank: Yes To see the complete MILLI range go to units www.reece.com.au/bathrooms Continuous Flow: Yes Gravity Feed: Not recommended CLeanIng reCoMMendaTIons We recommend the use of soapy water or approved cleaners.
-
Page 2: Installation Instructions
2 of 3 MILLI pure progressIve shower/baTh MIxer InsTaLLaTIon InsTruCTIons Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003 Recommended working water pressure 150 - 500 kPa. Maximum water temperature is 65 deg.C. Fig.1... - Page 3 3 of 3 MILLI pure progressIve shower/baTh MIxer InsTaLLaTIon InsTruCTIons ROUGH IN PLUMBING Prior to installing, calculate the finished wall thickness to ensure enough adjustment is available when fitting the Handle. The Mixer is supplied with a plastic cover to protect the Mixer during Plastering and Tiling.
