STEP 1
Determine required installation options
Depending upon the requirements, the device can be installed with the following options.
Type1:
Device Only
Type3:
TT6000v24 with Driver ID
Additional Options: OBD/JBUS Cable, Iridium, TTMEBRIDGE
STEP 2
Complete the wire connections according to the required options
Red:
12-24 Volts ( + ) Constant
White: Ignition ( + ) (MUST be a true ignition source)
Black: Ground
Green: Starter kill ( – )
Purple: PERF Switch Ground
Grey: iButton Input
OBD/JBUS Data Cable - Refer to the TT6000v24 OBD/JBUS Connections in the right-hand column
– GROUND MUST BE CONNECTED DIRECTLY TO CHASSIS WITH PAINT REMOVED –
STEP 3
Position the device in an Optimal Location
Failure to adhere to these suggestions will result in a weak cellular and/or GPS signal and will a ect
the performance of the device.
• Secure in upper portion of dash in a hidden location with correct side pointing
skyward (label will indicate proper orientation). Example: Above instrument cluster.
• Do not cover with metal or position near any source of interference (Vehicle Radio, BCM). Keep a
safe distance of at least 24".
STEP 4
Install Additional Options
Refer to additional included installation
guides (E.g. Iridium, TTMEBRIDGE6000)
MUST BE TESTED
Please call us
IMPORTANT
MUST BE TESTED
CALL TO TEST GPS TRACKING DEVICE
BEFORE CLOSING UP DASH
CALL
FAILURE TO FOLLOW THESE INSTRUCTIONS MAY
NOW
DAMAGE EQUIPMENT AND VOID ITS WARRANTY
1.780.391.3800
CERTIFIED
TRACKING
SOLUTIONS
TOLL - FREE 1.855.287.4477 (CTS4GPS)
Type2: TT6000v24 with Starter Kill/input/output
Type4: TT6000v24 with Driver ID & PERF
Yellow/Black: Input 1( – )
Yellow/Orange: Input 2( – )
Yellow/Green: Input 3( – )
Yellow/Red:
Input 4( – )/PERF Switch Input
Green/Blue:
Buzzer Output
Grey/Black:
iButton Input
STEP 5
Confirm LED Status
Orange: Flashing
Connected/Online
Green: 1Flash/Sec
Valid GPS
1.780.391.3800
TOLL - FREE 1.855.287.4477 ( CTS4GPS )
TT6000v24
OBDII
Installation
1) Plug the 24-Pin Connector
2) Connect the male end
(2)
3) Mount the device with the correct side facing up.
1
titangps.ca
TT6000v24
3
titangps.ca
TT6000v24
OPEN PORT
1) Unclip/unscrew vehicle OBD port from the factory mounted position.
2) Plug the male end of the Y-Cable
3) Mount short (female OBDII) end
4) Plug the 24-Pin Connector
the dash. Ensure correct side is facing up.
JBUS
Installation
1) Plug the 24-Pin Connector
2) Connect the male end
(2)
3) Mount the device with the correct side facing up.
1
titangps.ca
TT6000v24
3
titangps.ca
TT6000v24
OPEN PORT
1) Unclip/unscrew vehicle JBUS port from the factory mounted position.
2) Plug the male end of the Y-Cable
3) Mount short (female JBUS) end
4) Plug the 24-Pin Connector
the dash. Ensure correct side is facing up.

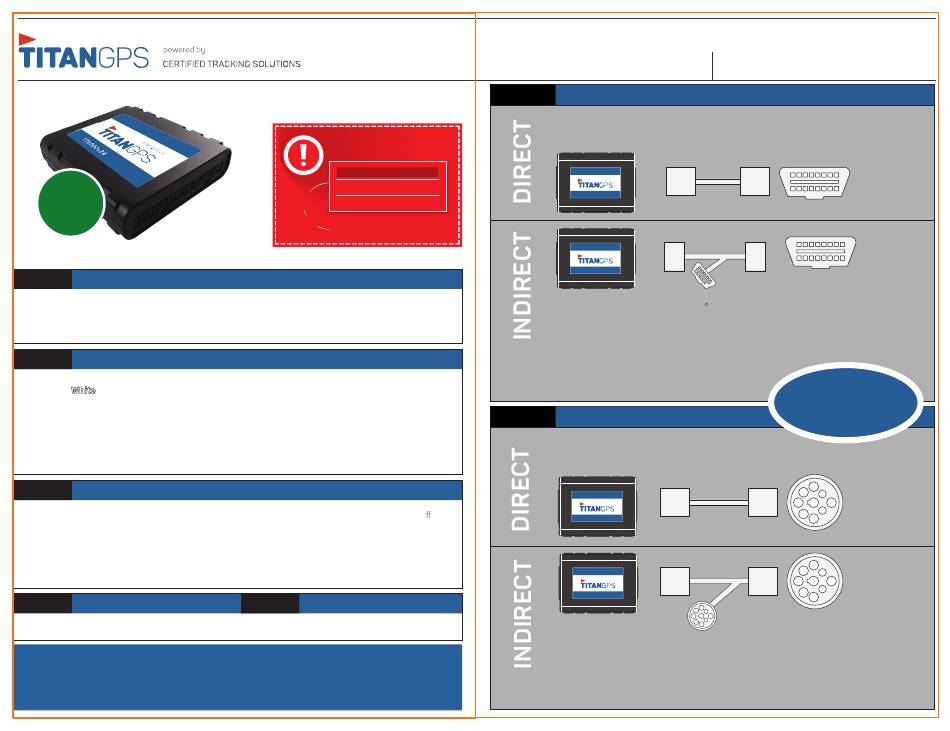

QUICK INSTALL GUIDE
(1)
into the device.
of the direct connect cable to the vehicle OBDII port.
2
OBD PORT
VEHICLE
1
OBD PORT
VEHICLE
2
(1)
to the unmounted vehicle OBDII port.
(2)
of the Y-Cable to factory mounting position.
(3)
into the device and position under the top skin of
IMPORTANT
If installing 24 pin main harness,
DO NOT connect the Red Constant wire
from Step 2. All other connections can
be completed as necessary
(1)
into the device.
of the direct connect cable to the vehicle JBUS port.
2
VEHICLE JBUS PORT
1
VEHICLE JBUS PORT
2
(1)
to the unmounted vehicle JBUS port.
(2)
of the Y-Cable to factory mounting position.
(3)
into the device and position under the top skin of
