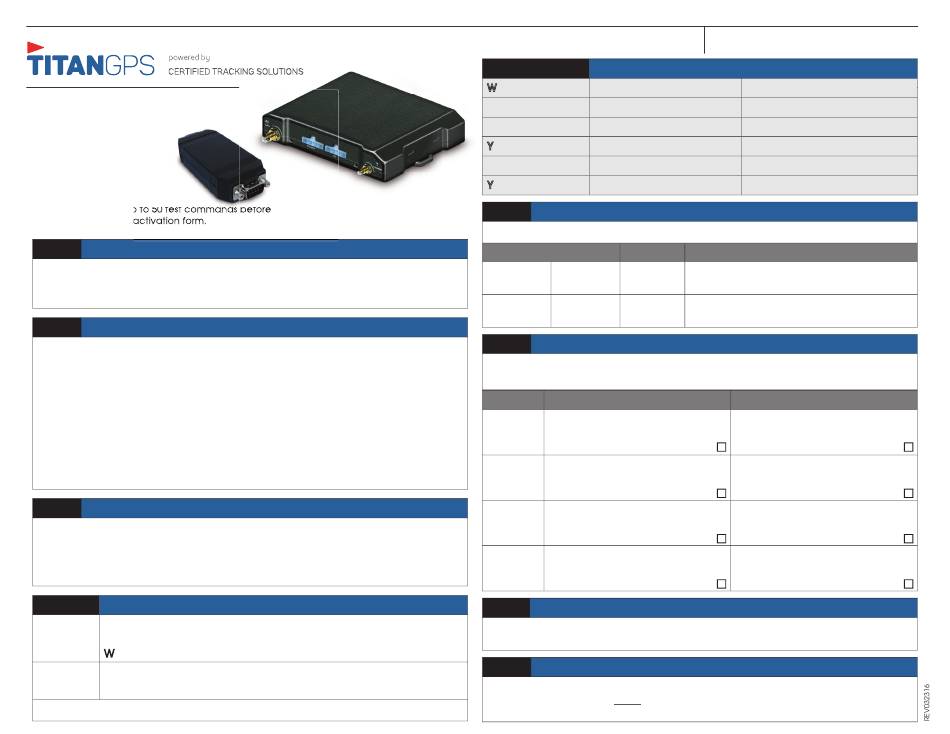

TitanGPS TT4200 Quick Install Manual

TTMEBridge
Attention:
This modem is shipped temporarily pre-activated for
the installer to send up to 50 test commands before
having to send in the activation form.
STEP 1: TTMEBridge Preparation
Connect the black cable to the Y-cable on the TTMEBridge and the Aux2 port on
the modem. Plug the serial cable into the Y cable. Ensure the screws on all serial
connections are tight.
STEP 2: Modem and TTMEBridge Installation
Install the modules in a secure position where they will not be subject to moisture
damage and cannot be easily found (preferably under the dash). Run the
input wiring to the junction box so the wiring is secure and will not be damaged.
Connect the serial cable from the TTMEBridge to the spreader control. Always
solder and tape all connections.
Spreader Controls
Cirus Model - Connection on the fl oor between seats near back wall.
Accucast Model - Connection under the spreader control. Important! If there
are 2 ports, use the port closest to the driver.
STEP 3: Connecting the Billing Switch
Depending on the spreader control installation, the billing switch connection may
or may not be located in the junction box. Determine which wire in the junction
box changes to 12v when on and 0 when off. Connect the line run for the billing
switch to this connection.
STEP 4: Primary Wire Connections
TT4200 Black: Ground
Red: 12 Volts (Constant)
White: Ignition (MUST be a true ignition source)
MEBRIDGE Black: Ground
Red: True Ignition
GROUND MUST BE CONNECTED DIRECTLY TO THE CHASSIS WITH PAINT REMOVED
TT4200 TTMEBRIDGE GRADER/PLOW
Step 5:
White:
Green:
Violet:
Yellow:
Orange/Brown:
Yellow/Green
TT4200
STEP 6:
The two LED's indicate the status of the GSM-GPRS and GPS signal.
LED Color
Orange
Green
STEP 7:
This step confi rms the modem is connected correctly to the plows. Make sure the
ignition key on the junction box is in the "on" position.
State
Front Plow Move the plow down. Check to
Belly Plow Move the plow down. Check to
Left Wing
Right
Wing
STEP 8:
Turn the ignition key on the junction box to the "off" position.
Repeat steps in Step 7.
STEP 9:
Call Certifi ed Tracking Solutions at 1-780-391-3800 to test the modem to ensure it is
reporting correctly. This MUST be done to ensure proper installation. The hours of
operation are Monday to Friday, 8am to 6pm MST.
QUICK INSTALL GUIDE
TT4200
TTMEBRIDGE Plow Input Detection and Monitoring
Input 1 (-)
Input 2 (-)
Input 3 (-)
Input 4 (-)
Input 5 (+)
Confi rm LED Status
Type LED Action Description
GMS-GPRS Solid Indicates device has connected to the
cellular network
GPS Solid Indicates device has obtained a valid GPS
signal
Plow and Input Test
Confi rm True State or "ON"
see that the module input wire is
ground.
see that the module input wire is
ground.
Move the plow down. Check to
see that the module input wire is
ground.
Move the plow down. Check to
see that the module input wire is
ground.
Junction Box Testing
Call To Test
Front Plow
Belly Plow
Left Wing
Right Wing
Billing
Do Not Use
Confi rm False State or "OFF"
Move the plow up. Check to
see that the module input wire is
open.
Move the plow up. Check to
see that the module input wire is
open.
Move the plow up. Check to
see that the module input wire is
open.
Move the plow up. Check to
see that the module input wire is
open.
