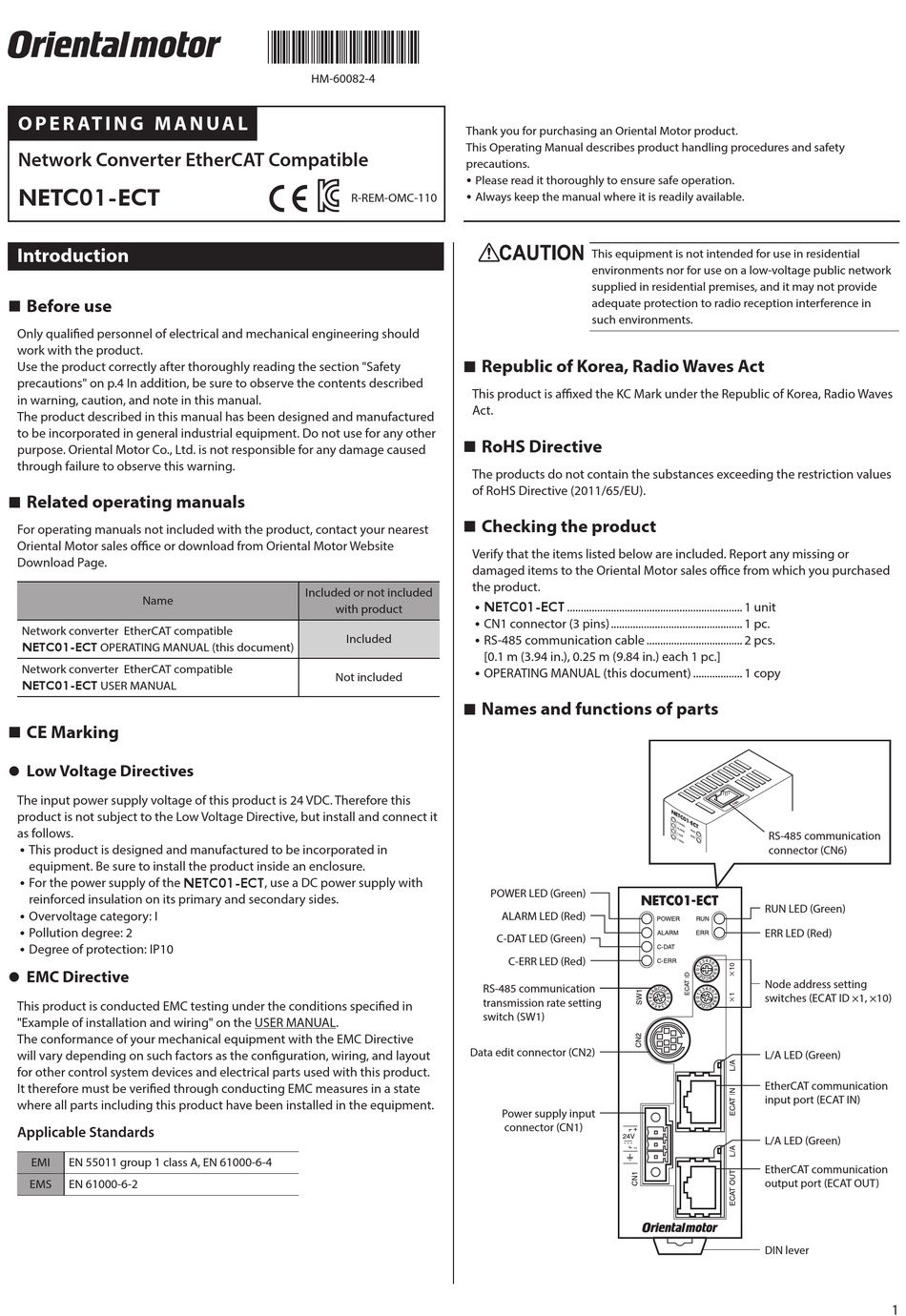

Oriental motor NETC01-ECT Operating Manual

O P E R AT I N G M A N U A L
Network Converter EtherCAT Compatible
NETC01-ECT

Introduction

„ Before use
Only qualified personnel of electrical and mechanical engineering should
work with the product.
Use the product correctly after thoroughly reading the section "Safety
precautions" on p.4 In addition, be sure to observe the contents described
in warning, caution, and note in this manual.
The product described in this manual has been designed and manufactured
to be incorporated in general industrial equipment. Do not use for any other
purpose. Oriental Motor Co., Ltd. is not responsible for any damage caused
through failure to observe this warning.
„ Related operating manuals
For operating manuals not included with the product, contact your nearest
Oriental Motor sales office or download from Oriental Motor Website
Download Page.
Name
Network converter EtherCAT compatible
NETC01-ECT OPERATING MANUAL (this document)
Network converter EtherCAT compatible
NETC01-ECT USER MANUAL
„ CE Marking
z Low Voltage Directives
The input power supply voltage of this product is 24 VDC. Therefore this
product is not subject to the Low Voltage Directive, but install and connect it
as follows.
y This product is designed and manufactured to be incorporated in
equipment. Be sure to install the product inside an enclosure.
y For the power supply of the NETC01-ECT, use a DC power supply with
reinforced insulation on its primary and secondary sides.
y Overvoltage category: I
y Pollution degree: 2
y Degree of protection: IP10
z EMC Directive
This product is conducted EMC testing under the conditions specified in
"Example of installation and wiring" on the USER MANUAL.
The conformance of your mechanical equipment with the EMC Directive
will vary depending on such factors as the configuration, wiring, and layout
for other control system devices and electrical parts used with this product.
It therefore must be verified through conducting EMC measures in a state
where all parts including this product have been installed in the equipment.
Applicable Standards
EMI EN 55011 group 1 class A, EN 61000-6-4
EMS EN 61000-6-2
HM-60082-4
Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures and safety
precautions.
y Please read it thoroughly to ensure safe operation.
y Always keep the manual where it is readily available.
R-REM-OMC-110
„ Republic of Korea, Radio Waves Act
This product is affixed the KC Mark under the Republic of Korea, Radio Waves
Act.
„ RoHS Directive
The products do not contain the substances exceeding the restriction values
of RoHS Directive (2011/65/EU).
„ Checking the product
Verify that the items listed below are included. Report any missing or
damaged items to the Oriental Motor sales office from which you purchased
the product.
Included or not included
y NETC01-ECT ................................................................ 1 unit
with product
y CN1 connector (3 pins) ................................................ 1 pc.
Included
y RS-485 communication cable ................................... 2 pcs.
y OPERATING MANUAL (this document) .................. 1 copy
Not included
„ Names and functions of parts
Data edit connector (CN2)
This equipment is not intended for use in residential
environments nor for use on a low-voltage public network
supplied in residential premises, and it may not provide
adequate protection to radio reception interference in
such environments.
[0.1 m (3.94 in.), 0.25 m (9.84 in.) each 1 pc.]
POWER LED (Green)
ALARM LED (Red)
C-DAT LED (Green)
C-ERR LED (Red)
RS-485 communication
transmission rate setting
switch (SW1)
Power supply input
connector (CN1)
RS-485 communication
connector (CN6)
RUN LED (Green)
ERR LED (Red)
Node address setting
switches (ECAT ID ×1, ×10)
L/A LED (Green)
EtherCAT communication
input port (ECAT IN)
L/A LED (Green)
EtherCAT communication
output port (ECAT OUT)
DIN lever
1
