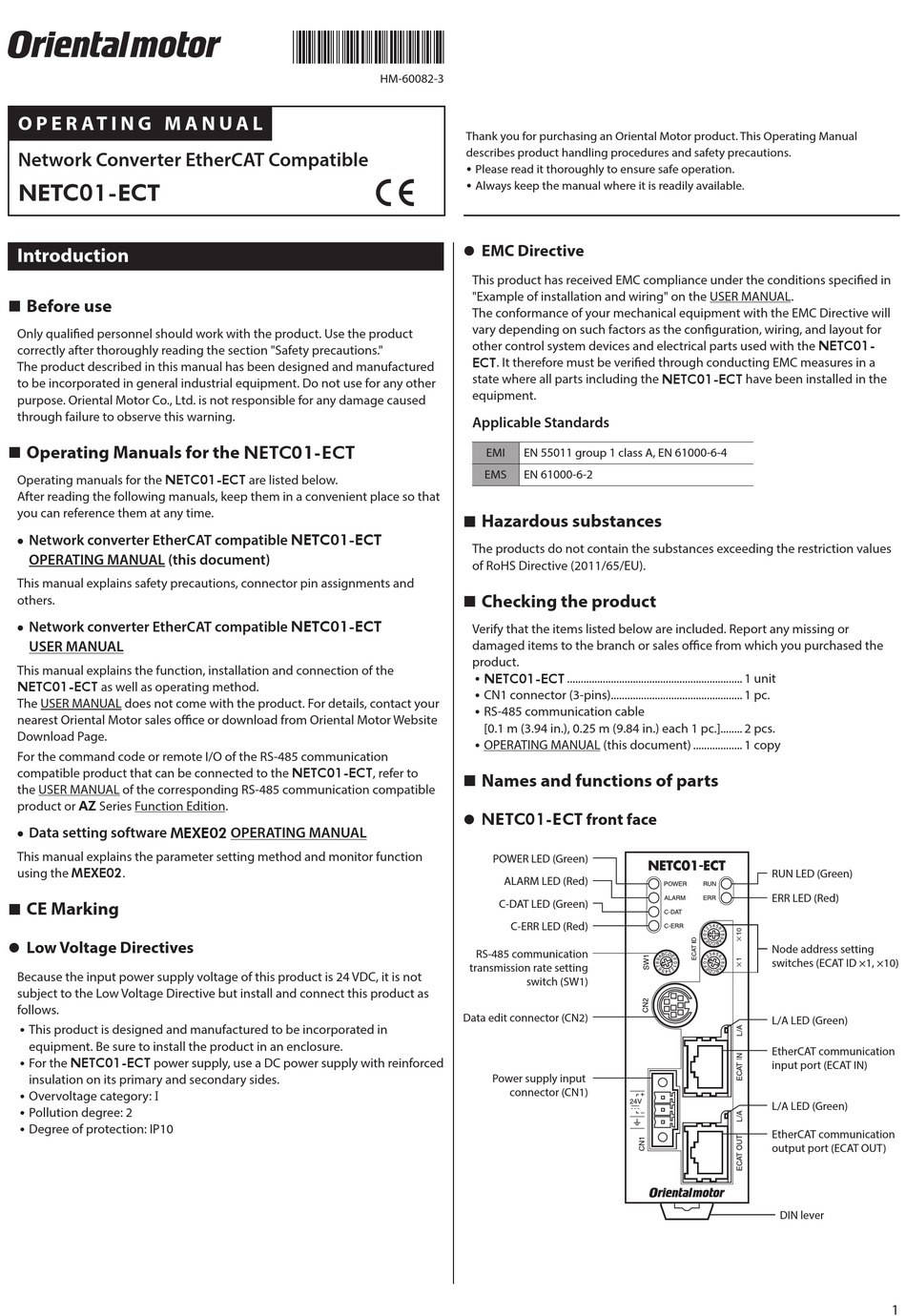

Oriental motor NETC01-ECT Operating Manual

O P E R A T I N G M A N U A L
Network Converter EtherCAT Compatible
NETC01-ECT
Introduction
„ Before use
Only qualified personnel should work with the product. Use the product
correctly after thoroughly reading the section "Safety precautions."
The product described in this manual has been designed and manufactured
to be incorporated in general industrial equipment. Do not use for any other
purpose. Oriental Motor Co., Ltd. is not responsible for any damage caused
through failure to observe this warning.
„ Operating Manuals for the NETC01-ECT
Operating manuals for the NETC01-ECT are listed below.
After reading the following manuals, keep them in a convenient place so that
you can reference them at any time.
• Network converter EtherCAT compatible NETC01-ECT
OPERATING MANUAL (this document)
This manual explains safety precautions, connector pin assignments and
others.
• Network converter EtherCAT compatible NETC01-ECT
USER MANUAL
This manual explains the function, installation and connection of the
NETC01-ECT as well as operating method.
The USER MANUAL does not come with the product. For details, contact your
nearest Oriental Motor sales office or download from Oriental Motor Website
Download Page.
For the command code or remote I/O of the RS-485 communication
compatible product that can be connected to the NETC01-ECT, refer to
the USER MANUAL of the corresponding RS-485 communication compatible
product or AZ Series Function Edition.
• Data setting software MEXE02 OPERATING MANUAL
This manual explains the parameter setting method and monitor function
using the MEXE02.
„ CE Marking
z Low Voltage Directives
Because the input power supply voltage of this product is 24 VDC, it is not
subject to the Low Voltage Directive but install and connect this product as
follows.
y This product is designed and manufactured to be incorporated in
equipment. Be sure to install the product in an enclosure.
y For the NETC01-ECT power supply, use a DC power supply with reinforced
insulation on its primary and secondary sides.
y Overvoltage category: I
y Pollution degree: 2
y Degree of protection: IP10
HM-60082-3
Thank you for purchasing an Oriental Motor product. This Operating Manual
describes product handling procedures and safety precautions.
y Please read it thoroughly to ensure safe operation.
y Always keep the manual where it is readily available.
z EMC Directive
This product has received EMC compliance under the conditions specified in
"Example of installation and wiring" on the USER MANUAL.
The conformance of your mechanical equipment with the EMC Directive will
vary depending on such factors as the configuration, wiring, and layout for
other control system devices and electrical parts used with the NETC01-
ECT. It therefore must be verified through conducting EMC measures in a
state where all parts including the NETC01-ECT have been installed in the
equipment.
Applicable Standards
EMI EN 55011 group 1 class A, EN 61000-6-4
EMS EN 61000-6-2
„ Hazardous substances
The products do not contain the substances exceeding the restriction values
of RoHS Directive (2011/65/EU).
„ Checking the product
Verify that the items listed below are included. Report any missing or
damaged items to the branch or sales office from which you purchased the
product.
y NETC01-ECT ................................................................ 1 unit
y CN1 connector (3-pins) ................................................ 1 pc.
y RS-485 communication cable
[0.1 m (3.94 in.), 0.25 m (9.84 in.) each 1 pc.]........ 2 pcs.
y OPERATING MANUAL (this document) .................. 1 copy
„ Names and functions of parts
z NETC01-ECT front face
POWER LED (Green)
ALARM LED (Red)
C-DAT LED (Green)
C-ERR LED (Red)
RS-485 communication
transmission rate setting
switch (SW1)
Data edit connector (CN2)
Power supply input
connector (CN1)
RUN LED (Green)
ERR LED (Red)
Node address setting
switches (ECAT ID ×1, ×10)
L/A LED (Green)
EtherCAT communication
input port (ECAT IN)
L/A LED (Green)
EtherCAT communication
output port (ECAT OUT)
DIN lever
