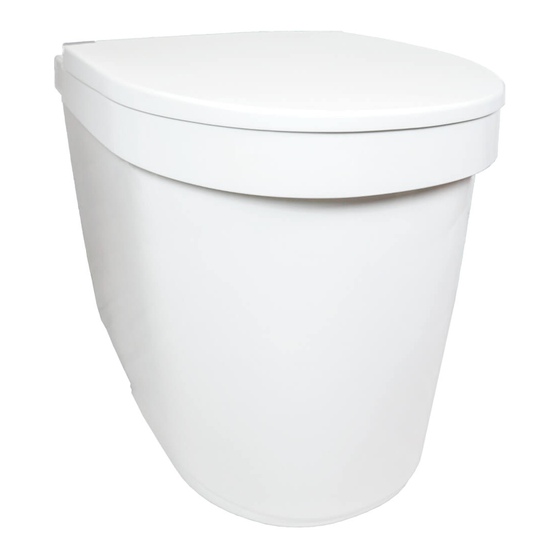

- Page 1 MADE IN VÄRNAMO SWEDEN Tiny Tiny ® ® Tiny with urine container art.no. 1270-01 User manual Användarmanual Käyttöopas Brukerhåndbok Bedienungsanleitung Mode d’emploi Manual de usuario 12340-01...
- Page 2 Thank you for choosing a product from Separett and congratulations on your new toilet! At Separett, we have been developing toilet solutions that are not limited by the availability of either water or sewage systems for over 40 years, with the vision of contributing to a higher quality of life for the many.
-
Page 3: Warranty
However, this warranty does not apply to normal wear and tear, incorrect use or maintenance, or if the customer has damaged or altered the product in some way. If you have any questions regarding spare parts or warranty, please contact your nearest Separett dealer, which you can Keep your receipt... -
Page 4: Table Of Contents
Content Warranty Important safety instructions Technical data Waste handling Troubleshooting Accessories Contact Us... -
Page 5: Important Safety Instructions
Important safety instructions IMPORTANT SAFETY INSTRUCTIONS READ THE INSTRUCTIONS CAREFULLY BEFORE USE. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY PERSONAL INJURY OR OTHER DAMAGES ARI- SING AS A RESULT OF FAULTY INSTALLATION OR IMPROPER USE. SPARE THE USER MANUAL FOR FUTURE NEEDS! Safety This product can be used by children and people with impaired physical, sensory or mental capacity, as well as people... - Page 6 The toilet must only be used in accordance with the user ma- nual. Materials not associated with normal toilet use should not be thrown in the toilet. Ensure that all new users of the toilet receive required information on how to use the toilet safely. The toilet is not adapted for standing or climbing on.
-
Page 7: Technical Data
Technical data Toilet parts 1. Lid 8. Fan duct 2. Emptying indicator 9. Ventilation outlet 3. Power connection 10. Solid waste container 4. Seat 11. Clip-on strip for bag 5. Urine bowl 12. Lid for solid waste 6. Inner lid container 7. - Page 8 Measurements Height: 470 mm (18.5”) Length: 497 mm (19.6”) Width: 398 mm (15.7”) Seat height: 440–452 mm (17.3–17.8”) Material Outer material: High-gloss polypropylene Inner material: Polyamide and polypropylene Gaskets: Thermoplastic (TPE) All materials are recyclable Weight 8.5 kg (18.7 lbs) Volume Urine container: 7,1 L Solid waste container: 14,5 L...
-
Page 9: Use
2. Connect the toilet to a power source (see section “Power supply for toilet”) 3. Make sure that the fan is running 4. Place a compostable waste bag for Tiny in the waste container. The bag must always be held getting caught in the view screen. - Page 10 The view screens will slide away when you sit down. Toilet paper can be thrown in the same bin as the solid waste. IMPORTANT! Never throw burning or smoldering objects in the toilet! User instructions can be downloaded at www.separett.com.
- Page 11 Separett Tiny should be cleaned with an environmentally friendly non-abrasive cleaner. This toilet is made of a strong, high-gloss polypropylene material that risks being scratched if an abrasive cleaner or scrubbing plate is used. fan duct with water to maintain good ventilation.
-
Page 12: Waste Handling
Waste handling IMPORTANT! Emptying of urine container For full-time use in a household of 2 people, the urine container should be emptied approximately 2–3 times per week. The toilet will signal when the urine container is full by illuminating the logo on the toilet in red. - Page 13 Emptying of solid waste For full-time use in a household of 2 people, the solid waste should be emptied approximately after 2 weeks of use. Open the upper part of the toilet to empty the solid waste. Make sure that the top is locked in its opened position before releasing it.
-
Page 14: Troubleshooting
• Has the piping been carried out in accordance with the instructions? Problems with pests in the toilet Assuming a correct installation and correct use of Separett Tiny, the toilet space should be odor free. This means that the toilet does not need to have any additional material (such as sawdust) added to the waste container*. -
Page 15: Accessories
Urine tube 1343 With this set a Tiny with urine container can be converted into Tiny with external urine collection. Consumables Bio Drain Cleaner 5-pack 1118 Separett Bio Drain Cleaner is a biological tablet that is placed in the basket in the urine bowl of the toilet. -
Page 16: Contact Us
Documentation This user manual as well as instructional videos are available at any time on our website. Contact us please feel free to contact us: Global Website: www.separett.us Website: www.separett.com Email: contact.us@separett.com Email: info@separett.com Phone: +1(800) 975-6740 Phone: +46 (0)370-307200... - Page 17 www.separett.com...
