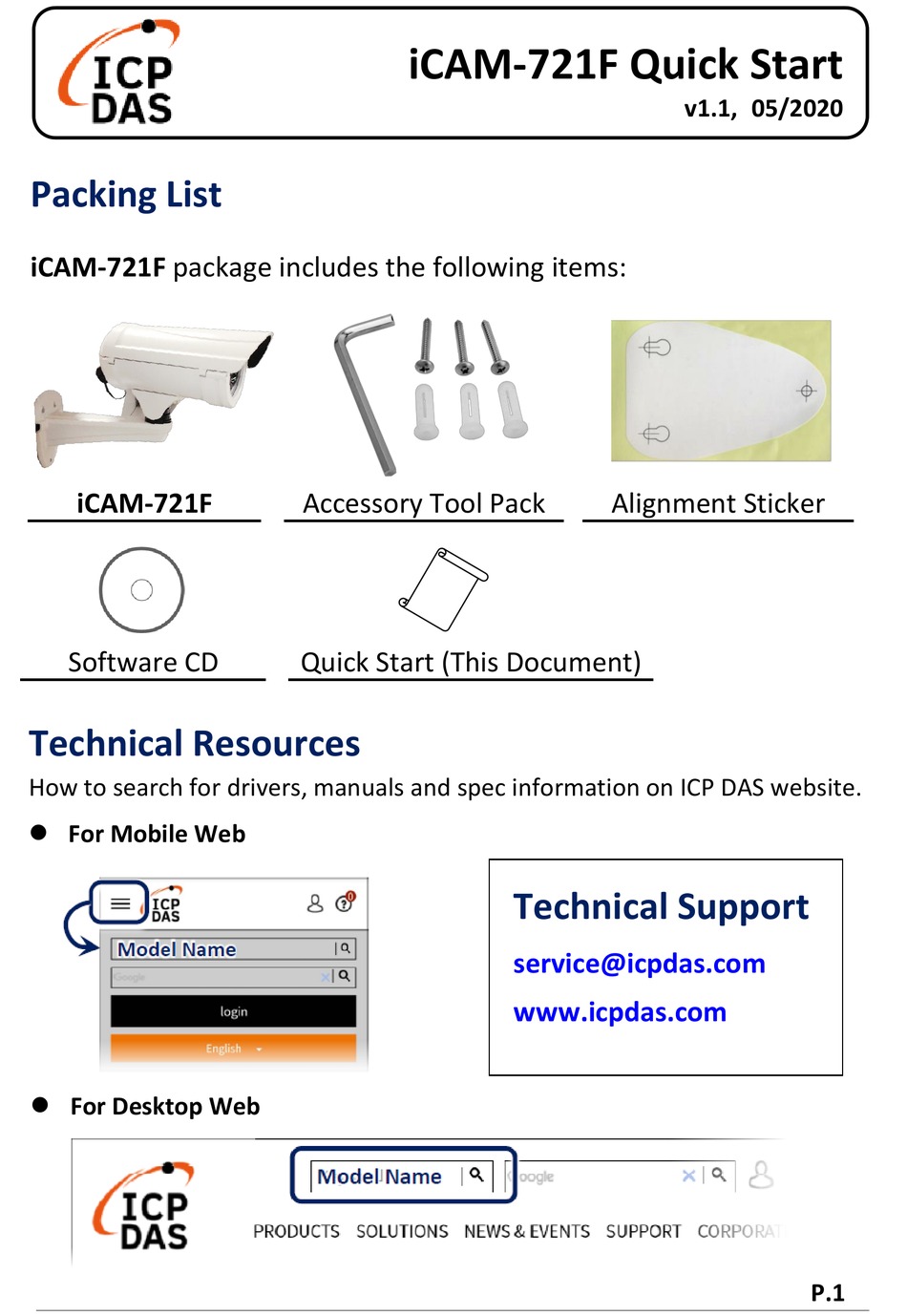

Packing List
iCAM-721F package includes the following items:

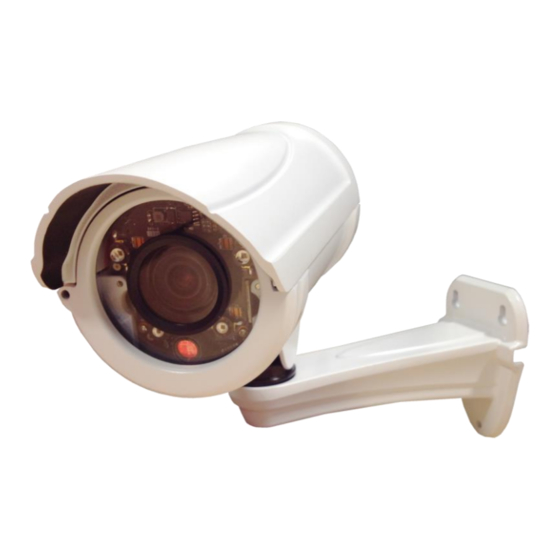

iCAM-721F
Software CD
Technical Resources
How to search for drivers, manuals and spec information on ICP DAS website.
For Mobile Web
For Desktop Web
iCAM-721F Quick Start
Accessory Tool Pack
Quick Start (This Document)
v1.1, 05/2020
Alignment Sticker
Technical Support
service@icpdas.com
www.icpdas.com
P.1
Advertisement
Related Manuals for ICP DAS USA iCAM-721F
Summary of Contents for ICP DAS USA iCAM-721F
- Page 1 Quick Start v1.1, 05/2020 Packing List iCAM-721F package includes the following items: iCAM-721F Accessory Tool Pack Alignment Sticker Software CD Quick Start (This Document) Technical Resources How to search for drivers, manuals and spec information on ICP DAS website.
-
Page 2: Physical Connection
Physical Connection iCAM-721F PC/Notebook PoE Switch RJ45 ① ② 1) Be sure that your PC or Notebook has connected to your local Ethernet network. 2) Be sure that IP Camera has connected to your local networking via the Ethernet port (RJ45) on the cable. For this PoE model, user can use PoE Switch as power supply. - Page 3 CAM FINDER Installation CAM FINDER software utility installation is required for finding out your camera on local network that you can launch camera web pages via Internet Browser or do some basically setting directly without camera web pages. CAM FINDER utility programs are located in the Software iCAM CD provided together with the device.
-
Page 4: Network Configuration
Network Configuration CAM FINDER is a utility that provides an easier, more efficient way to configure the IP address and network settings of the devices. It even provides a convenient way to set the network settings for multiple devices simultaneously using the batch setting function. Moreover, CAM FINDER can save the network settings for all devices as a backup and restore them when necessary. - Page 5 1) Click the [Device Search] on the top of Window to search the camera on the network. 2) From the list, select the device item with the MAC Address that corresponds to the iCAM-721F that is to be configured. 3) Double click the item to open the Property...
- Page 6 Modify the relative network settings of Static IP Address. Click [Set] button to complete the property configuration settings.
- Page 7 Open the Web-based UI of the selected camera To access the Web-based UI of the selected unit, run the [Open Web] on the select item. For first time user, there will be a prompt to install the NETCAM VIEWER PLUG-IN. Click the hyper-link directly to download.
- Page 8 3) If the device has been configured correctly, the default Web browser will open to the home page of the selected device. * Username and password is required. (Default is admin / admin)
