iCAM-Z MR8422X Quick Start
v1.2, 01/2021

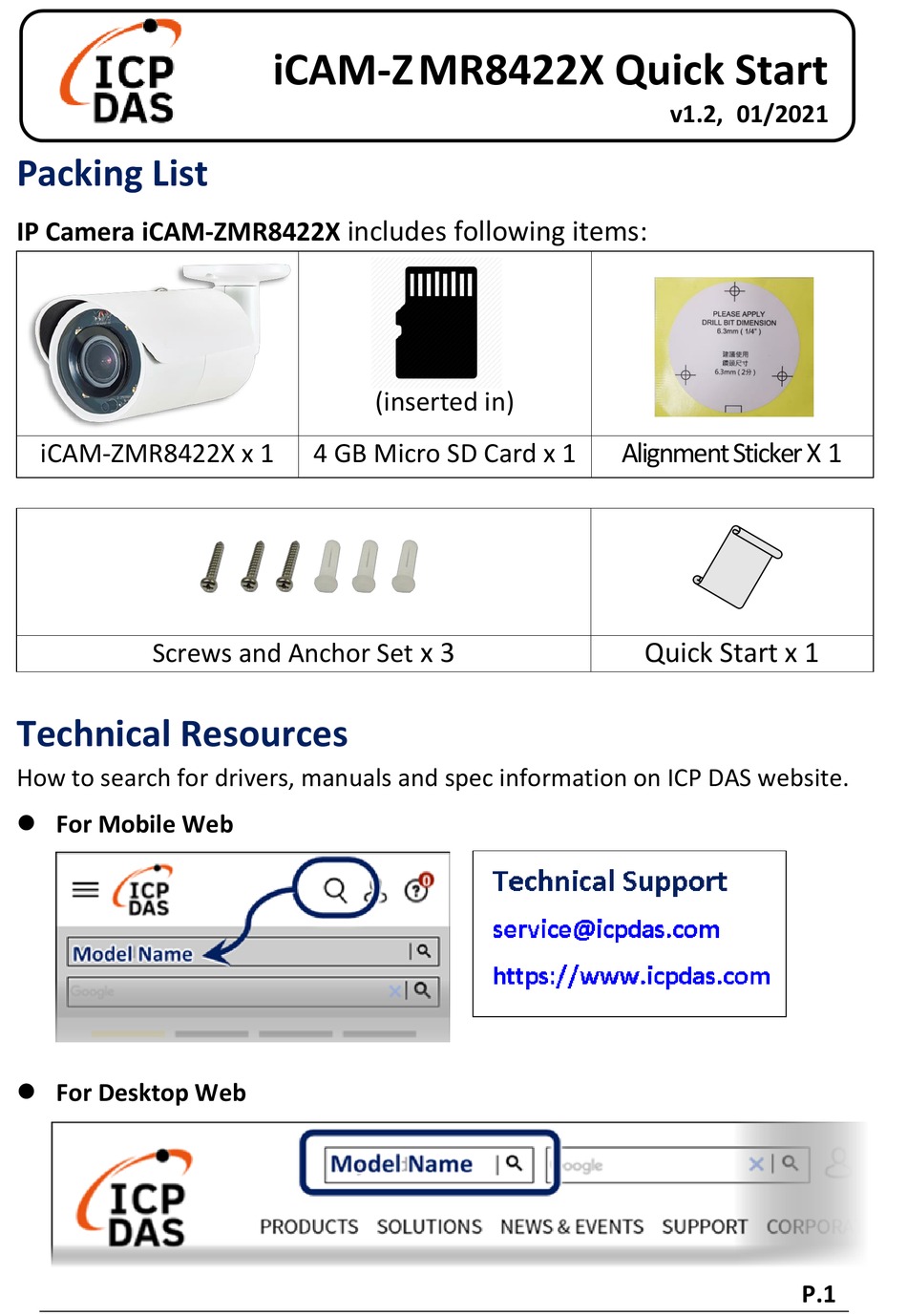

Packing List
includes following items:

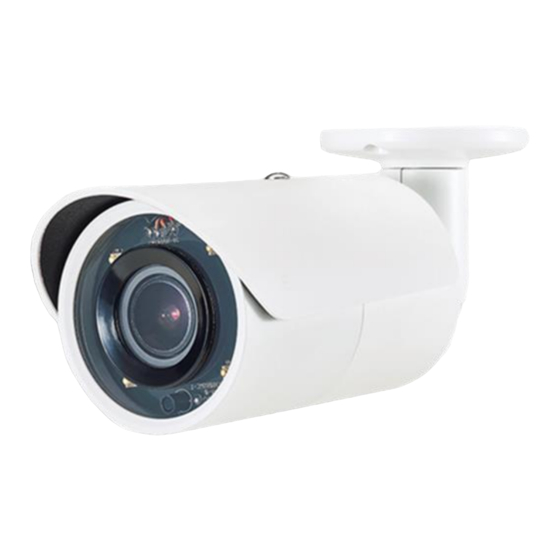

IP Camera iCAM-ZMR8422X
(inserted in)
iCAM-ZMR8422X x 1
4 GB Micro SD Card x 1
Alignment Sticker X 1
x 3
Quick Start x 1
Screws and Anchor Set
Technical Resources
How to search for drivers, manuals and spec information on ICP DAS website.
 For Mobile Web
 For Desktop Web
P.1
