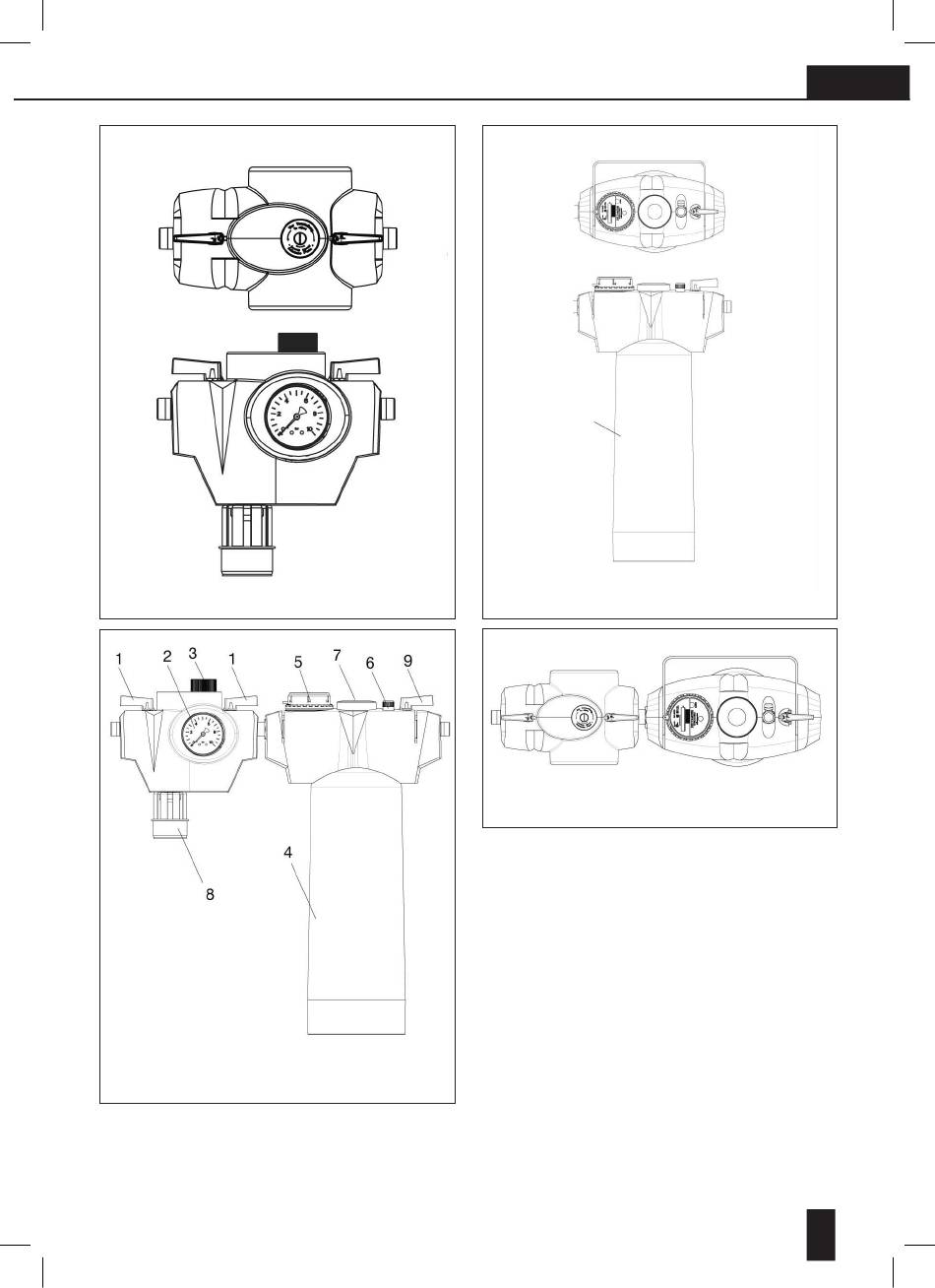

Fig. 1 AQA therm HFB-1717 BA

Fig. 3 AQA therm HFB-1717 BA &

AQA therm HES

3329_EBA_AQA therm HFB/HES NEU.indd 9

Optional:

AQA therm HRC

(softening)

AQA therm SRC

(desalination)

Fig. 2 AQA therm HES

Fig. 3.1

1 Ball valve

2 Manometer

3 Pressure regulator

4 Optional: AQA therm HRC or SRC

5 Water meter

6 Vent valve

7 Mixing device

8 Drain valve with pipe connection

9 Shut-off ball valve

29.02.12 10:34
