Summary of Contents for BWT Medo Connect Series

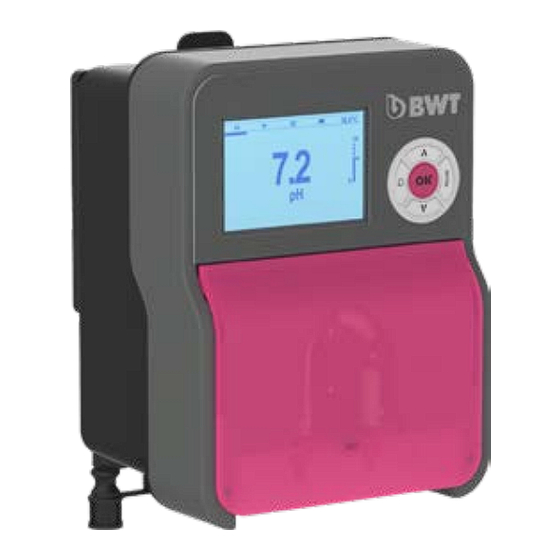

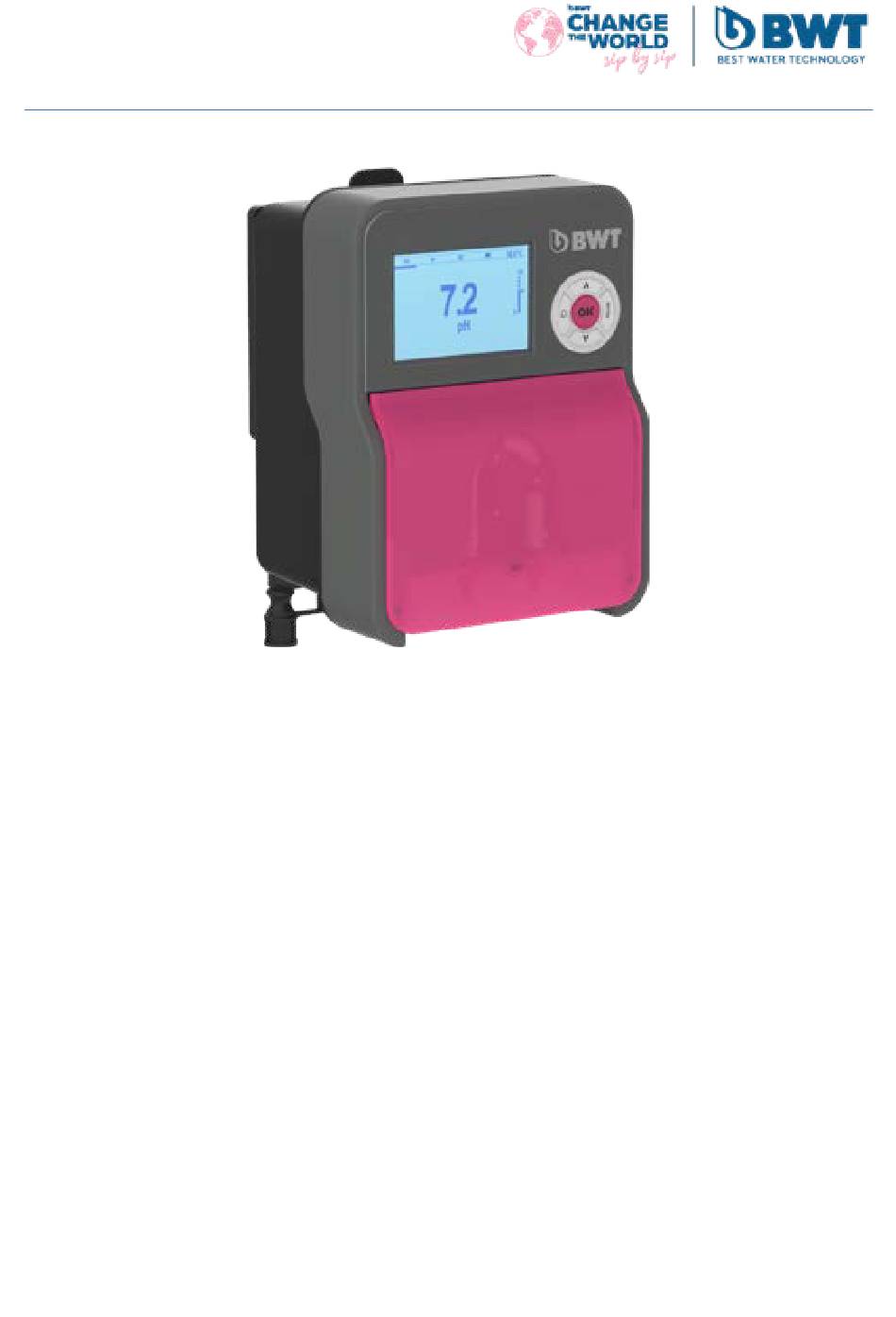

- Page 1 BWT Medo Connect BWT Medo Connect analysers/controllers for swimming pools...
-
Page 2: Table Of Contents
BWT Medo Connect CONTENTS 1 Important note on safety ..................4 2 General ........................5 2.1 Signs and symbols ........................... 5 2.2 Storage and Shipment ........................6 2.3 Warranty ............................6 3 Package content ....................7 3.1 Nameplate ............................9 3.2 Technical specifications ........................ - Page 3 BWT Medo Connect Alarm for the pH/Redox Set Point ..............39 Example of direct connection to the device ........... 40 Alarms ......................41 Maintenance ....................42 Storing the pump after use ................43 Default parameters ..................44 0000139212 rev. 1.1...
-
Page 4: Important Note On Safety
If the power cable is damaged, it must be replaced by the manufacturer or its authorised distributor. CAUTION The BWT Medo Connect cabinet must be positioned at a minimum distance from the pool basin specified by the regulations applicable at the place of installation. In France, this distance is 3.5 metres. However, if the power supply to the unit is specifically protected by a 30 mA residual current device, this distance can be reduced to 2.0 metres (volume 2 below). -
Page 5: General
The simplicity, user-friendliness and technicality of the BWT Medo Connect will guarantee you perfect control of the water quality of your pool. They are designed to regulate the pH, and the disinfectant level via the ORP, of water in private family pools... -
Page 6: Storage And Shipment
PROCOPI-BWT also grants a commercial guarantee, which can only be activated if the product has been stored, handled, installed, used and maintained in accordance with the recommendations in this manual. This product then benefits from the following BWT commercial guarantee as of the date of its initial invoicing by PROCOPI-BWT to the client company:... -
Page 7: Package Content
BWT Medo Connect 3 Package content Medo Connect pH Tapping saddle for securing PSS3 Reducer for onto 2” hose PVC Crystal 4x6 Polyethylene PSS3 probe- FPM Lip valve injection valve (1/2” M (φ=50mm) suction hose delivery hose holder (4 m) (5m) (1/2”... - Page 8 BWT Medo Connect Medo Connect ORP Tapping saddle for securing PSS3 Reducer for onto 2” hose PVC Crystal 4x6 Polyethylene PSS3 probe- FPM Lip valve injection valve (φ=50mm) suction hose delivery hose holder (4 m) (5m) (1/2” GAS) (3/8” GAS) (3pcs) (1/2”...
-
Page 9: Nameplate
BWT Medo Connect Nameplate Product model Maximum current values Product reference Casing protection class Power supply range Production date Serial Number EAC approval Pump characteristics Specifically recyclable product Manual download link CE approval In accordance with the EU Directive 2012/19/EU, this symbol indicates that electrical appliances may not be disposed of in household or industrial waste. -
Page 10: Technical Specifications
BWT Medo Connect Technical specifications Medo Connect Medo Connect Specifications Dimensions (H–W–D) H: 210 x W:163 x D:130 mm H: 210 x W:163 x D:130 mm Weight 1.85 kg 1.85 kg Pump state Pause – Supply Pause – Supply Probe calibration... -
Page 11: Wall Mounting Bracket Installation
BWT Medo Connect Wall mounting bracket installation Min distance 2m Main functions Main functions Function Feature(s) Description (s) Measurement/Control Scale for the pH function Measuring range: 0.00 to 14.0pH Channels Resolution: 0.1 pH Accuracy: 1% Scale for the Redox function Measurement range: -99 to 1000mV Resolution: 10mV. -
Page 12: Installation And Connections
Maintenance and repairs must only be carried out by authorised and specialised personnel. Choice of installation site To ensure the safety of users and the proper operation of your BWT Medo Connect, please observe the following guidelines for installation: The enclosure must be located at a distance from the pool in accordance with the regulations applicable at the installation site ... -
Page 13: Installation Of Tapping Saddles For Probes ("Free-Standing" Version) And Product Injections
BWT Medo Connect Installation of tapping saddles for probes ("free-standing" version) and product injections 4.3.1 Recommended for installation as a "free-standing" version: In order for the values measured by the probes to be as representative as possible of the water in the pool, the probes should be positioned between the pump discharge and the inlet to the filter's multi-way valve. -
Page 14: Procedure For Mounting The Tapping Saddles
BWT Medo Connect 4.3.2 Procedure for mounting the tapping saddles Screw Gasket Step 1 Step 2 Step 3 Apply the saddle on both Tighten both sides at the Once the saddle is sides of the piping in a same time to keep the... -
Page 15: Procedure For Mounting The Injection Kit
BWT Medo Connect 4.3.4 Procedure for mounting the injection kit Teflon tape Step 7 Step 8 Step 9 Apply Teflon to the threads of Screw the fitting onto the Tighten the injection valve on the fitting and the injection tapping saddle. -
Page 16: Procedure For Mounting The Suction Kit
BWT Medo Connect 4.3.5 Procedure for mounting the suction kit PVC hose (Transparent) Suction valve Step 17 Step 15 Step 16 Screw the PVC hose Unscrew the cap and pass Tighten the nut on the (transparent) cone the clear hose. -
Page 17: Procedure For Mounting Ph And/Or Redox Probes
BWT Medo Connect 4.3.6 Procedure for mounting pH and/or redox probes WARNING Probes are sensitive elements. They should be maintained and calibrated regularly using the calibration solutions supplied with the instrument. In the event of a defect, there is a potential risk of excess chemical injection, or sanitary degradation of the water quality. -
Page 18: Electrical Connections
BWT Medo Connect 5 Electrical connections Medo Connect Medo Connect Clamp Description Input Probe (BNC) Input Probe TEMP (PT100) TEMP (PT100) Level probe (product tank) pH Level probe Chlorine Level probe Flow check (Reed Sensor) Flow (REED sensor) Flow (REED sensor) -
Page 19: Changing The Internal Protection Fuses
BWT Medo Connect 6 Changing the internal protection fuses Fuse 0,5A T 5x20 mm size glass body Before opening the enclosure, switch off the mains supply! ELECTRICAL HAZARD 0000139212 rev. 1.1... -
Page 20: Commissioning / Electrical Connections
These voltages are usually supplied by the appliance and do not exceed 15V DC. CAUTION Electrical connection of the box BWT Medo Connect must be connected to the pool's filtration system. The CAD input "remote control" can be used to fulfil this condition. -
Page 21: Setting Program
BWT Medo Connect 7 Setting Program Keypad 1. Button to increase the value 2. Enter/confirm Button 3. Mode Button 4. Button to decrease the value 5. Esc Button Graphic Display 1. Navigation menu, press Mode button to select the items. -
Page 22: Info Menu
BWT Medo Connect Info Menu _Info_Menu________________ In View measure mode, press the ESC key to access the Info menu. ► -: Manual Download Select the item “Download Manual” and press the Enter key. 01/01 _Qr-Code__________________ On the screen will be displayed QR-Code with which you can start downloading the user manual in pdf format. -
Page 23: Calibration Menu
BWT Medo Connect Calibration Menu The Calibration menu consists of Two (2) items or sub-menus: Medo Connect pH _1______CALIBRATION________ A: pH probe B: Temperature probe ► A: pH B: Temperature 01/02 Medo Connect ORP A: Redox probe _1______CALIBRATION________ B: Temperature probe ►... -
Page 24: Setup Menu
BWT Medo Connect Setup Menu Use the MODE key to scroll through the icons on the status bar, from left to right, select the setup menu and confirm with the Enter key. _2______SETUP__________ The Setup menu consists of two (2) items or sub-menus: ►... -
Page 25: Ph Pump Menu
BWT Medo Connect pH Pump Menu _2A______pH_Pump_________ 2A1 SetPoint: Chemical value to maintain into the process 2A2 SetPoint Type: ► 1: SetPoint 7.40 pH PH-: the pump doses acid product to reduce pH value 2: SP Type Acid PH+: the pump doses alkaline product to increase pH value 3: OFA 00’... -
Page 26: Alarm Relay
BWT Medo Connect Alarm Relay _2F______Alarm_Relay_______ 2F Alarm Relay: Set function for: • ► □ OFF Alarm (OFA, Over range measure, Flow check, etc…) • ■ Alarm 01/02 7.10 Advanced Menu Use the MODE key to scroll through the icons on the status bar, from left to right, select the adv menu and confirm with the Enter key. -
Page 27: Language Menu And Display
BWT Medo Connect 7.10.1 3A Language menu and display _3A___LANGUAGE and DISPLAY__ The instrument automatically changes the language of the menu and returns to the previous level, menu 3. ► 1: Language 2: Display 01/02 _3A1_____LANGUAGE__________ ► ■ Français ( default □... -
Page 28: Password
BWT Medo Connect 7.10.2 3B Password It is possible to protect the settings by password value, moreover it is possible to enable or disable the Calibration and Setup menu to protect it by password. 3B1 Set Password: set the numeric value... -
Page 29: Settings
BWT Medo Connect 7.10.3 3C Settings _3C________Settings_________ 3C1 Temperature Measure to set manual value Temperature mode: PT100 sensor, or manual value Manual value: 25° (default) ► 1: Temp. Measure 2: Reed input N.Open 3C2 Reed Input: Set logic contact Reed 3: Pump Mode N.Open: normally open... - Page 30 BWT Medo Connect 3C1 Temperature Measure menu _3C1____Temp. Measure_____ Selection: Manual or automatic value By PT100 sensor • Manual value: please set fixed value • ► - Selection Manual - Manual 25°C 01/02 3C2 Reed Input: Set logic contact Reed _3C2___ADVANCED Features____ N.Open: normally open...
-
Page 31: System Reset Menu
BWT Medo Connect 3C6 Flow Delay: Set timer (range 0..60 minutes) timer= 0 minutes the function is disable _3C6______Flow Delay____ 3C7 Circulation pump: Enable or disable trigger input of circulation pump _3C7______Circulaion pump_____ ► □ OFF ■ ON 01/02 3C8 Pool size:... -
Page 32: Control Panel Menu
BWT Medo Connect 7.10.6 3F Control Panel menu _3F___ Control Panel___________ ► 1: Mesure input 2: Digital input 3: Compteurs 4: Outputs 01/02 3F1 Measure input: Enable/Disable third pump pH / ORP measure _3F1___Mesure Input___________ _3F1___Mesure Input___________ ► 1: pH probe 58,1 mV ►... -
Page 33: View Level
BWT Medo Connect 8 View Level Single parameter pH measure Single parameter ORP measure 0000139212 rev. 1.1... -
Page 34: Ph Calibration
BWT Medo Connect pH CALIBRATION 7 pH Set pH calibration 7 pH calibration 4 pH 4 pH calibration Save and Exit Note: If you have selected "1 point calibration", the calibration will only be performed in 1 point using the 7 pH... -
Page 35: Orp Calibration
BWT Medo Connect 10 ORP Calibration 465mV 465 mV calibration Set ORP calibration Save and Exit The controller gives you a quality probe in percentage value, thanks to this feedback to know the probe is good or not. Quality percentage value probe: 100%= Perfect, 75%= Good; 50%= Fair, 25%= no good... -
Page 36: Temperature Calibration
BWT Medo Connect 11 Temperature calibration CAL Reference CAL Reference 26°C 27°C The unit will flash a temperature value Set the temperature value measured with the instrument Ex. 27°C To calibrate the temperature probe, use a handheld portable controller 0000139212... -
Page 37: Proportional Dosing Pump (Twm: Time With Modulation) With Ofa
BWT Medo Connect 12 Proportional dosing pump (TWM: Time with modulation) with OFA _2A______PH_PUMP______________ Setting menu of pH dosing pump Setpoint, Type dosing and OFA is visible, but ► 1: SetPoint 7.20 pH the Period dosing and Proportional band 2: Type dosing Acid is hidden (red colour) of end user. -
Page 38: Proportional Dosing Pump (Twm: Time With Modulation)
BWT Medo Connect 13 Proportional dosing pump (TWM: Time with modulation) Setting menu of pH dosing pump _2A______PH_PUMP______________ Setpoint, Type dosing and OFA is visible, but the Period dosing and Proportional band is hidden (red colour) of end user. ► 1: SetPoint 7.20 pH... -
Page 39: Alarm For The Ph/Redox Set Point
BWT Medo Connect 14 Alarm for the pH/Redox Set Point When the alarm band is set, a work window is created. If the allowed limits are exceeded the alarm relay closes and remains closed until the measurement is reset or is pressed to deactivate the alarm. -
Page 40: Example Of Direct Connection To The Device
BWT Medo Connect 15 Example of direct connection to the device Connect your device to the WiFi network example: SSID: KommSPOT-6C96B4 Password:12345678 Use your browser and write this IP address: 192.168.3.1 Open the web page and set: User= ADMIN, Password= 0000... -
Page 41: Alarms
BWT Medo Connect 16 Alarms Alarm Display Actions to do Level_____7.2_pH - Push to open Alarm Relay Level_____750_mv Level - Restore Product tank - Replace or check the measure probe - Push to open Alarm Relay Alr_band Out of Range measure... -
Page 42: Maintenance
BWT Medo Connect 17 Maintenance Hose replacement: Open the pump’s lid and release the Position the roller as shown in the Completely release left hose by pulling the left connector Figure, turning it in the direction of connector, holding it taut towards upward. -
Page 43: Storing The Pump After Use
BWT Medo Connect 18 Storing the pump after use When the regulation device must be stored, clean water should be pumped through the hose in order to rinse it. Then position the roller as shown in the Figure, turning in the direction indicated by the circular arrow. -
Page 44: Default Parameters
BWT Medo Connect 19 Default parameters • Language = French • Set Point value = 7.4 pH; 700 mV; • Dosing method = Acid ; Low (pH) (Redox) • OFA Time = OFF • Calibration = Full • Flow Input= NC (normally close) •...
