Tentandtable.com 40 Hex Assembly Instructions Manual page 2

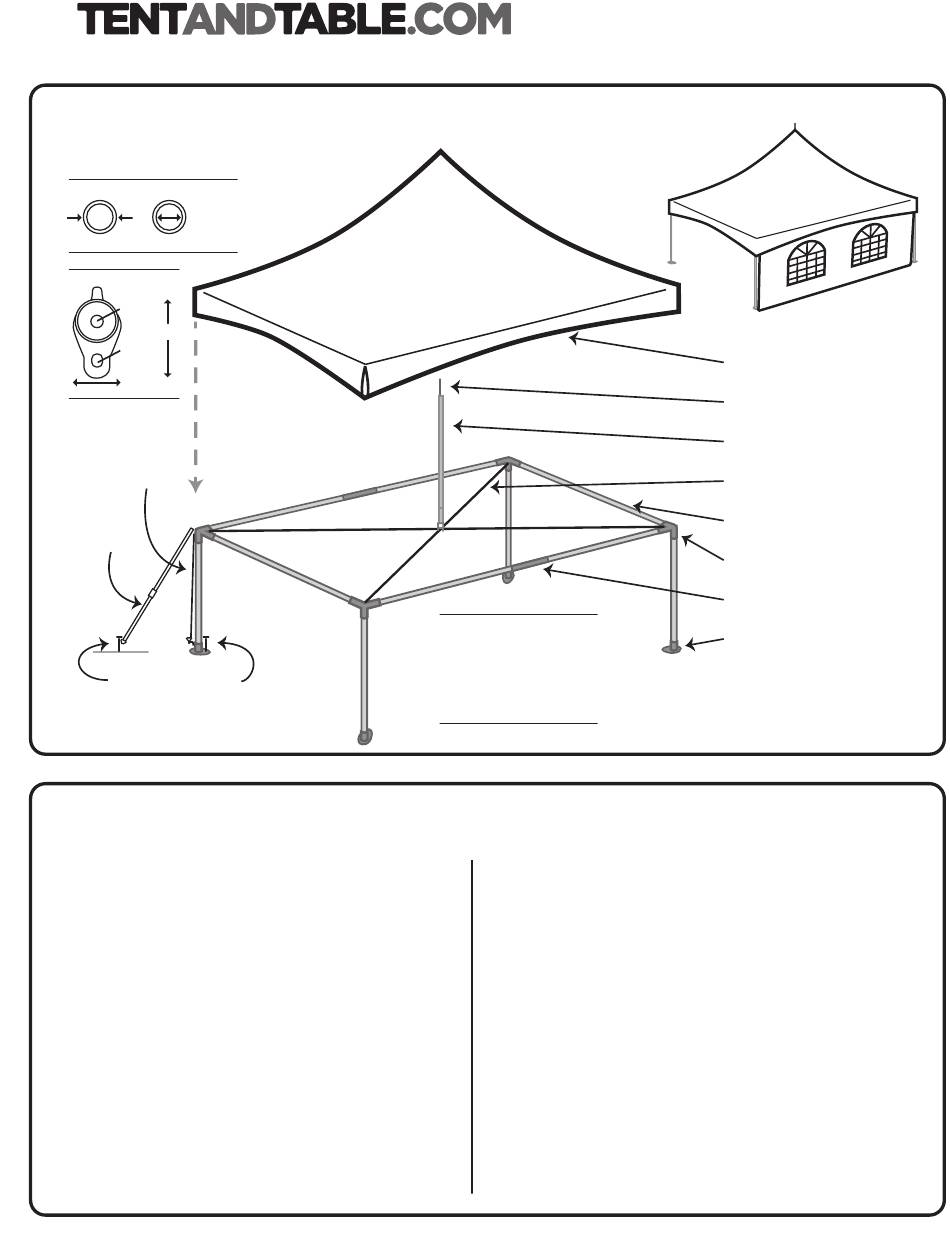

High Peak Frame Tent (OVERVIEW)
Pole and Bar Diameter:
2.5˝O.D. 2.25˝I.D.
Base Plate Dims:
1˝x 1˝
5.75˝
.875˝x 1˝
4˝
Ratchet Rope
1 in. Ratchet
Strap
Anchoring Stakes
High Peak Frame Tent (SPECIFICATIONS: 40 Hex)
Width
Length
Area
Eave Height
Overall Height
Pitch
Complete Weight
Series
Class
Center Pole
Style / Shape
Expandable
Custom Printing
Available
40 ft. / 9.1m
40 ft. / 7.6m
900 ft² / 83.2m²
9' / 2.7m
20' 5" / 6.2m
11' 5" / 3.5m
326 Lbs. / 148 Kg.
High Peak/Prestige
Cross Cable
No
High Peak Frame Tent
No
Yes
716 832-TENT (
Recommended Tools:
• hard hat
• sledge hammer
• tape measure
• work boots
• 6 ft ladder
Fabric Material
Fabric Material Weight
Fabric Translucency
Water Repellency
Flame Resistant
UV Resistant
Mold and Mildew
Resistant
Frame / Pole Material
Longest Component
Persons required for setup 3
Occupancy
Occupancy (cont.)
8368 )
Sidewalls
(optional)
Canopy
Center Mast Pole Pin
Center Mast
Cross Cable
Spreader Bar
Corner Fitting
Spreader Insert
Base Plate
(example, not size specific)
PVC Coated Polyester
16 oz. / yd2 / 540 gsm
Block-out
Waterproof
Yes
Yes
Yes
Aluminum
9'3" / 2.8m
80 Sit Down Dinner
120 Cathedral Seating
1
