Tentandtable.com 716 832-TENT Assembly Instructions

Assembly
Instructions
FRAME TENT
JACK
´
(12 Steel Reinforced)

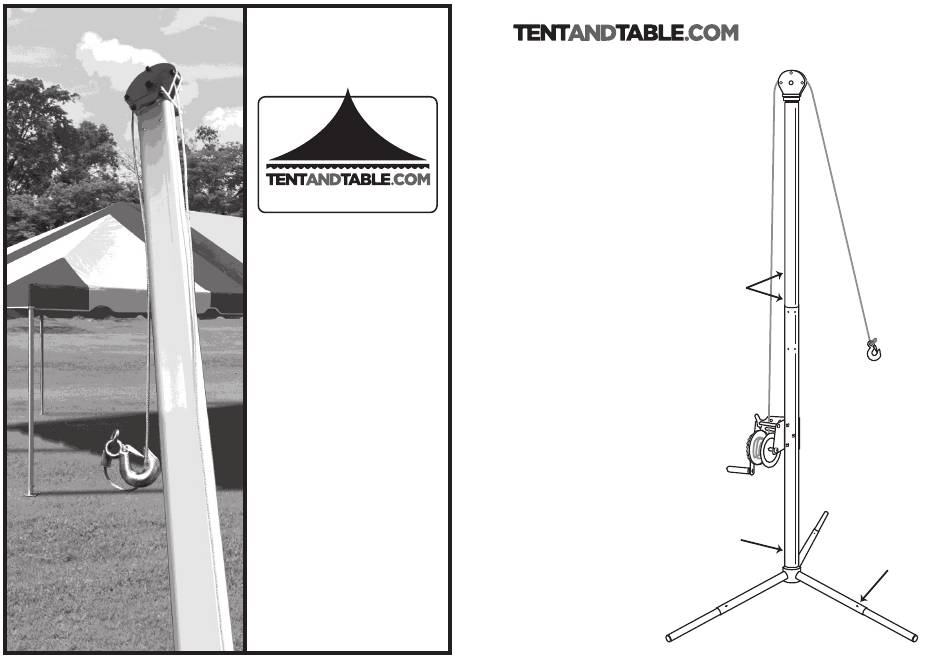

Frame Tent Jack Overview

Save time and labor when installing
any kind of tent frame with this frame
tent jack. This portable and durable
jack will take some of the time and
energy out of installing a frame tent
and increase the productivity of your
setup team. Once you have assembled
the top of your tent frame, use the
frame tent jack to hold up your frame
while you attach the legs during set up
or remove the legs during tear down.
This frame tent jack makes it possible
for a single person to set up a
R-PIN HOLES
frame tent by lifting up one
corner at a time. This item can be
used with both our High Peak Frame
Tents, as well as our West Coast Frame
Tents.
Our frame tent jack features an easy to
crank handle for smooth turning
radius. The unit can lift a frame more
than 10 feet high and has a maximum
load capacity of 1,200 lbs.
We recommend that, approximately
one jack is used per perimeter fitting
on the length of the tent.
R-PIN HOLE
716 832-TENT ( 8368 )
R-PIN HOLES
1
