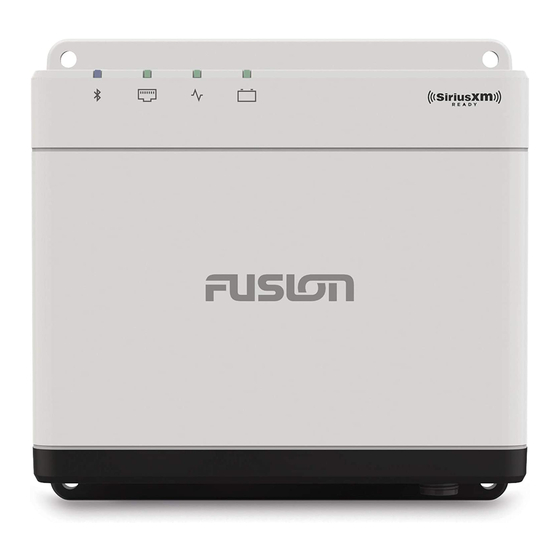

MS-WB670 Installation Instructions
™
Important Safety Information
WARNING
Failure to follow these warnings and cautions could result in personal injury, damage to the vessel, or poor
product performance.
See the Important Safety and Product Information guide in the product box for product warnings and other
important information.
This device must be installed according to these instructions.
Disconnect the vessel's power supply before beginning to install this product.
Before applying power to this product, make sure it has been correctly grounded according to these
instructions.
CAUTION
To avoid possible personal injury, always wear safety goggles, ear protection, and a dust mask when drilling,
cutting, or sanding.
NOTICE
When drilling or cutting, always check what is on the opposite side of the surface to avoid damaging the vessel.
Do not use the stereo as a template when drilling the mounting holes because this may damage the glass
display and void the warranty. You must only use the included template to correctly drill the mounting holes.
You must read all installation instructions before beginning the installation. If you experience difficulty during
the installation, contact Fusion
®
Product Support.
What's In the Box
• Four 8-gauge, self-tapping screws
• Power and speaker wiring harness
• Auxiliary-in, line-out, and subwoofer-out wiring harnesses
• NMEA 2000
drop cable
®
Tools Needed
• Phillips screwdriver
• Electric drill
• Drill bit (size varies based on surface material and screws used)
July 2021
GUID-8C70CFD3-EDC8-4EBB-A918-4E35F150BD99 v4
Advertisement
Table of Contents
Related Manuals for Garmin Fusion Apollo MS-WB670
Summary of Contents for Garmin Fusion Apollo MS-WB670
- Page 1 Apollo MS-WB670 Installation Instructions ™ Important Safety Information WARNING Failure to follow these warnings and cautions could result in personal injury, damage to the vessel, or poor product performance. See the Important Safety and Product Information guide in the product box for product warnings and other important information.
-
Page 2: Mounting Considerations
Mounting Considerations CAUTION In high ambient temperatures and after extended use, the device enclosure may reach temperatures deemed dangerous to touch. As a result, the unit must be installed in a location where it cannot be touched during operation. NOTICE This device should be mounted in a location that is not exposed to extreme temperatures or conditions. -
Page 3: Port Identification
Port Identification Item Description Connects the stereo to the wiring harness for zone 3. Connects the stereo to the wiring harness for auxiliary input 1, and for the line and subwoofer outputs for zones 1 and 2. Connects the stereo to the power and speaker wiring harness. FUSE Contains the 15 A fuse for the device. - Page 4 Wiring Harness Wire and Connector Identification Bare Wire Color Wire or RCA Connector or RCA Label Notes Function Name Connects to the power source (Power Connection, Ground (-) Black page Connects to the power source (Power Connection, Power (+) Yellow page Connects to the power source (Power Connection,...
- Page 5 Bare Wire Color Wire or RCA Connector or RCA Label Notes Function Name ZONE 1 SUB Each subwoofer cable provides a single mono output to a Zone 1 subwoofer out powered subwoofer or subwoofer amplifier. Provides output to an external amplifier, and is associated Zone 2 line out (left) ZONE 2 with the volume control for zone 2.
-
Page 6: Power Connection
Power Connection When connecting the stereo to power, you must connect the yellow, red, and black wires to the power source. The yellow and red wires have different functions, and the method you use to connect them to power depends on how you plan to use the stereo on your vessel. - Page 7 Connecting to Power Without Using an Ignition Switch This method of connection is used most often on larger vessels and on vessels with multiple networked stereos and other marine devices. For these installations, a faster startup time is typically less critical, and it is more effective to use the breaker or a dedicated switch on the electrical panel to turn off the stereo and ensure that no unexpected power drain occurs.
- Page 8 Connecting to Power Through an Ignition Switch This method of connection is used most often on ski boats, wake boats, and similar sport or recreational vessels where power to the engines is toggled often. For these installations, a quick standby and faster startup time is desired so that music can be stopped and begin playing again as quickly as possible after restarting the engines.
-
Page 9: Speaker Zones
Speaker Zones You can group speakers in one area into a speaker zone. This enables you to control the audio level of the zones individually. For example, you could make the audio quieter in the cabin and louder on deck. Up to two pairs of speakers can be connected per channel of each zone, in parallel. - Page 10 Speaker System Wiring Using a Line Out This diagram illustrates a system installation with an external amplifier and subwoofer connected to zone 2 on the stereo using a line out. You can connect an amplifier and subwoofer to any or all of the available zones on the stereo.
- Page 11 NMEA 2000 System Wiring Diagram Stereo Supported chartplotter, MFD, or compatible Fusion NMEA 2000 remote control NMEA 2000 GPS antenna, speed sensor, or wind instrument. When the stereo is connected to the same NMEA 2000 network as a compatible engine, a GPS antenna, a chartplotter with a built-in GPS antenna, a wind instrument, or a water speed sensor, it can be config...
-
Page 12: Fusion Partybus Networking
Fusion PartyBus Networking The Fusion PartyBus networking feature allows you to connect multiple compatible stereos together on a network, using a combination of wired or wireless connections. You can group a compatible stereo, such as the Apollo WB670 stereo, with other compatible stereos connected to the network. -
Page 13: Constructing A Network
Wired Network Example with a Switch or Router You must use wired network switches, a wired network router, or both to connect more than two Fusion PartyBus devices. No network setting changes are needed when connecting multiple Fusion PartyBus devices using a switch, but if you are using a router, you may need to configure it to be a DHCP server. -
Page 14: Network Configuration
Marine Network ® You can connect this stereo to a Garmin Marine Network in order to view and control the stereo using a compatible Garmin chartplotter. NOTE: When you configure the stereo for use with a Garmin Marine Network, you are limited to using only Garmin and Fusion devices. - Page 15 Stereo Information Specifications Weight 475 g (16.75 oz.) Water rating IEC 60529 IPX2 Operating temperature range From 0 to 50°C (from 32 to 122°F) Storage temperature range From -20 to 70°C (from -4 to 158°F) Input voltage From 10.8 to 16 Vdc Current (max.) 15 A Current (muted)
-
Page 16: Stereo Dimension Drawings
107 mm (4.21 in.) 55 mm (2.17 in.) 130 mm (5.10 in.) Top Dimensions 130 mm (5.10 in.) 130 mm (5.10 in.) Software Updates Go to support.garmin.com to find software updates and information for your device. Apollo MS-WB670 Installation Instructions... - Page 17 八） 微功率设备使用时温度 0–50℃ 和电压 10.8–16 Vdc 。 © 2020 Garmin Ltd. or its subsidiaries Garmin , ANT , Fusion , and the Fusion logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. Apollo , Fusion-Link , and ® ®...
