Commercial Electric 5028 Installation Manual

PACKAGE CONTENTS

(1) Flexible Opening Cable Wall Plate
(2) Phillips head screws
For video information visit homedepot.com, search SKU 152354, 167974, 169089, or model number 5028

Installation

1

PREPARING THE INSTALL LOCATION

□
Use a drywall saw (not included) and the included template
to cut a hole in your install location. Then route your cables
through the opening in the wall.
3

INSTALLING THE PLATE

□
Secure the Plate to the wall using a #2 Phillips head screwdriver
to tighten the attached screws with wings. TIGHTEN BY HAND
WITH SCREWDRIVER AND DO NOT OVER-TIGHTEN THE SCREWS.
ETL LISTED
CONFORMS TO
UL STD. 1863
CERTIFIED TO
3026001
CAN/CSA STD. C22.2#182.4

TOOLS NEEDED*

# 2 Phillips head screwdriver
Drywall Saw
Pencil
*The use of power tools is not recommended
2
□
4
□
RoHS Compliant
This product is patent protected by
U.S. Patent number: 7495171
Item # 152354, 167974, 169089
Installation Guide

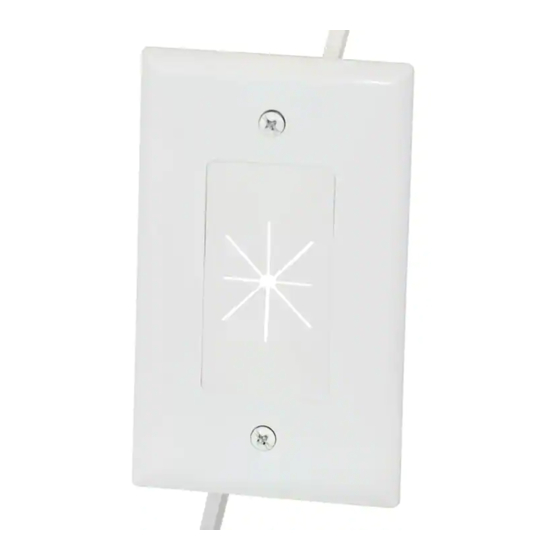

Flexible Opening Cable Wall Plate
Scan Me

ROUTING THE CABLES

Route your low voltage cables through the opening in the back
of the Flexible Opening Cable Wall Plate and out through the
front of the Plate.

INSTALLATION COMPLETE

Installation is complete. You can now connect your home theater
devices and equipment.
Model #5028
Rev. 01/29/2019
