PACKAGE CONTENTS
1 Flexible Opening Cable Wall Plate
Installation
1
PREPARING THE INSTALL LOCATION
□
Use a drywall saw or utility knife (not included) and the included
Template to cut a hole in your install location. Then route your
cables through the opening in the wall.
3
INSTALLING THE PLATE
□
Secure the Plate to the wall using a #2 Phillips head screwdriver
to tighten the attached screws with wings. TIGHTEN BY HAND
WITH SCREWDRIVER AND DO NOT OVER-TIGHTEN THE SCREWS.
RoHS Compliant
This product is patent protected by
U.S. Patent number: 7495171
TOOLS NEEDED
Drywall Saw or Utility Knife
#2 Phillips head screwdriver
* The use of power tools is not recommended.
2
□
4
□
Item # 152354, 167974, 169089
Installation Guide

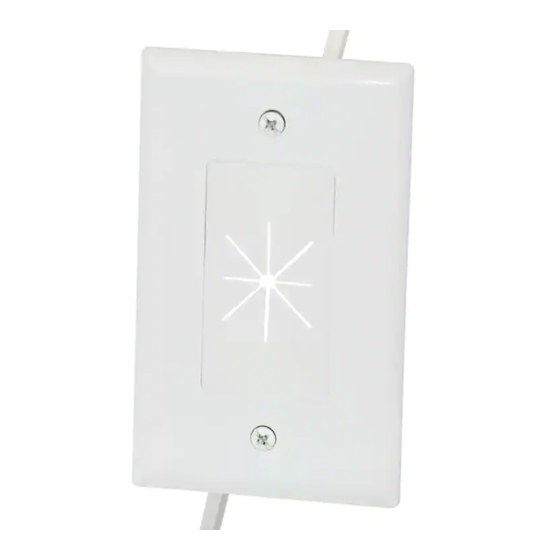

Flexible Opening Cable Wall Plate
ROUTING THE CABLES
Route your low voltage cables through the opening in the back
of the Flexible Opening Cable Wall Plate and out through the
front of the Plate.
INSTALLATION COMPLETE
Installation is complete. You can now connect your home theater
devices and equipment.
Model #5028
