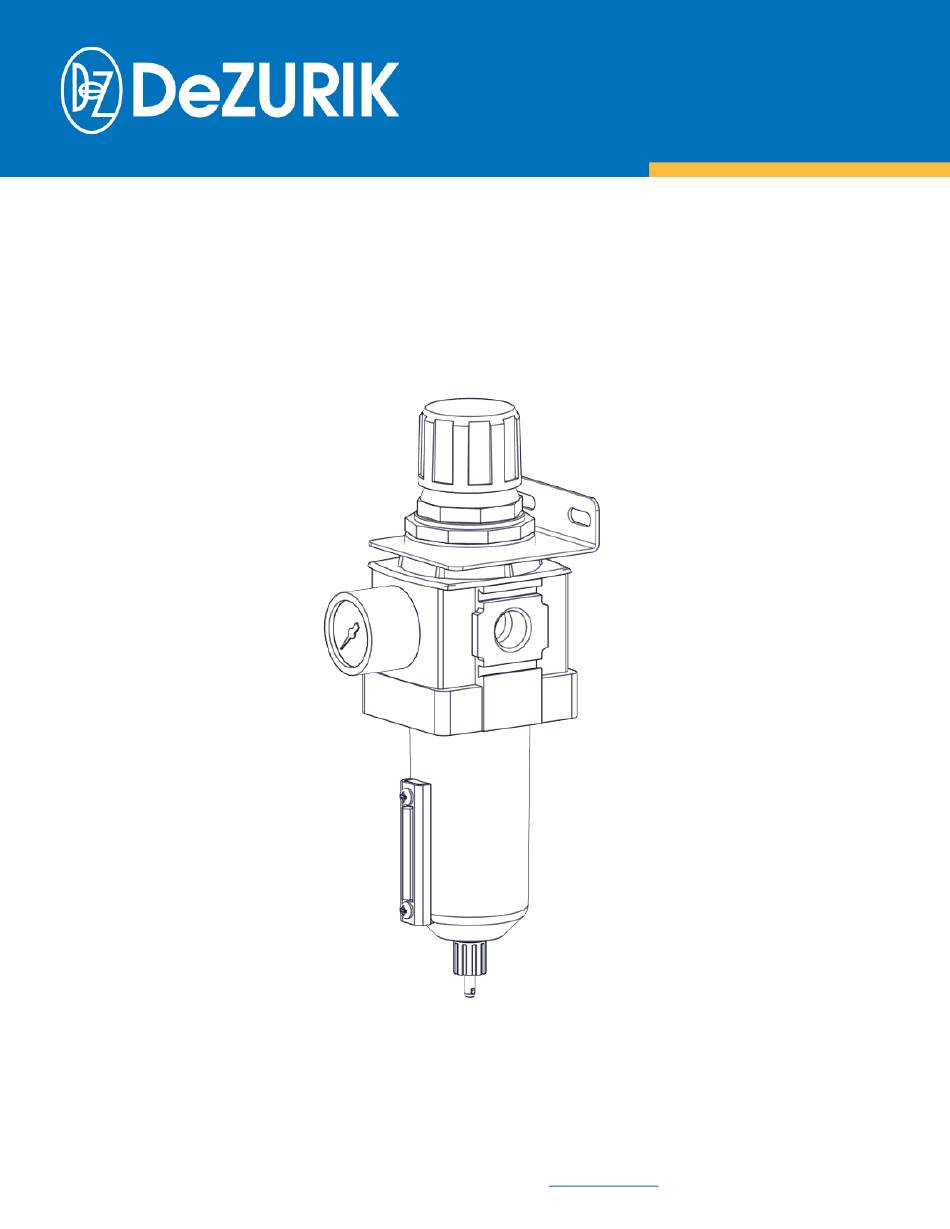

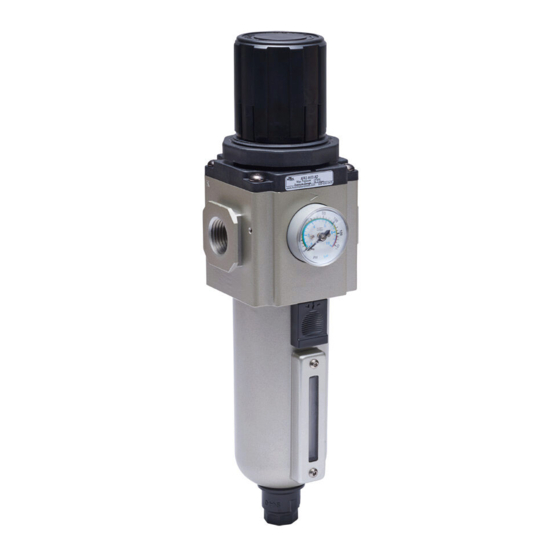

- Page 1 AFR3 Filter Regulator Used on Pneumatic Cylinder Actuators D11033 Instruction August 2013 DeZURIK, Inc. Sartell, Minnesota USA | Phone: 320-259-2000 | www.dezurik.com | info@dezurik.com...
- Page 2 Handle valves which have been removed from service with the as- sumption of process material within the valve. Inspection Your AFR3 has been packaged to provide protection during shipment. Carefully inspect the unit for damage upon arrival and file a claim with the carrier if damage is apparent. Parts Recommended spare parts are listed on the assembly drawing.
- Page 3 AFR3 Filter Regulator used on Pneumatic Cylinder Actuators Description The AFR3 Filter Regulator allows air pressure to be adjusted to match the requirements of the actua- tor (see the documentation envelope or IOM package supplied with your hardware for proper pressure settings).
- Page 4 DeZURIK AFR3 Filter Regulator used on Pneumatic Cylinder Actuators Maintenance WARNING! Failure or improper selection or improper use of the products and/or systems described herein or related items can cause death, personal injury and property damage. Depressurize both upstream and downstream pressure.
- Page 5 DeZURIK AFR3 Filter Regulator used on Pneumatic Cylinder Actuators Maintenance continued 4. Liquid level in the bowl must be kept below the level indicator line as marked. It is recommended practice to drain a unit equipped with the manual drain at least once during an eight (8) hour pe- riod.
- Page 6 If you use metric fasteners with ASME Class 150/300 bolt holes and flange bolt patterns, you do so at your sole risk and any liability associated with such use shall not be the responsibility of DeZURIK, Inc. In addition to the foregoing, DeZURIK’s Manufacturer’s Conditions apply.
