DeZurik KSL Manual

Actuator for slurry valves
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

MANUAL ACTUATOR FOR
KSL SLURRY VALVES
D11041
Instruction
July 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DeZurik KSL

Summary of Contents for DeZurik KSL

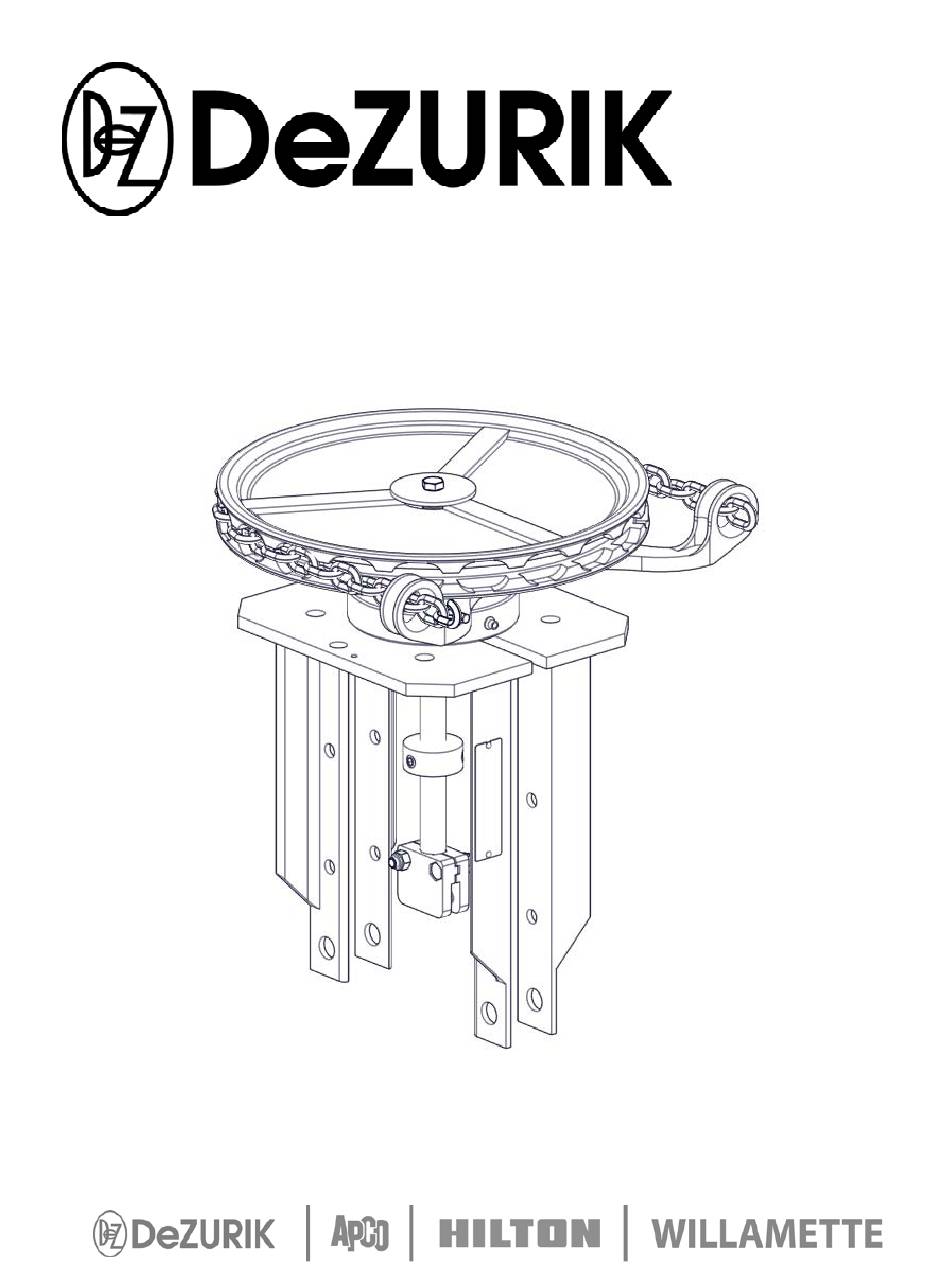

  • Page 1 MANUAL ACTUATOR FOR KSL SLURRY VALVES D11041 Instruction July 2015...

  • Page 2: Dezurik Service

    Recommended spare parts are listed on the assembly drawing. These parts should be stocked to minimize downtime. Order parts from your DeZURIK sales representative, or directly from DeZURIK. When ordering parts, please include the 7-digit part number and 4-digit revision number (example: 9999999R000)

  • Page 3: Operation

    Mounting Handwheel on 2-6” Valves 2–6" Valves—See Figure 2 Two coiled spring pins (B18) provided by DeZURIK are used to connect the handwheel (B11) to the yoke sleeve (B3). The use of any other type of pin will result in actuator failure.
  • Page 4 Mounting Chainwheel on 2-6” Valves 2–6” Valves—See Figure 2 Two coiled spring pins (B18) provided by DeZURIK are used to connect the chainwheel (B12) to the yoke sleeve (B3). The use of any other type of pin will result in actuator failure.
  • Page 5 DeZURIK Manual Actuator for KSL Slurry Valves Mounting Handwheel or Chainwheel on 8-10” Valves 8-10” Valves—See Figure 3 1. Rotate the yoke sleeve (B3) until the flange on the yoke sleeve touches the adaptor plate (B2). 2. Place the thrust washer(B4) over the yoke sleeve (B3).
  • Page 6 DeZURIK Manual Actuator for KSL Slurry Valves Figure 2—2-6” Handlwheel & Chainwheel Mounting Configuration Leg Fab Grease Fitting Adaptor Plate Yoke Sleeve Thrust Bearing Screw Wave Washer Screw Stem Lockwasher Clip Setscrew Stop Collar Setscrew (Dogpoint) (MN-CW ONLY) Data Plate...
  • Page 7 DeZURIK Manual Actuator for KSL Slurry Valves Figure 3—8-10” Handlwheel & Chainwheel Mounting Configuration Leg Fab Grease Fitting Adaptor Plate Yoke Sleeve Screw Thrust Washer Screw Sleeve Nut Lockwasher Stem Setscrew Clip Setscrew Stop Collar Data Plate Locknut Rivet Lockout Pin (LK MN-HD ONLY)
